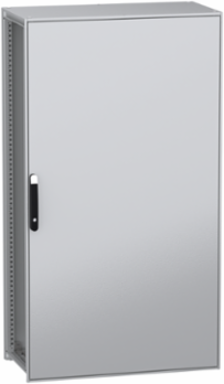

Schneider Electric NSYSFN181050 Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800x1000x500mm, IP55
Schneider Electric NSYSFN181050 Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800x1000x500mm, IP55
- MPN: NSYSFN181050
- PPN: SCH-NSYSFN181050
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3434.28/ EA
Description

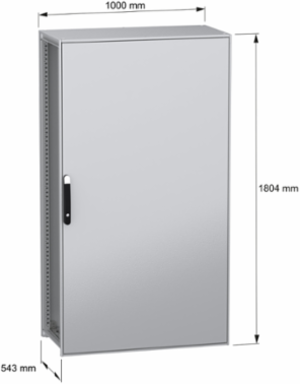

Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800x1000x500mm, IP55
Specifications
Environment
- Ik Degree Of Protection
- IK10 IEC 62262
- Standards
- IEC 62208
Nema Degree Of ProtectionNEMA 3R/12
Ip Degree Of ProtectionIP55 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2301018_V1
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Complementary
- Accessibility For Operation
- rear || front || sides of enclosure
- Type Of Gland Plate
- without gland plate
- Surface Finish
- epoxy-polyester powder
- Door Type
- plain front
- Structure Type
- formed from a single section || panels and doors built into the structure || perforated structure with a pitch of 25 mm || vertical uprights joined with top and bottom frames
- Door Opening Side
- reversible 120 °)
- Number Of Doors
- front 1

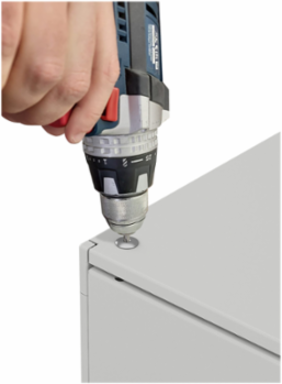

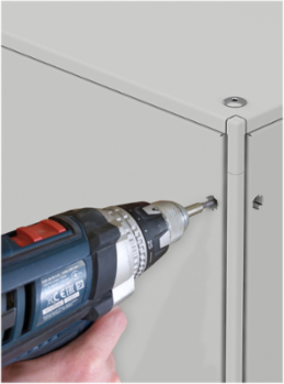

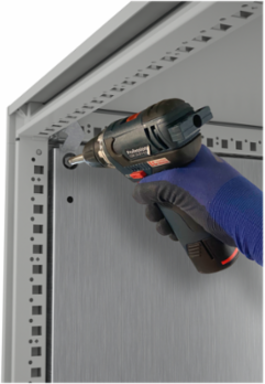

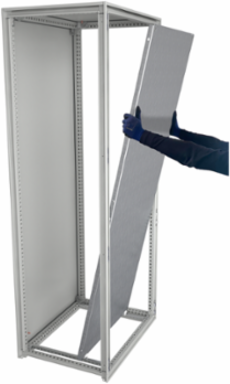

Removable Partsdoor by screws hinge || rear panel by screws || roof by screws || mounting plate bracket by screws || sliding rail by screws
Materialframe galvanised steel || uprights galvanised steel || door sheet steel || panels sheet steel || hinge zamak || handle polyamide 6 with 30 % fibre glass
Colourenclosure grey RAL 7035) || handle black RAL 9005)
Lock Type4 points lock, handle with 5 mm double bar insert front door
Net Weight54.4 kg
Mounting Plate Descriptionwithout mounting plate
Specifications
- Enclosure Mounting
- floor-standing
- Product Name
- PanelSeT SFN
- Enclosure Nominal Height
- 1800 mm
- Device Application
- multi-purpose
- Range
- PanelSeT
Product Or Component Typesuitable enclosure

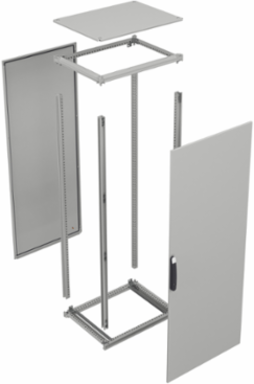

Device Composition2 sliding rails || 4 mounting plate quick-fixing brackets || 1 structure || 1 door || 1 locking system with handle door || 1 rear panel || 1 roof
Enclosure Nominal Depth500 mm
Enclosure Nominal Width1000 mm
