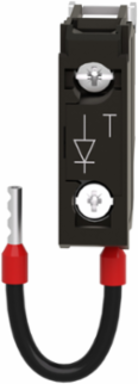

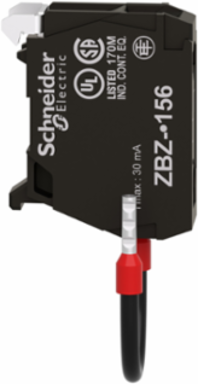

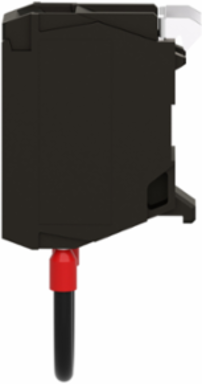

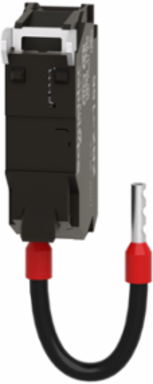

Schneider Electric ZBZG156 Harmony XB4 Single Light Block, 12-24V AC/DC, IP20 Protection, -25 to 70 °C
- MPN: ZBZG156
- PPN: SCH-ZBZG156
CAD
$21.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony ZB, single light block for test light function has 1 connecting wire. It is supplied with 12V AC/DC. It is compatible with Harmony XB4 and XB5. This single light block allows fast and easy replacement and configuration of your signaling units for light testing purpose. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4 || Harmony XB5
- Electrical Connection
- 1 wire
- Product Compatibility
- integral LED || BA 9s
Light Block Typesingle block for test light function
Product Or Component Typeblock for test light
[Us] Rated Supply Voltage12 V AC/DC || 24 V AC/DC || 24...120 V AC/DC
Complementary
- Electrical Shock Protection Class
- class I Harmony XB4 IEC 60536 || class II Harmony XB5 IEC 60536
- Net Weight
- 0.01 kg
Materialplastic
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || UL listed || DNV || BV || CSA || GL
- Ambient Air Temperature For Storage
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms IEC 60068-2-27 || 50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Operation-25-70 °C
StandardsUL 508 || IEC 60947-5-5 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
