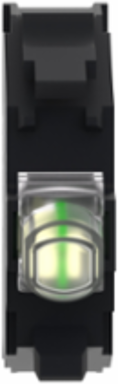

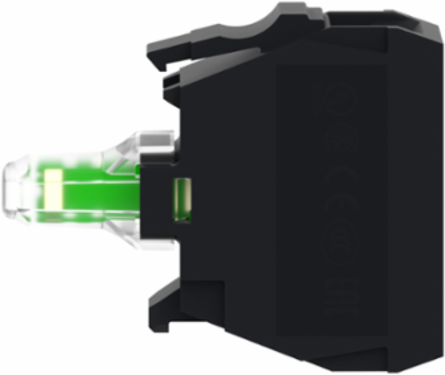

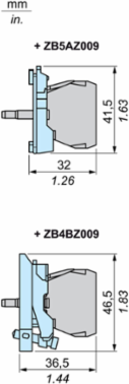

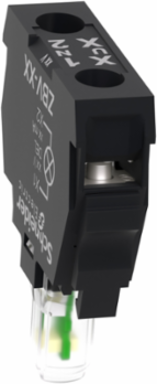

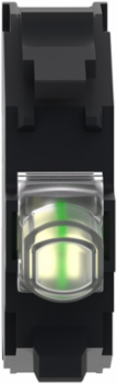

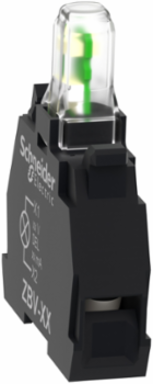

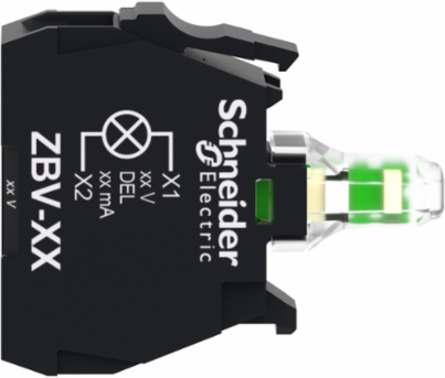

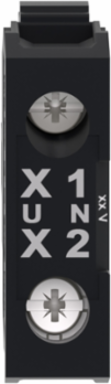

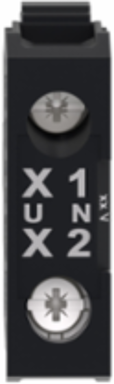

Schneider Electric ZBVM1 Harmony XB4/B5 Light Block with Universal LED, 230-240V AC, IP20, -40 to 70 C
- MPN: ZBVM1
- PPN: SCH-ZBVM1
CAD
$51.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

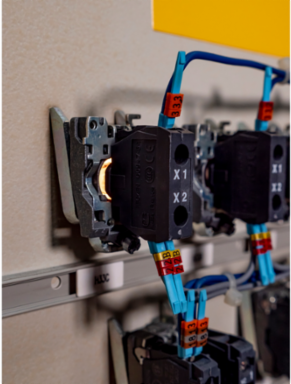

This Harmony ZB, white light block operates with a universal LED. It is supplied with 230V to 240V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Features
- The Schneider Electric ZBVM1 is a high-performance LED light block from the Harmony XB5 (plastic) and XB4 (metal) 22mm ranges. It provides the illumination source for pilot lights and illuminated push buttons. By using an integrated LED rather than a replaceable bulb, it offers superior vibration resistance and an incredibly long service life, making it a "set-and-forget" solution for Canadian industrial panels.
- This specific block features a White LED. Because the color of the signal is typically determined by the plastic lens cap (the "head"), a white LED block is the most versatile choice. It can be paired with Green, Red, Amber, Blue, or Clear heads, allowing Canadian distributors and contractors to simplify their inventory by stocking one universal light block.
- The ZBVM1 is designed to operate on 230V to 240V AC (50/60Hz). While 24V and 120V are common in North American automation, the 240V AC block is frequently used in Canadian pump stations, HVAC systems, and irrigation controls where the control voltage is tapped directly from a single phase of a 208V or 240V power source.
- Despite its high brightness, the ZBVM1 draws very little current (typically less than 20mA). This low power consumption prevents "ghosting" or accidental activation caused by induced voltage in long cable runs a common headache for electricians working in large Canadian manufacturing plants or warehouses.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Physical Attributes
| Light Source Color | white, white |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Composition Code | M1, M2, M3, M4, M5, M6, M10, MF1, P1, P2, PF1 |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Light Source Color | white, white |
| [Us] Rated Supply Voltage | AC 50/60 Hz, 230...240 V |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0194995185 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.1590032103 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 30 % |
| Compatibility Code | ZBV |
| Device Short Name | ZBV |
| Light Block Supply | direct |
| Mounting Of Block | front mounting |
| Product Or Component Type | light block |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Sale Per Indivisible Quantity | 5 |
| Software Version | v5.9.4 |
| Supply Voltage Limits | 195-264 V AC |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2302007EN |
| Pep Verification Date | 2023-04-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 15 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809051 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | Harmony XB4, Harmony XB5 |
| Signalling Type | steady, steady |
| Certificate Agency | CSA, UL Listed |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0059363563, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0136069583, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 37 kg CO2 eq., 36.7680219298 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2302007EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 10 % |
| Bulb Base | integral LED |
| Current Consumption | 19 mA |
| Electromagnetic Emission | class B IEC 55011 |
| Light Source | universal LED |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2 |
| Returnability | Yes |
| Service Life | 100000 h at rated voltage and 25 °C |
| Supply Voltage | 230...240 V |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 37 kg CO2 eq. |
| Connections Terminals 8 Connections Terminals | screw clamp terminals |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Light blocks that attach to the back of a push button and serve as an indicator light. When the push button is pressed, the light blocks turn on and illuminate through the button head with a 30% utilisation rate and power consumption is 4.56W, and the product has a life of 10 years while adhering to standards IEC 61000-4-5 and IEC 60947-5-5. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 84.6216 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS |
| Connections - Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Package Weight(Lbs) | 10.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2302007EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-04-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 10 % |
| Carbon Footprint | 36.9660679732 |
| Environmental Disclosure | ENVPEP2302007EN |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2302007EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Harmony XB4, Harmony XB5 |
|---|
| Product Or Component Type | light block |
|---|
ETIM
| ETIM 8 | EC000204 |
|---|
| ETIM 9 | EC000204 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
