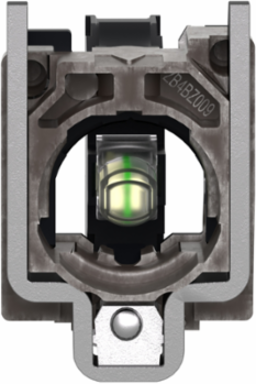

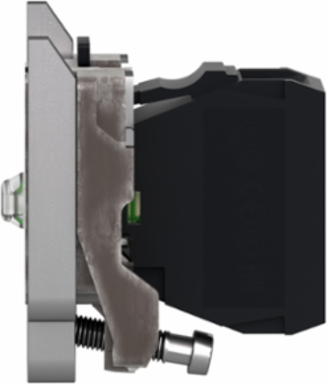

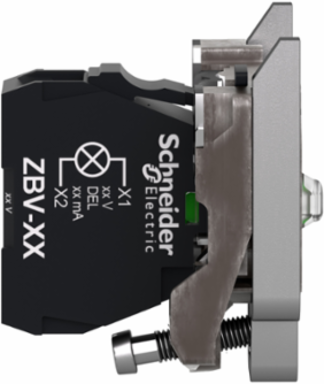

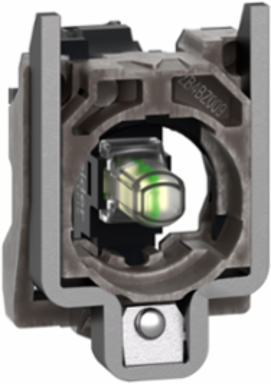

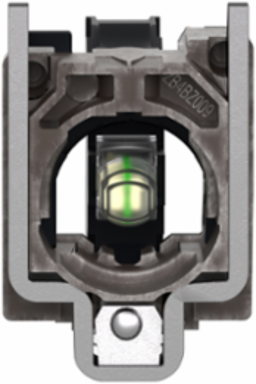

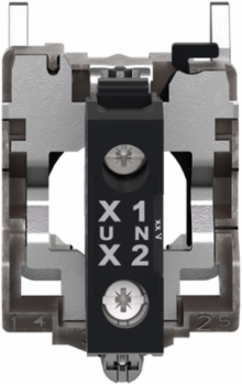

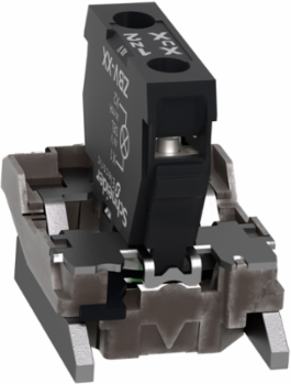

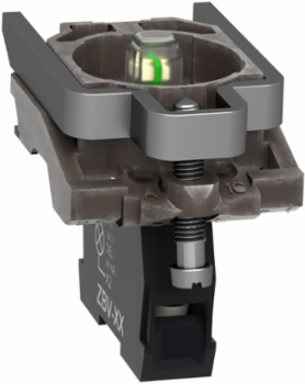

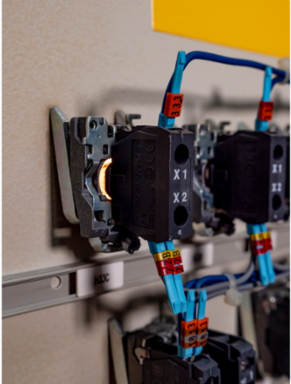

Schneider Electric ZB4BVM1 Harmony XB4 Complete Body Light Block Assembly, 230-240V AC, 30 mm Width

  • MPN: ZB4BVM1
  • PPN: SCH-ZB4BVM1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $58.09

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico, United States

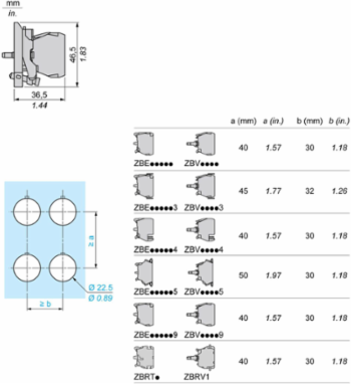

    Physical Attributes

    Cad Overall Depth
    37 mm
    Cad Overall Width
    30 mm
    Cad Overall Height47 mm
    Light Source Colorwhite

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    0, no
    Resistance To Electrostatic Discharge
    6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Certificate Agency
    DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end, screw clamp terminals, >= 1 x 0.22 mm² without cable end
    Carbon Footprint Of The Distribution Phase [A4]
    0.0067997573, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0096326214, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    39 kg CO2 eq., 39.3713028169
    Local Publishable Date
    2026-01-12
    Future Imap
    28.16
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2308026EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    20 %
    Bulb Base
    integral LED
    Current Consumption
    14 mA
    Electrical Shock Protection Class
    class I conforming to IEC 60536
    Fixing Collar Material
    zamak
    Product Or Component Type
    complete body/light block assembly
    Range Of Product
    Harmony XB4
    Resistance To Fast Transients
    2 kV IEC 61000-4-4
    Sale Per Indivisible Quantity
    1
    Signalling Type
    steady
    Supply Voltage Limits
    195-264 V AC
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Vibration Resistance
    5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Light Source Color
    white
    Pep Code
    "ENVPEP2308026EN"
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Package Weight(Lbs)
    52.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Light Sourceuniversal LED, universal LED
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Supply Voltage230...240 V
    [Us] Rated Supply Voltage230...240 V, 230...240 V AC 50/60 Hz
    Terminals Description Iso N°1(X1-X2)PL, (X1-X2)PL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0621097087
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3902208738
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp36.45
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content44 %
    Compatibility CodeZB4
    Device Short NameZB4
    Electromagnetic Emissionclass B IEC 55011
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    ReturnabilityYes
    Service Life100000 h at rated voltage and 25 °C
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint40 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Connections Terminals 8 Connections Terminalsscrew clamp terminals
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintece for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime, In Kwh84.6216
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    39.8400657781
    Environmental Disclosure
    "ENVPEP2308026EN"
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level20 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2308026EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep Code"ENVPEP2308026EN"
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    complete body/light block assembly
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8
    EC000204
    ETIM 9EC000204

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes
