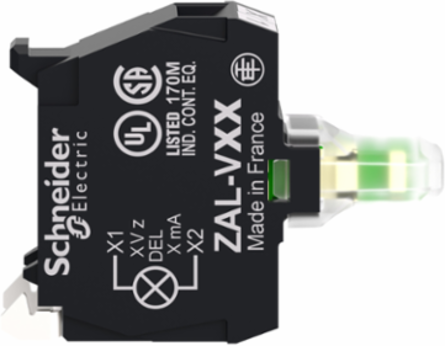

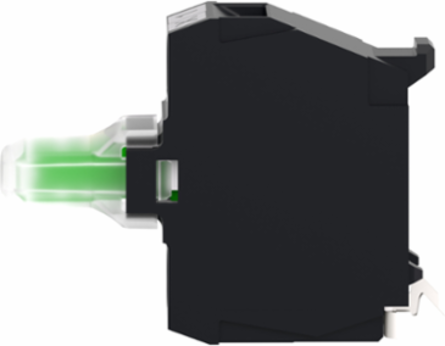

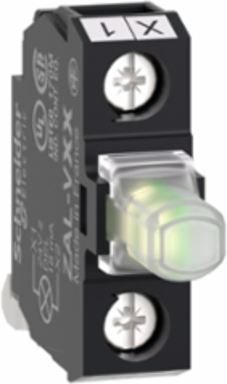

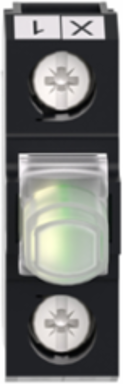

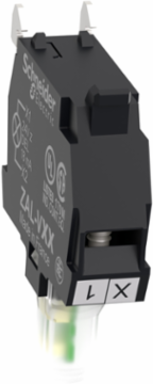

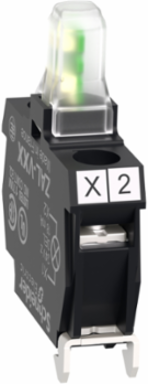

Schneider Electric ZALVB1 Harmony XALD Light Block, 24V AC/DC, for 22mm Control Units, White LED

  • MPN: ZALVB1
  • PPN: SCH-ZALVB1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $49.20

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This white light block with universal LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, United States

    Physical Attributes

    Light Source Color
    white

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Composition Code
    MR1, PR1
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Supply Voltage Limits
    19.2-30 V DC, 21.6-26.4 V AC
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.0172054575
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.1 kg CO2 eq., 0.1402969502
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Bulb Base
    integral LED
    Current Consumption
    15 mA
    Electromagnetic Emission
    class B IEC 55011
    Light Source
    universal LED
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    light block
    Range Of Product
    Harmony XAL
    Resistance To Fast Transients
    2 kV IEC 61000-4-4
    Sale Per Indivisible Quantity
    5
    Signalling Type
    steady
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    5 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP2302007EN
    Pep Verification Date
    2023-04-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
    [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
    [Us] Rated Supply Voltage
    24 V AC/DC
    Package Weight(Lbs)
    11.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Certificate AgencyUL Listed, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.0052379615, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0120061396, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 kg CO2 eq., 4.9328526316
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2302007EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Assembly Stylefor customer assembly
    Compatibility CodeZALV
    Device Short NameZALV
    Light Block Supplydirect
    Mounting Of Blockrear mounting
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Protective TreatmentTH
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    ReturnabilityYes
    Service Life100000 h at rated voltage and 25 °C
    Software Versionv5.9.4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    Light Source Colorwhite
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionLight blocks that attach to the back of a push button and serve as an indicator light. When the push button is pressed, the light blocks turn on and illuminate through the button head with a 30% utilisation rate and power consumption is 4.56W, and the product has a life of 10 years while adhering to standards IEC 61000-4-5 and IEC 60947-5-5.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential, In %15
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2302007EN
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-04-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint5.1075991404
    Environmental DisclosureENVPEP2302007EN
    Ip Degree Of ProtectionIP20 IEC 60529
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2302007EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    light block
    Range Of ProductHarmony XAL

    ETIM

    ETIM 8
    EC000204
    ETIM 9EC000204

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV IEC 61000-5-1

    Contractual Warranty Attributes

    Warranty Period
    18 months
