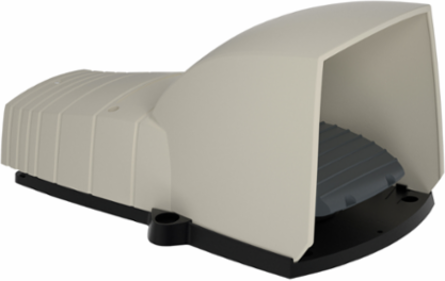

Schneider Electric XPEG510 Harmony XPE Single Foot Switch, IP66, Plastic, 1 NC + 1 NO Contacts
- MPN: XPEG510
- PPN: SCH-XPEG510
CAD
$149.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XPEG510 is a single foot switch. Its degree of protection is IP66. It has a cover, plastic material, grey color, 1 NC + 1 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XPE
- Material
- plastic
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- 1 step
- Foot Switch Type
- single foot switch
Product Or Component Typefoot switch
Trigger Mechanismwith trigger mechanism
Colourgrey
Provided Equipmentcover
Device Short NameXPEG
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
- Net Weight
- 0.7 kg
- [Ie] Rated Operational Current
- 3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
- Rated Operational Power In W
- 10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C
Positive Openingwith IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Connections - Terminalsscrew clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Mechanical Durability10000000 cycles
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Environment
- Product Certifications
- UL || CSA
- Standards
- NF E 09-031
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Overvoltage Categoryclass II IEC 61140 || class II NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071104EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
