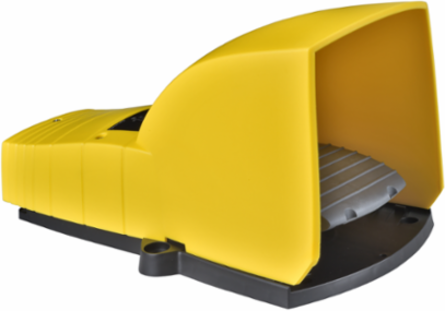

Schneider Electric XPEY711 Single foot switch, Harmony XPE,plastic, yellow, with cover, trigger mechanism, 2 steps, 2 contacts 1NC+NO, IP55

MPN: XPEY711
PPN: SCH-XPEY711

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$170.85/ EA

Qty:

Loading add to cart quantity...

Description

This Harmony XPEY711 is a single foot switch. Its degree of protection is IP55. It has a cover, plastic material, yellow color, 2 NC + NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.

Specifications

Environment

Ambient Air Temperature For Operation: -25-55 °C

Vibration Resistance: 5 gn 10-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage: -40-70 °C

Protective Treatment: TH

Shock Resistance30 gn IEC 60068-2-27

Ip Degree Of ProtectionIP55 IEC 60529

Overvoltage Categoryclass II EN/IEC 61140 || class II NF C 20-030

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP071104EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileN/A

Complementary

Short-Circuit Protection: 10 A cartridge fuse gG EN/IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200

Net Weight: 0.7 kg

[Ie] Rated Operational Current: 3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A

[Ui] Rated Insulation Voltage: 500 V 3)EN/IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14

Rated Operational Power In W: 10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 EN/IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 EN/IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 EN/IEC 60947-5-1 appendix C

Positive Openingwith EN/IEC 60947-5-1 appendix K

[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1

Connections - Terminalsscrew clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end

Mechanical Durability5000000 cycles

Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
