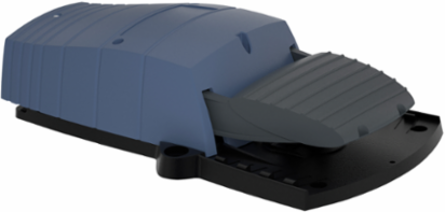

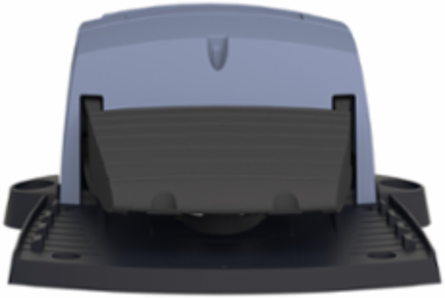

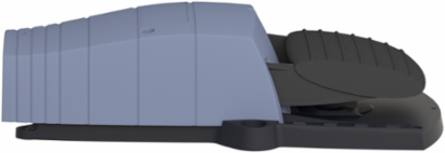

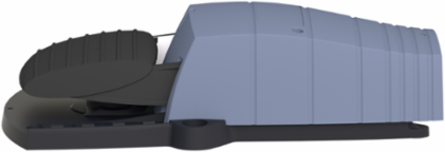

Schneider Electric XPEB110 Harmony XPE Single Foot Switch, IP66, 1 NC + 1 NO, 0.57 kg

MPN: XPEB110
PPN: SCH-XPEB110

$144.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XPEB110 is a single foot switch. Its degree of protection is IP66. It has no cover, plastic material, blue color, 1 NC + 1 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Harmony XPE
Material	plastic
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	1 step
Device Short Name	XPEB

Product Or Component Type	foot switch
Trigger Mechanism	without trigger mechanism
Colour	blue
Foot Switch Type	single foot switch

Complementary

Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1 \|\| 10 A cartridge fuse gG VDE 0660-200
Net Weight	0.57 kg
[Ie] Rated Operational Current	3 A, 240 V, AC-15, A300 \|\| 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
[Ui] Rated Insulation Voltage	500 V 3)IEC 60947-1 \|\| 500 V 3)NF C 20-040 group C \|\| 500 V 3)VDE 0110 group C \|\| 300 VUL 508 \|\| 300 VCSA C22.2 No 14

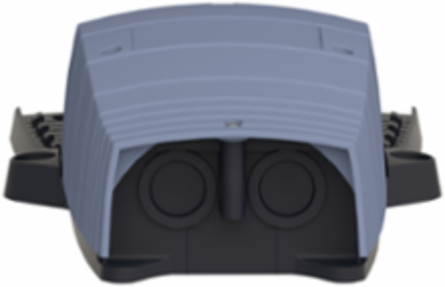

Cable Entry	2 plain holes for M20 cable gland
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3 \|\| 25 MOhm NF C 93-050 method A

Positive Opening	with IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminal, <= 1 x 2.5 mm² with or without cable end \|\| screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Mechanical Durability	10000000 cycles
Rated Operational Power In W	10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C \|\| 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C \|\| 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C

Environment

Product Certifications	CSA \|\| UL
Standards	CSA C22.2 No 14 \|\| IEC 60947-5-1 \|\| UL 508
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TH

Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	30 gn IEC 60068-2-27
Ip Degree Of Protection	IP66 IEC 60529
Overvoltage Category	class II IEC 61140 \|\| class II NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP071104EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile	N/A
