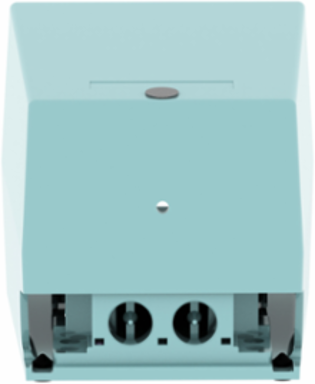

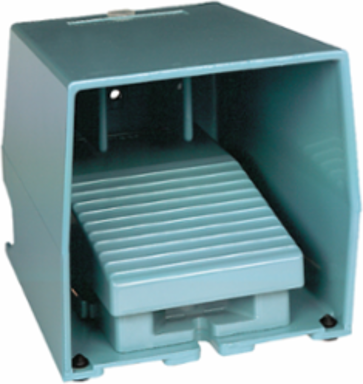

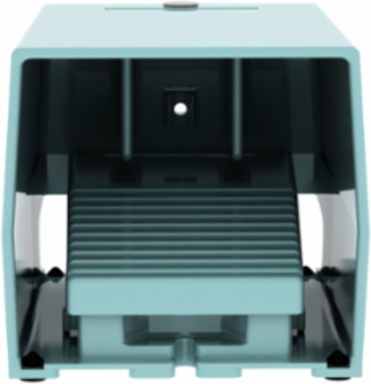

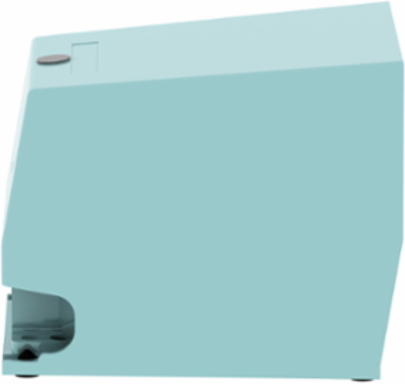

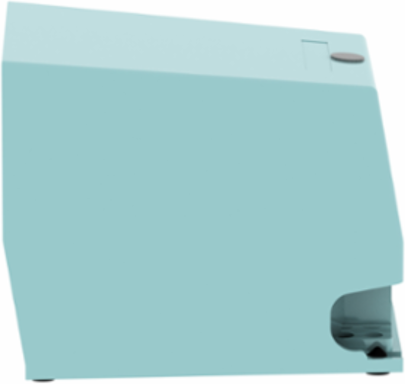

Schneider Electric XPEM310 Single foot switch, Harmony XPE, metal, blue, with cover, 1 step, 1 contact 1NC+NO, IP66
Schneider Electric XPEM310 Single foot switch, Harmony XPE, metal, blue, with cover, 1 step, 1 contact 1NC+NO, IP66
- MPN: XPEM310
- PPN: SCH-XPEM310
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$380.65/ EA
Description
This footswitch is ideal for bending machines, dosing machines, assembly stations, packaging machines, cutting presses, stamping presses and machine tools (numerical control, lathes, milling machines, grinders, machining centres). It is also ideal for guillotines, cutters, folders, saws, forging machines, rolling machines and cold metal forming machines.
Specifications
Environment
- Product Certifications
- CSA || FIMKO
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- NF E 09-031
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP669 NF C 20-010
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
Shock Resistance150 gn NF E 09-031 || 20 gn IEC 60068-2-27
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Complementary
- [Ie] Rated Operational Current
- 3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
- Mechanical Durability
- 15000000 cycles
- Cable Entry
- 2 entries tapped for Pg 16 cable gland
- Net Weight
- 2.4 kg
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Connections - Terminalsscrew clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
Positive Openingwith EN/IEC 60947-5-1 appendix K
Rated Operational Power In W10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 EN/IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 EN/IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 EN/IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Specifications
- Contacts Type And Composition
- 1 NC + 1 NO
- Range Of Product
- Harmony XPE
- Provided Equipment
- cover
- Foot Switch Type
- single foot switch
- Device Short Name
- XPEM
Colourblue
Contact Operation1 step
Product Or Component Typefoot switch
Materialmetal
Trigger Mechanismwithout trigger mechanism
