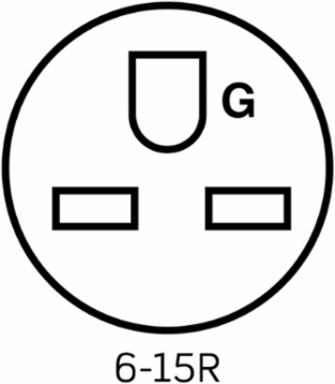

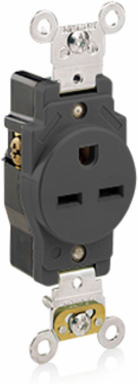

Leviton 5661-E 15 Amp Industrial Grade Self-Grounding Receptacle, NEMA 6-15R, 250 Volt
Leviton 5661-E 15 Amp Industrial Grade Self-Grounding Receptacle, NEMA 6-15R, 250 Volt
- MPN: 5661-E
- UPC: 078477587638
- PPN: LEV-5661-E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$34.68/ EA
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Back or Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Black
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- 10-Year Limited
CSA C22.2 No. 42File 152105
NOM057
UL498File E13399
Material Specifications
- Body Material
- Nylon
- Color
- Black
- Ground Clips
- Brass
- Line Contacts
- Brass Triple-Wipe
- Terminal Screws
- Plated Brass
Clamp NutsGalvanized Steel
Face MaterialNylon
Grounding ScrewPlated Steel
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 14-16 inch pounds
Terminal Accom.14-10 AWG
TerminationBack or Side Wire
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Device Type
- Single Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1-1/2 HP
