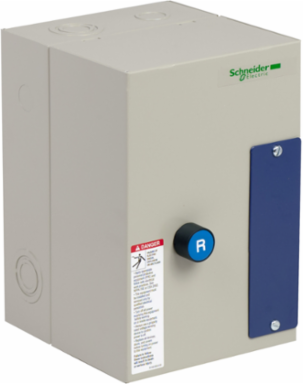

Schneider Electric LE1D123A62OG70 TeSys LE1 IEC Full Voltage Starter, 12A, 5HP at 460VAC, NEMA 1
- MPN: LE1D123A62OG70
- UPC: 785901300052
- PPN: SCH-LE1D123A62OG70
CAD
$619.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D12G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 3HP at 208VAC, 3HP at 230VAC, 7.5HP at 460VAC and 10HP at 600VAC 3 phase ratings. Contactor has a 1/2HP at 120VAC and 2HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
Features
- Engineered to handle up to 12 Amps of continuous current, this TeSys D series starter is rated for 3-phase motors up to 7.5 HP at 460V or 3 HP at 230V. This makes it an ideal, heavy-duty choice for conveyor belts, commercial exhaust fans, and centrifugal pumps where reliable, high-cycle switching and robust short-circuit coordination are non-negotiable.
- This full-voltage non-reversing (FVNR) starter comes factory-housed in a rugged, dust-resistant NEMA 1 steel enclosure, eliminating the need for separate component sourcing and custom drilling. For industrial contractors and plant engineers, this "out-of-the-box" solution slashes labor costs and ensures a professional, code-compliant installation for indoor motor control applications.
- Equipped with a standard 120V 50/60Hz coil, this starter integrates seamlessly with common North American control transformers and PLC outputs. This high-compatibility coil voltage allows for straightforward wiring into your existing emergency stop circuits and remote pilot devices, reducing the need for additional voltage converters or complex control modifications during installation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Maximum Horse Power Rating
- 0.5-0.5 hp 120 V AC, 1 phase2-2 hp 240 V AC, 1 phase, 3-3 hp 208 V AC, 3 phase, 3-3 hp 230 V AC, 3 phase7.5-7.5 hp 460 V AC, 3 phase10-10 hp 575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, IEC, CSA
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Location Of Connection
- line
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Instakits
- Sustainable Packaging
- No
- Pep Code
- ENVPEP111273EN
- [Uc] Control Circuit Voltage
- 600 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1924
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Motor Starter Typenon reversing
Product Or Component Typefull voltage starter
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ie] Rated Operational Current Ac12 A
[Ue] Rated Operational Voltage120 V AC 50/60 Hz
Package Weight(Lbs)4.6 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP111273EN
- Nema Degree Of Protection
- NEMA 1 steel
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP111273EN
General Attributes
- Product Or Component Type
- full voltage starter
Range Of ProductInstakits
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
