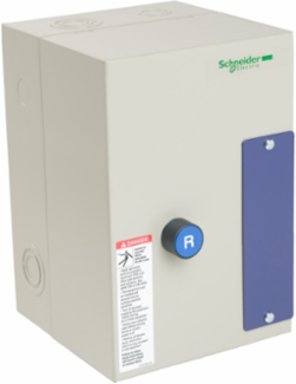

Schneider Electric LE1D183A62OG70 TeSys LE1 Full Voltage Starter, 18A, 5HP, NEMA 1
- MPN: LE1D183A62OG70
- UPC: 785901562528
- PPN: SCH-LE1D183A62OG70
CAD
$680.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D18G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 5HP at 208VAC, 5HP at 230VAC, 10HP at 460VAC and 15HP at 600VAC 3 phase ratings. Contactor has a 1HP at 120VAC and 3HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
Features
- Housed in a rugged, surface-mount sheet steel enclosure, this full-voltage non-reversing (FVNR) starter is purpose-built to shield internal components from dust and accidental contact. It provides a clean, professional installation in mechanical rooms and industrial shops, ensuring your motor control setup complies with standard indoor safety requirements while protecting the high-quality TeSys contactor inside.
- Rated for 18 Amps (AC-3), this starter is optimized for managing 3-phase motors up to 5 HP at 230V or 10 HP at 460V. The heavy-duty TeSys D contactor at the core of the unit is engineered for high-cycle reliability, providing a long mechanical life even in demanding applications like conveyor systems, commercial pumps, and industrial fans.
- Equipped with a standard 120V 50/60Hz (G7) operating coil, this starter integrates seamlessly into most North American control schemes without the need for additional step-down transformers. This allows for straightforward wiring to remote pilot devices, float switches, or PLCs, simplifying your electrical layout and reducing overall installation time for plant electricians.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Complementary Attributes
- Maximum Horse Power Rating
- 25-25 hp 575 V AC, 3 phase5-5 hp 208 V AC, 3 phase, 5-5 hp 230 V AC, 3 phase10-10 hp 460 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, IEC, CSA
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Location Of Connection
- line
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Instakits
- Sustainable Packaging
- No
- Pep Code
- ENVPEP111273EN
- [Uc] Control Circuit Voltage
- 600 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1924
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Motor Starter Typenon reversing
Product Or Component Typefull voltage starter
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ie] Rated Operational Current Ac18 A
[Ue] Rated Operational Voltage120 V AC 50/60 Hz
Package Weight(Lbs)4.6 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP111273EN
- Nema Degree Of Protection
- NEMA 1 steel
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP111273EN
General Attributes
- Product Or Component Type
- full voltage starter
Range Of ProductInstakits
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
