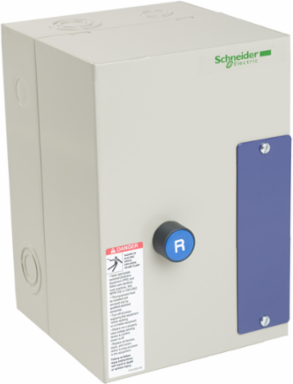

TeSys LE1 Full Voltage Non-Reversing Starter, 9A, NEMA 1
Schneider Electric

Schneider Electric LE1D093A62OG70 TeSys LE1 Full Voltage Non-Reversing Starter, 9A, NEMA 1

  • MPN: LE1D093A62OG70
  • UPC: 785901487029
  • PPN: SCH-LE1D093A62OG70
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $479.49

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D09G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 2HP at 208VAC, 2HP at 230VAC, 5HP at 460VAC and 7.5HP at 600VAC 3 phase ratings. Contactor has a 1/3HP at 120VAC and 1HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.

    Features

    • This is a TeSys LE enclosed non-reversing DOL (Direct-On-Line) motor starter. It combines a high-quality contactor and an overload relay inside a rugged, pre-wired enclosure. It provides a "plug-and-play" solution for starting and protecting 3-phase motors, commonly used for Canadian small industrial pumps, fans, and conveyor systems.
    • The core component is a 9-Amp (AC-3) contactor. In a typical Canadian 600V industrial environment, this unit is rated for motors up to 5 HP. If you are running at 208V or 240V, the horsepower rating will be lower (approx. 2-3 HP). It is designed to handle the high inrush current of inductive motor loads safely and reliably.
    • The "G7" code signifies a 120V AC (50/60 Hz) control coil. This is the standard control voltage for most North American industrial facilities, allowing the starter to be integrated into existing control logic or operated via standard 120V pilot devices without needing an additional control transformer.
    • This specific model features integrated "Start" and "Stop/Reset" pushbuttons mounted directly on the cover. The "Stop" button also acts as the manual reset for the thermal overload relay, providing a localized, ergonomic control point for machinery operators on the factory floor.
    • The starter includes a pre-installed thermal overload relay. This relay monitors the current draw of the motor and will trip the circuit if it detects a sustained over-current condition (such as a mechanical jam or phase loss), preventing permanent damage to the motor windings a critical requirement for Canadian Electrical Code (CEC) motor branch circuit protection.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Mexico

    Complementary Attributes

    Maximum Horse Power Rating
    0.3-0.3 hp 120 V AC, 1 phase1-1 hp 240 V AC, 1 phase, 2-2 hp 208 V AC, 3 phase, 2-2 hp 230 V AC, 3 phase5-5 hp 460 V AC, 3 phase7.5-7.5 hp 575 V AC, 3 phase

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Certificate Agency
    CSA, UL, IEC
    Local Publishable Date
    2026-06-27
    Stocking Flag
    Y
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Location Of Connection
    line
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Instakits
    Sustainable Packaging
    No
    Pep Code
    ENVPEP111273EN
    [Uc] Control Circuit Voltage
    600 V AC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536504000
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1924
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Energy Efficiency OptimizedFalse
    Motor Starter Typenon reversing
    Product Or Component Typefull voltage starter
    ReturnabilityYes
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    [Ie] Rated Operational Current Ac9 A
    [Ue] Rated Operational Voltage120 V AC 50/60 Hz
    Package Weight(Lbs)4.608 kg
    Warranty (In Months)18

    Environment Attributes Main

    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Environmental Disclosure
    ENVPEP111273EN
    Nema Degree Of Protection
    NEMA 1 steel
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP111273EN

    General Attributes

    Product Or Component Type
    full voltage starter
    Range Of ProductInstakits

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
