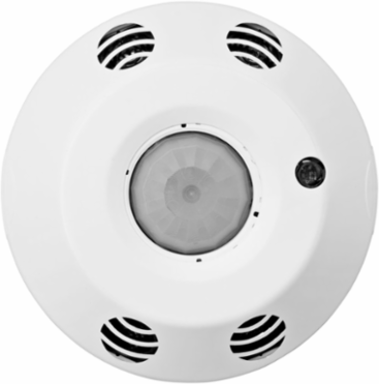

Leviton ACY20-DMW Smart Ceiling Mount Sensor (CMS), Dimming, Multi-Tech, 2000 sq ft Coverage
Leviton ACY20-DMW Smart Ceiling Mount Sensor (CMS), Dimming, Multi-Tech, 2000 sq ft Coverage
- MPN: ACY20-DMW
- UPC: 078477355206
- PPN: LEV-ACY20-DMW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$306.09/ EA
Description
Smart Ceiling Mount Sensor, Multi-Tech, 0-10V dimming, 2-zone, 2,000 sq ft coverage, 120-277VAC
Features
- Can be used to comply with IECC, ASHRAE 90.1. and 2022 Title 24, Part 6 requirements:
- Occupancy/vacancy sensing
- 0-10V dimming
- Daylight harvesting
- Partial-ON, partial-OFF
- Demand response
- Plug load or receptacle control
- Available in 450 to 2,000 square foot field-of-view units
- All configuration is done using the Smart Sensor App
- For larger spaces, additional Smart Ceiling Mount Sensors can be connected wirelessly to expand the FOV (up to 5 devices)
- Passive infrared (PIR) and multi-tech (PIR + ultrasonic) models available
- Manual area control available for 3-way/multi-way applications with the PLVSW Low Voltage Keypads or SBK00 Wireless Switch and Dimmer (must all be same style)
- Manual control for independent dimming zones (dim primary and secondary daylighting zones up and down independently)
- For dual relay models (ACY15-DIW and ACY20-DMW), two keypads can be connected for manual control of each relay/lighting zone
- UL924 listed for emergency lighting:
- Can be connected to BMS (Building Management System) or any contact closure to force the lights full ON in case of emergency
- AutoCal feature—Digital Daylighting Level automatically calibrates photocell to specified lighting design
- Simplified daylight harvesting control of primary and secondary daylighting zones with full range 0-10V dimming
- Primary zone dimmed up and down from photocell
- Secondary zone dimmed up and down with offset from primary zone
- Two light pipes are included for both open (angled) and closed loop (flat and angled) daylight harvesting
- The angled light pipe provides directional fine tuning and alignment to natural light source for closed loop applications
- Includes two interchangeable lenses for 8-12’ mounting heights and 13-20’ mounting heights as well as aisleway masks
- The Leviton exclusive Smart Ceiling Mount Sensor (CMS) offers high performance, code compliant, advanced room configuration in one easy-to-install device. Installers can download the Smart Sensor App for quick-and-easy room configuration with any iOS or Android device. The CMS’s features meet advanced design requirements for standalone occupancy/vacancy sensing , dimming and daylight harvesting applications, offering easy configuration and operational testing for one or two 0-10V dimming zones, options for one or two daylight harvesting zones, partial-ON, partial-OFF, area control, demand response, plug load or receptacle control, and UL924 emergency lighting.
Specifications
Specifications
- Country of Origin
- China
RoHS CompliantFalse
