Tripp Lite SMART1500PSGLCD Gaming UPS Battery Backup, Pure Sine Wave, 120V, 1500VA/900W, LCD, AVR, RGB LEDs, USB Charging
- MPN: SMART1500PSGLCD
- UPC: 037332253774
- PPN: TRP-SMART1500PSGLCD
CAD
$691.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1500VA 900W 120V Pure Sine Wave Gaming UPS Battery Backup - LCD, AVR, RGB LEDs, USB Charging, Power Saving
Features
- USB cable
- Owner's manual
Documentation & Downloads
Specifications
Performance
- UPS Type
- Line-Interactive
- Input Phase
- Single-Phase
- Maximum Input Amps
- 12A
- Recommended Electrical Service
- 15A 120V
- Frequency Compatibility Details
- Automatic frequency selection
- Output AC Waveform
- Pure Sine wave
- AC Mode Efficiency Rating
- >96%
- Expandable Runtime Description
- Extended runtime supported via optional external battery pack (limit 1)
- DC System Voltage
- 24V
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
- Storage Temperature Range
- 5° to 122°F (-15° to 50°C)
Output Capacity1500VA / 900W
Rated Input Current12A
Input Circuit Breakers15A
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation120V (±10%)
Voltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation during brownouts as low as 97V and overvoltages up to 145V
Expandable RuntimeYes
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Recharge Rate7 hours from 10% to 90%
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative HumidityUp to 90% non-condensing
Reference
- UPS Applications
- Home/Office Desktop; High-End Desktop/Small Network; Audio/Video; Computer Gaming; Retail/Point of Sale; Hospitality
Product Warranty Period3-year limited warranty
Dimensions
- UPS Input Connection Type
- 5-15P

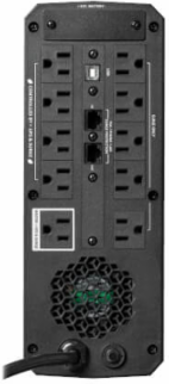

- Output Receptacles
- (10) 5-15R
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
- Cooling Method
- Fan
- Primary UPS Height
- 280 mm
- Unit Dimensions
- 11.024 x 4.134 x 16.929 in
- Front Panel LCD Display
- LCD screen offers detailed UPS status information, configuration options and error message reporting: status info (input/output voltage, frequency, battery voltage/capacity, estimated runtime, output watts, load %, master outlet consumption, LCD module battery voltage, firmware revision); configuration options (Eco-mode, alarm disable, LED lighting); error messages (replace battery, overload, critical fault)
- Alarm Cancel Operation
- Alarm mute operation supported
- Communications Interface
- USB (HID enabled)
UPS Input Cord Length5 ft
UPS Output Receptacles5 UPS outlets, 5 surge-only outlets
Primary Form FactorTower
Primary UPS Depth430 mm
Primary UPS Width105 mm
Unit Weight29.26 lb
SwitchesOff/On button; Mute button; Up/Down button
Audible AlarmIndicates Battery Mode Full Charge (every 10 sec), Battery Mode Low Charge (every 1 sec), Replace Battery (every 2 sec), Fault (continuous)
Communications CableUSB cable included
Material
- UPS Housing Material
- ABS
