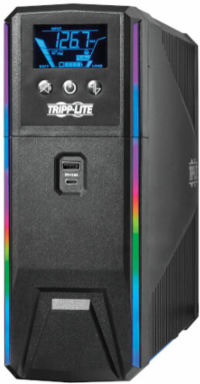

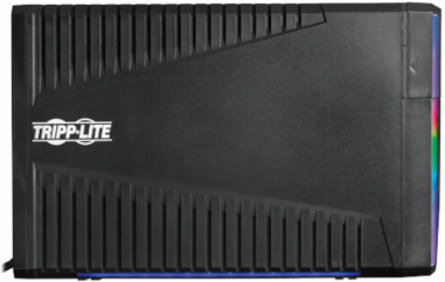

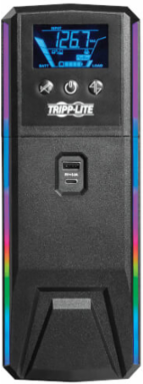

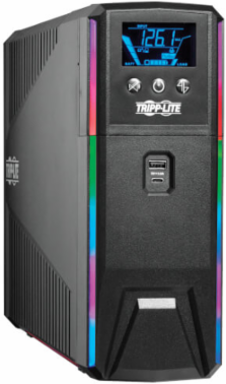

Tripp Lite SMART1200PSGLCD Gaming UPS Battery Backup, Pure Sine Wave, 120V, 1200VA/720W, LCD, AVR, RGB LEDs, USB Charging
- MPN: SMART1200PSGLCD
- UPC: 037332253767
- PPN: TRP-SMART1200PSGLCD
CAD
$613.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1200VA 720W 120V Pure Sine Wave Gaming UPS Battery Backup - LCD, AVR, RGB LEDs, USB Charging, Power Saving
Features
- USB cable
- Owner's manual
Documentation & Downloads
Specifications
Performance
| UPS Type | Line-Interactive |
|---|---|
| Input Phase | Single-Phase |
| Maximum Input Amps | 12A |
| Recommended Electrical Service | 15A 120V |
| Frequency Compatibility Details | Automatic frequency selection |
| Output AC Waveform | Pure Sine wave |
| AC Mode Efficiency Rating | >96% |
| DC System Voltage | 24V |
| Green Energy-Saving Features | Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Output Capacity | 1200VA / 720W |
|---|---|
| Rated Input Current | 12A |
| Input Circuit Breakers | 15A |
| Frequency Compatibility | 50 / 60 Hz |
| Output Voltage Regulation | 120V (±10%) |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation during brownouts as low as 97V and overvoltages up to 145V |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Recharge Rate | 7 hours from 10% to 90% |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | Up to 90% non-condensing |
Reference
| UPS Applications | Home/Office Desktop; High-End Desktop/Small Network; Audio/Video; Computer Gaming; Retail/Point of Sale; Hospitality |
|---|
| Product Warranty Period | 3-year limited warranty |
|---|
Material
| UPS Housing Material | ABS |
|---|
Dimensions
| UPS Input Connection Type | 5-15P |
|---|---|

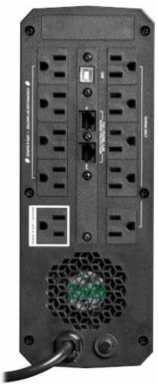

| Output Receptacles | (10) 5-15R |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| Cooling Method | Fan |
| Primary UPS Height | 280 mm |
| Unit Dimensions | 11.024 x 4.134 x 16.929 in |

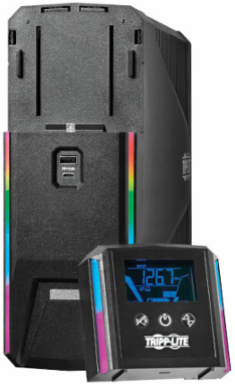

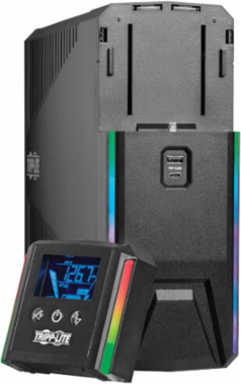

| Front Panel LCD Display | LCD screen offers detailed UPS status information, configuration options and error message reporting: status info (input/output voltage, frequency, battery voltage/capacity, estimated runtime, output watts, load %, master outlet consumption, LCD module battery voltage, firmware revision); configuration options (Eco-mode, alarm disable, LED lighting); error messages (replace battery, overload, critical fault) |
| Alarm Cancel Operation | Alarm mute operation supported |
| Communications Interface | USB (HID enabled) |
| UPS Input Cord Length | 5 ft |
|---|---|
| UPS Output Receptacles | 5 UPS outlets, 5 surge-only outlets |
| Primary Form Factor | Tower |
| Primary UPS Depth | 430 mm |
| Primary UPS Width | 105 mm |
| Unit Weight | 23.23 lb |
| Switches | Off/On button; Mute button; Up/Down button |
| Audible Alarm | Indicates Battery Mode Full Charge (every 10 sec), Battery Mode Low Charge (every 1 sec), Replace Battery (every 2 sec), Fault (continuous) |
| Communications Cable | USB cable included |
