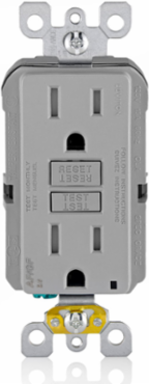

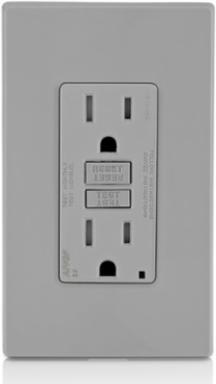

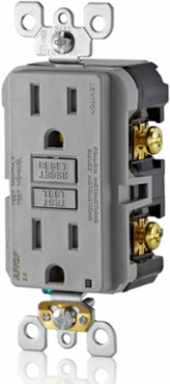

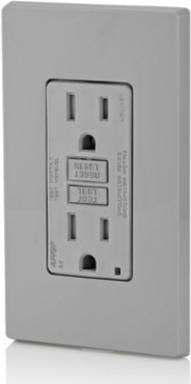

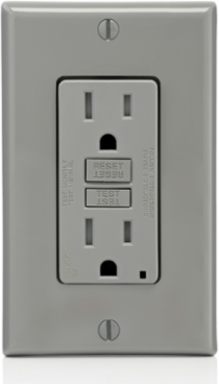

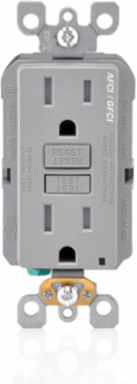

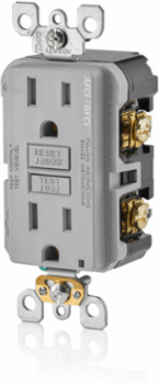

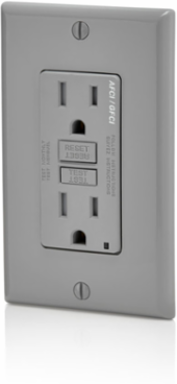

Leviton AGTR1-GY 15 Amp Self-Test Tamper-Resistant AFCI/GFCI Outlet 125 Volt
- MPN: AGTR1-GY
- UPC: 078477744468
- PPN: LEV-AGTR1-GY
CAD
$61.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp Self-Test Tamper-Resistant AFCI/GFCI Outlet 125 Volt
Features
- Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
- Engineered to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that GFCI protected power is available
- On initial power up, tests the GFCI circuit within 3 seconds
- Patented Lockout Action prevents reset if the device is damaged
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
- TEST and RESET buttons are readily accessible on the face of the device
- Improved immunity to high frequency noise reduces nuisance tripping
- Superior resistance to electrical surges and over-voltages enhancing reliability
- Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed)
- One-piece T-design trip latch mechanism provides efficient operation
- Impact-resistant thermoplastic cover and body for durability
- Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
- Compatible with all Decora® devices and wallplates for multi-gang installation option; available in select popular colors
Documentation & Downloads
Specifications
Standards and Certifications
- NOM
- Yes
- UL1699.A
- File E480630
- UL498
- Yes
- UL Fed Spec WC-596
- Yes
CSA Technical Information Letter No. M-02AYes
CSA C22.2 No. 42Yes
ANSIC-73
Material Specifications
- Line Contacts
- Brass Double-Wipe .031 Thick
- Face Material
- Thermoplastic
- Terminal Screws
- Plated Steel
- Grounding Screw
- Plated Steel
- Yoke
- Zinc-Plated Steel
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
Notesw/ Wallplate
Body MaterialPolycarbonate
ClampsBrass
Mechanical Specifications
- Amperage
- 15 A
- Wire
- 3
- NEMA
- 5-15R
- Series
- AGTR1
- Strap Material
- Galvanized Steel
- Pole
- 2
- Grounding
- Self-Grounding
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
ColorGray
Standards and CertificationsUL/CSA
FeatureAFCI, Self-test, Tamper-Resistant
Voltage125 VAC
TerminationBack & Side
Product Features
- Amperage
- 15 A
- NEMA
- 5-15R
- Series
- AGTR1
- Strap Material
- Galvanized Steel
- Feature
- AFCI, Self-test, Tamper-Resistant
- Voltage
- 125 VAC
- Termination
- Back & Side
- Type
- Duplex Receptacle
Wire3
ColorGray
Standards and CertificationsUL/CSA
Country Of OriginChina
Pole2
GroundingSelf-Grounding
At Rated Voltage1 HP
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Line Contacts
- Brass Double-Wipe .031 Thick
- Face Material
- Thermoplastic
- Notes
- w/ Wallplate
- Grounding Screw
- Plated Steel
- Yoke
- Zinc-Plated Steel
FlammabilityRated V-2 per UL 94
Terminal ScrewsPlated Steel
Operating Temperature-35C to +66C
Body MaterialPolycarbonate
ClampsBrass
Electrical Specifications
- Flammability
- Rated V-2 per UL 94
- Dielectric Voltage
- Withstands 1250VAC per UL 1699A
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
AC Horsepower Ratings
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Dielectric Voltage
- Withstands 1250VAC per UL 1699A
At Rated Voltage1 HP
