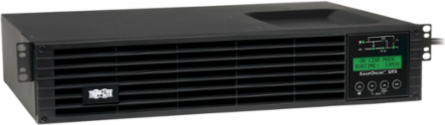

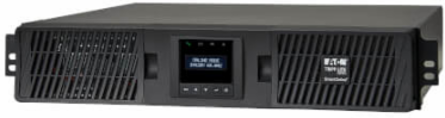

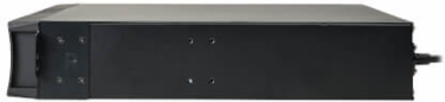

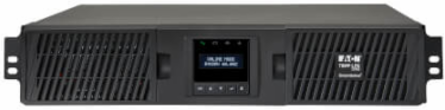

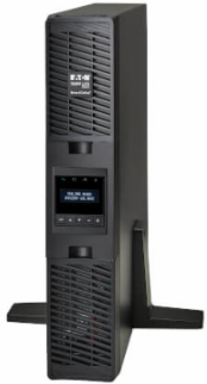

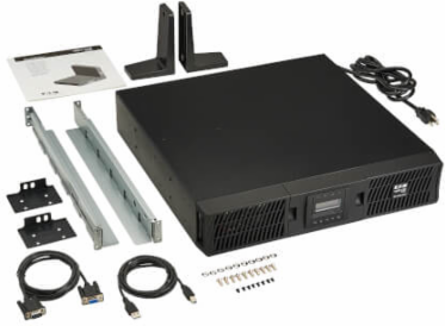

Tripp Lite SU1000RTXLCD2U 1000VA 900W Rackmount Double-Conversion UPS - 6 Outlets, 2U Height, USB
- MPN: SU1000RTXLCD2U
- UPC: 037332164261
- PPN: TRP-SU1000RTXLCD2U
CAD
$2216.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1000VA 900W Rackmount Double-Conversion UPS - 6 Outlets, 2U Height, USB
Features
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Optional WEBCARDLX network interface required to use Auto Probe feature

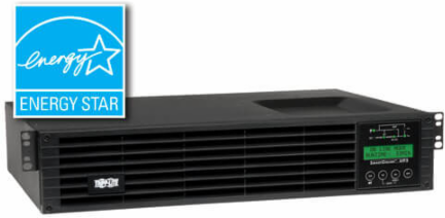

- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
- Individually Controllable Load Banks Let You Access and Control Outlets Remotely
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
- Automatically Turns Back On After Power Is Restored

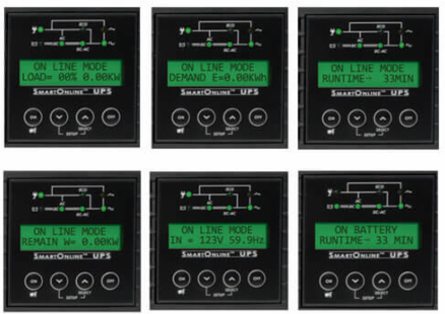

- Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Optional WEBCARDLX Network Interface Offers 24/7 Access

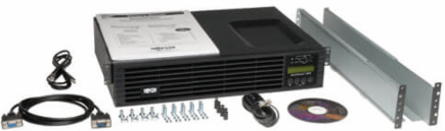

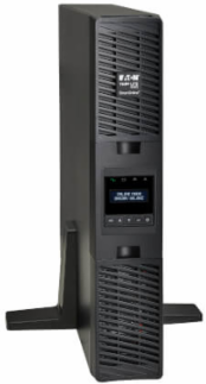

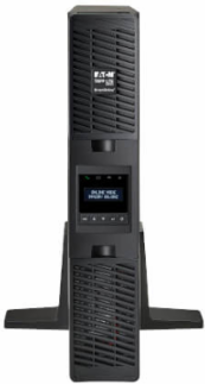

- Versatile Installation Options
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity
- 1000 VA
- UPS Type
- On-Line Double-Conversion
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Power Factor
- 0.9
- Frequency Compatibility
- 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

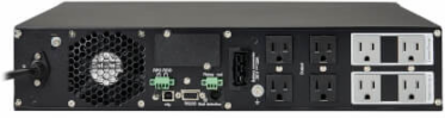

- Number of Outlets
- 6 (5-15R)
- Input Circuit Breaker
- 15 A
- Recommended Electrical Service
- 15 A 120 V
- Battery Runtime Full Load
- 4.8 min (900 W)
- Expandable Battery Runtime
- Supported via optional external battery packs
- Battery Recharge Rate
- Less than 3 hours to 90%
- Voltage Regulation Description
- Maintains 2% output voltage regulation during brownouts and overvoltages
- Undervoltage Correction
- Corrects undervoltages to 100 V at full load
- Surge Suppression
- 570 joules
- Operating Temperature Range
- 0 to 40 °C (32 to 104 °F)
- Battery Access
- Front panel battery access
- Installation Form Factor
- 2U rackmount
- Weight
- 29 lbs (13.15 kg)
- Relative Humidity
- 0 to 95%, non-condensing
- Certifications
- ENERGY STAR Qualified, FCC Part 15 Category B, ROHS, CSA, UL Listed
Output Watt Capacity900 W
Output Voltage Regulation (Line Mode)+/- 2%
Output Voltage Regulation (Battery Mode)+/- 3%
Nominal Voltage120 V
Output AC WaveformPure Sine Wave
Rated Input Current8.6 A
Input Connection TypeNEMA 5-15P
Input PhaseSingle-Phase
Battery Runtime Half Load14 min (450 W)
DC System Voltage24 VDC
Battery ReplacementHot-swappable, user replaceable
Overvoltage CorrectionUp to 150 V (0-100% load)
Severe Undervoltage CorrectionCorrects brownouts to 70 V (70% load) and 55 V (33% load)
Noise SuppressionEMI/RFI AC noise suppression

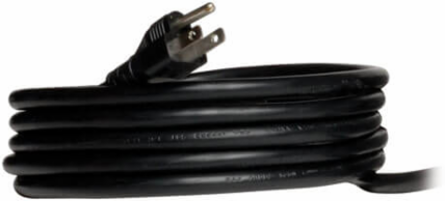

Input Cord Length10 ft
Cooling MethodFan cooled
Dimensions (H x W x D)3.5 x 17.5 x 12.5 in (8.89 x 44.45 x 31.75 cm)
Storage Temperature Range-15 to 50 °C (5 to 122 °F)
Audible Noise45 dBA at 1 m front side
Warranty2-year limited warranty
