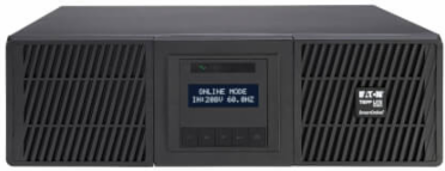

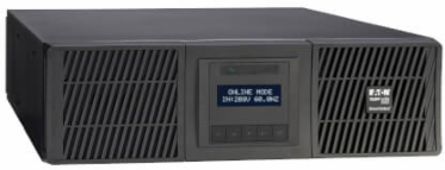

Tripp Lite SU6000RTMB SmartOnline 6000VA 5400W 208V Online Double-Conversion UPS with Maintenance Bypass - L6-20R/L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower
- MPN: SU6000RTMB
- UPC: 037332286345
- PPN: TRP-SU6000RTMB
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartOnline 6000VA 5400W 208V Online Double-Conversion UPS with Maintenance Bypass - L6-20R/L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower

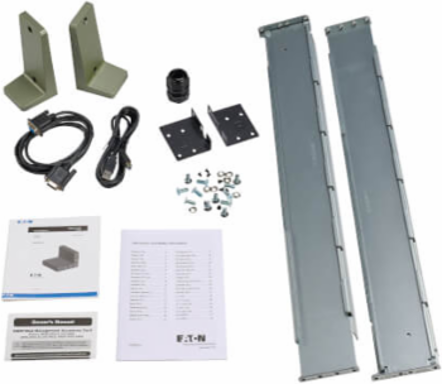

Features
- 6000VA 5400W 208V Double-Conversion UPS
- SUPDMBP6K maintenance bypass
- WEBCARDLXE network card
- USB cable
- RS-232 cable
- Tower support stands
- Cable gland for hardwire connection
- Rack-mounting hardware (9RK)
- Maintenance bypass mounting hardware
- Quick start guide
Documentation & Downloads
Specifications
Dimensions
| UPS Input Connection Type | Hardwire; L6-30P |
|---|---|
| UPS Input Cord Length | 10 ft |

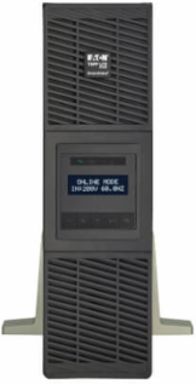

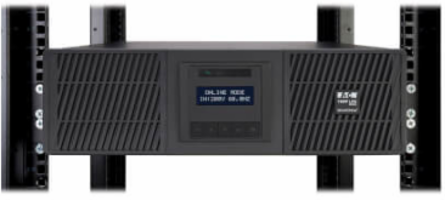

| Primary Form Factor | Rackmount; Tower, 3U |
| Unit Dimensions | 5.100 x 17.300 x 34.000 in |
| UPS Power Module Weight | 48.08 lb |
| Input Plug Type | NEMA L6-30P |
|---|---|

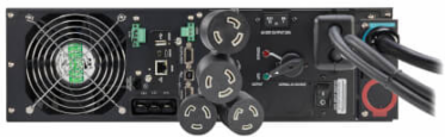

| Output Receptacles | (2) L6-20R; (2) L6-30R; Hardwire |
| Minimum Required Rack Depth | 31 in |
| Unit Weight | 111.5 lb |
| Cooling Method | Fan |
Material
| UPS Housing Material | Metal |
|---|---|
| DC System Voltage | 180 VDC |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|
Compliance
| Product Warranty Period | 2-Year Limited Warranty |
|---|
Reference
| UPS Applications | Mission Critical Applications |
|---|
Performance
| UPS Type | On-Line |
|---|---|
| Output Capacity Details | 230/240V: 5400 watts; 220V: 5100 watts; 208V: 4800 watts; 200V: 4600 watts |
| Rated Input Current | 24.8A |
| Recommended Electrical Service | 30A |
| Frequency Compatibility Details | 50 or 60Hz, autosensing or configurable as a frequency converter |
| Output Voltage Regulation | ±1% |
| Output AC Waveform | Pure Sine Wave |
| AC Mode Efficiency Rating | 93% |
| Relative Humidity | 0-95% non-condensing |
| Audible Noise | <45 dB at 1 meter |
| Output Capacity | 6000 VA |
|---|---|
| Input Phase | Single-Phase |
| Maximum Input Amps | 25 A |
| Frequency Compatibility | 50 / 60 Hz |
| Nominal Voltage Details | 200V, 208V, 220V, 230V, 240V |
| Output Circuit Breakers | 20A breaker protects L6-20R outlets |
| Voltage Regulation Description | Online, double-conversion power conditioning |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Operating Elevation | 0-3280 ft (0-1000 m) |
