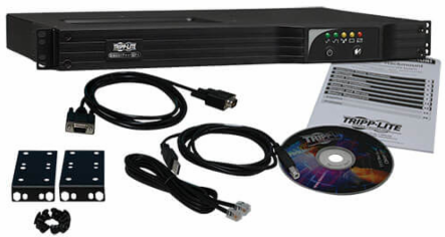

Tripp Lite SM1000RM1UTAA TAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, 1U, Network Card Options, USB, 6 Outlets

TAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, 1U, Network Card Options, USB, 6 Outlets - https://media.province-electric.com/tripplite/2020q1/467d4932d2c4a1676488bf87f33865c820e237ec-medium.png

TAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, 1U, Network Card Options, USB, 6 Outlets

MPN: SM1000RM1UTAA
UPC: 037332218346
PPN: TRP-SM1000RM1UTAA

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1907.61/ EA

Qty:

Loading add to cart quantity...

Description

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Ideal solution for servers, storage devices and telecom hardware.

Features

Corrects under- and overvoltages from 83V to 147V
6 NEMA 5-15R outlets—2 switchable via network interface
Network power management and control capability
99% efficiency rating saves energy and operating cost
14 min. runtime at half load; 4 min. at full load
To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
2-year limited warranty
$250,000 Ultimate Lifetime Insurance
Protects Mission-Critical Rack-Mounted Equipment
Reliable Battery Backup
Switchable Outlets
Automatic Voltage Regulation (AVR)
EMI/RFI Line Noise Filtering
High Efficiency Operation
LED Indicators
Optional Network Management Cards
Communications Ports
Versatile Installation Options
TAA Compliant

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 450

EMI / RFI AC Noise Suppression: Yes

UPS Dataline Suppression1 line TEL/DSL or Ethernet

AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 4 min. (800w)

DC System Voltage (VDC): 24

Internal UPS Replacement Battery Cartridge: RBC69-1U

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)14 min. (400w)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%

Battery AccessFront panel battery access door

Expandable RuntimeNo

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Certification DetailsUL 1778: 2014 R8.15 (5TH EDITION); CAN/CSA-C22.2 NO. 107.3-14

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount; 2 post 19 inch rackmount

Minimum Required Rack Depth (inches): 19.75

Primary Form Factor: Rackmount

Primary UPS Height (mm): 44

Rack Height: 1U

Shipping Weight (lbs.): 36.00

UPS Power Module Dimensions (hwd, in.): 1.75 x 17.5 x 16.75

UPS Power Module Weight (lbs.): 32

Included Mounting Accessory DescriptionIncluded mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM

Installation Form Factors Supported with Optional Accessories4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM )

Optional Mounting Accessory NotesOptional 4POSTRAILKITWM enables installation in 4-port short-depth racks from 14.5 to 23.5 inches (368 to 597mm); Optional 4POSTRAILKIT1U enables installation in 4-post full-depth racks from 20.5 to 36 inches (521 to 914mm)

Primary UPS Depth (mm)425

Primary UPS Width (mm)445

Shipping Dimensions (hwd / in.)6.25 x 23.50 x 22.50

UPS Housing MaterialSteel

UPS Power Module Weight (kg)14.51

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation

Audible Alarm: Audible alarm indicates power-failure, overload and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147

Undervoltage Correction: Input voltages between 83 and 107 are boosted by 14%

Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%

Input

Rated input current (Maximum Load): 9.0A

UPS Input Connection Type: 5-15P

UPS Input Cord Length (ft.): 10

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers15A

Recommended Electrical Service15A 120V

Output

Output Volt Amp Capacity (VA): 1000

Output Watt Capacity (Watts): 800

Nominal Voltage Details: 120v nominal output in battery mode

Output Voltage Regulation (Line Mode): -21%, +8%

Load Management Receptacles: Two switchable single-outlet 5-15R load banks

Output AC Waveform (Battery Mode): Pure Sine wave

Output Receptacles: (6) 5-15R

Output kVA Capacity (kVA)1

Power Factor0.8

Frequency Compatibility60 Hz

Output Voltage Regulation (Battery Mode)+/- 5%

Output AC Waveform (AC Mode)Pure Sine wave

Nominal Output Voltage(s) Supported110V; 115V; 120V

Individually Controllable Load BanksYes

Communications

Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX

PowerAlert Software: For local monitoring via the UPS’s built-in USB or DB9 ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

Communications CableUSB and DB9 cabling included

Communications InterfaceUSB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

AC Mode Efficiency Rating (100% Load): 99%

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)39

Audible Noise45 dBA maximum, front side 1m

Overview

UPC Code: 037332218346

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Individually controllable load banks

Warranty

Product Warranty Period (Worldwide): 2-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 5 milliseconds AC to DC; 1 millisecond DC to AC

High Voltage Transfer to Battery Power (Setpoint): 147

Low Voltage Transfer to Battery Power (Setpoint)83
