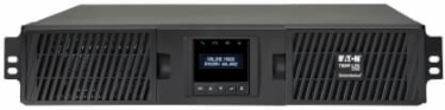

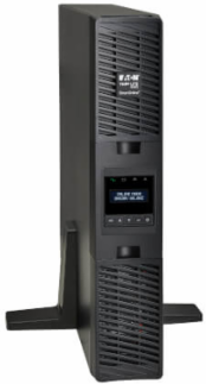

Tripp Lite SU3000RTXLCD2U SmartOnline UPS 3000VA 2700W Double-Conversion 2U Rackmount, LCD, USB
- MPN: SU3000RTXLCD2U
- UPC: 037332180100
- PPN: TRP-SU3000RTXLCD2U
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartOnline 3000VA 2700W 120V Double-Conversion UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower

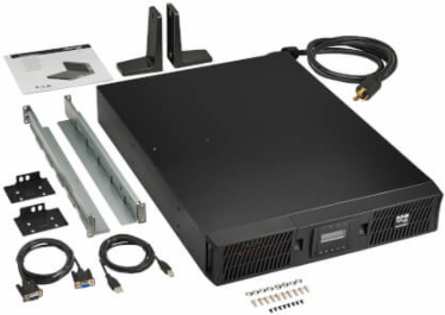

Features

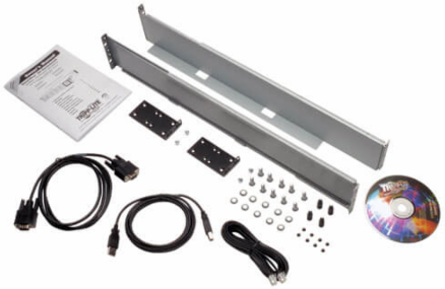

- USB cable
- DB9 RS232 cable
- Rack-mounting hardware

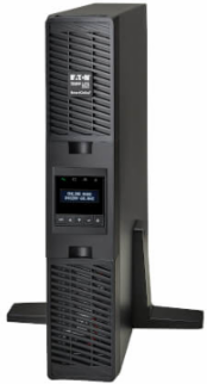

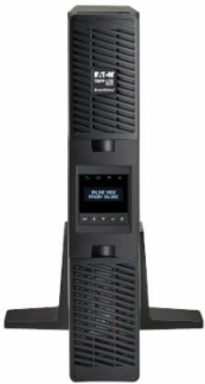

- Tower support stands
- Safety instructions
- Quick Start Guide
Documentation & Downloads
Specifications
Material
- UPS Housing Material
- Metal
- Cooling Method
- Fan
Battery TypeValve Regulated Lead Acid (VRLA)
Performance
- UPS Type
- On-Line
- Input Phase
- Single-Phase
- Maximum Input Amps
- 24
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation
- +/- 1%
- Battery Recharge Rate
- 3 hours recharge to 90%
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-96% non-condensing
- Audible Noise
- 47 dB at 1m
Output Capacity3000 VA
Rated Input Current24A
Nominal Voltage Details120V factory-default nominal voltage
Frequency Compatibility DetailsOnline Mode: Sync with line ±5% of nominal line frequency (outside this range: ±0.5% of auto-selected nominal frequency). Battery Mode: ±0.5% of auto-selected nominal frequency
Output AC WaveformPure Sine wave
AC Mode Efficiency Rating91.6%
Storage Temperature RangeWith battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C)
Operating Elevation0-10000 ft. (0-3000 m)
Dimensions
- UPS Input Connection Type
- L5-30P
- UPS Input Cord Length
- 8 ft

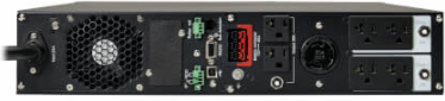

- Output Receptacles
- (6) 5-20R; (1) L5-30R
- Primary Form Factor
- Rackmount
- Unit Dimensions
- 3.410 x 17.330 x 23.820 in
- Communications Interface
- (1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB

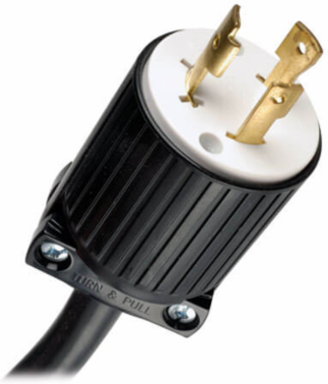

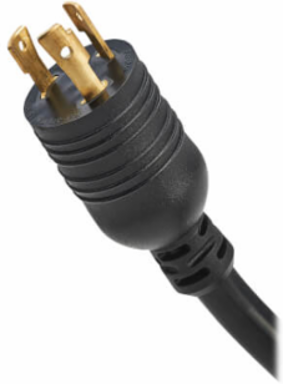

Input Plug TypeNEMA L5-30P
Recommended Electrical Service120V 30A
DC System Voltage72V
Minimum Required Rack Depth26.8 in
Unit Weight63.06 lb
Compliance
- Product Warranty Period
- 2-year limited warranty
