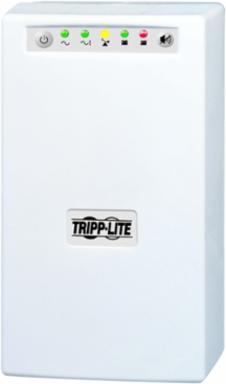

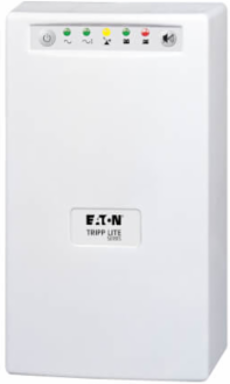

Tripp Lite SMART700HGL SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, Lithium Battery

SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, Lithium Battery - https://media.province-electric.com/tripplite/2020q1/f5b107d01751329aec24a3c278fa236756efbb0f-medium.png

SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, Lithium Battery

MPN: SMART700HGL
UPC: 037332192219
PPN: TRP-SMART700HGL

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4221.66/ EA

Qty:

Loading add to cart quantity...

Description

Provides UL 60601-1 compliant, medical-grade 700VA/450W power backup, ideal for use in patient-care vicinities. Lithium Iron Phosphate batteries provide 20–30 times the cycle life of traditional batteries.

Features

42 min. runtime at half load; 18 min. at full load
Reduces cumulative leakage current to under 100 μA
Floating AC output prevents noise coupling
940 joules of surge protection
10,000-cycle LiFePO4 battery
Approved for use within the Patient Care Vicinity
Approved to EN60601-1-2:2015 & IEC60601-1-2:2014, 4th Edition
5-year limited warranty
Provides Ideal UPS Backup in Healthcare Facilities
Battery Backup and Full Surge Protection
LEDs and Audible Alarms Keep You Aware of Power Status
Saves Your Files, Even When You’re Away

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 940

EMI / RFI AC Noise Suppression: Yes

AC Suppression Response Time: Instantaneous

UPS AC Suppression Response TimeInstantaneous

AC Suppression Joule Rating940

Battery

Full Load Runtime (min.): 18 min. (450w)

DC System Voltage (VDC): 36

Battery Access: Battery access door

Half Load Runtime (min.)42 min. (225w)

Battery Recharge Rate (Included Batteries)Less than 4 hours from 10% to 90%

Expandable RuntimeNo

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to UL1778 (USA); Tested to UL60601-1 (medical grade)

Physical

Cooling Method: Fan

Primary Form Factor: Tower

Primary UPS Height (mm): 325

Shipping Dimensions (hwd / in.): 17.00 x 11.20 x 13.00

UPS Housing Material: PVC

UPS Power Module Weight (kg): 15.30

Installation Form Factors Supported with Optional AccessoriesWallmount ( UPSWM - tower mounting kit)

Primary UPS Depth (mm)229

Primary UPS Width (mm)191

Shipping Weight (lbs.)35.43

UPS Power Module Dimensions (hwd, in.)12.8 x 7.5 x 9

UPS Power Module Weight (lbs.)33.73

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation

Audible Alarm: Audible alarm indicates power-failure, overload and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143

Undervoltage Correction: Input voltages between 96 and 106 are boosted by 10%

Overvoltage CorrectionInput voltages between 126 and 143 are reduced by 9%

Severe Undervoltage CorrectionInput voltages between 81 and 95 are boosted by 21%

Input

Rated input current (Maximum Load): 5.5A

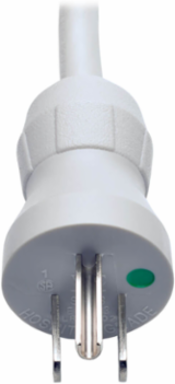

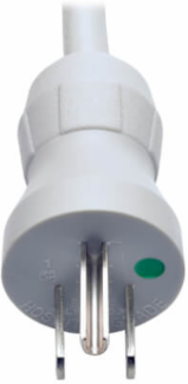

UPS Input Connection Type: 5-15P-HG

UPS Input Cord Length (ft.): 6

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers10A

Recommended Electrical Service15A 120V

Input Cord Length (ft.)6

Output

Output Volt Amp Capacity (VA): 700

Power Factor: 0.6

Output Voltage Regulation (Line Mode): -18%, +8%

Output Receptacle Details: Hospital grade output receptacles

Output AC Waveform (Battery Mode): PWM sine wave

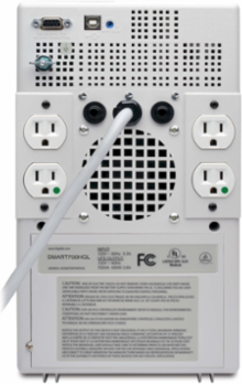

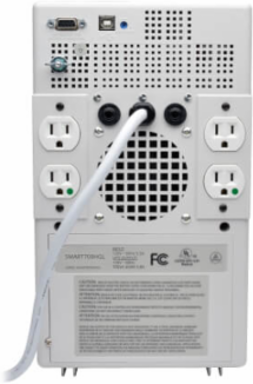

Output Receptacles: (4) 5-15R

Output Watt Capacity (Watts)450

Frequency Compatibility60 Hz

Output Voltage Regulation (Battery Mode)115V (+/- 5%)

Output AC Waveform (AC Mode)Sine wave

Nominal Output Voltage(s) Supported115V; 120V

Individually Controllable Load BanksNo

Communications

Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions

Communications Cable: USB and DB9 serial cabling included

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert

Communications InterfaceUSB; DB9 Serial

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 189.1

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)97.7

AC Mode Efficiency Rating (100% Load)94%

Overview

UPC Code: 037332192219

UPS TypeLine-Interactive

Isolation

Output Isolation Transformer: Hospital grade load isolation transformer

Leakage CurrentEqual to less than 100 microamps

Special Features

Grounding Lug: Grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS

Warranty

Product Warranty Period (Worldwide): 5-year limited warranty

Line / Battery Transfer

Transfer Time: 2-4 milliseconds

High Voltage Transfer to Battery Power (Setpoint): 143

Low Voltage Transfer to Battery Power (Setpoint)81
