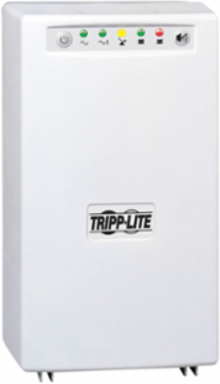

Tripp Lite SMART700HG SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, DB9

SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, DB9 - https://media.province-electric.com/tripplite/2020q1/e8a6589cf567edc5117c429d3941b50435a330b6-medium.png

SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, DB9

MPN: SMART700HG
UPC: 037332095107
PPN: TRP-SMART700HG

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1761.31/ EA

Qty:

Loading add to cart quantity...

Description

Provides UL 60601-1 compliant, medical-grade 700VA/450W power backup, ideal for use in patient-care vicinities. The built-in isolation transformer offers full isolation while maintaining AC surge protection in all modes.

Features

Supports a half load up to 42 minutes; full load up to 18 minutes
Four hospital-grade outlets and hospital-grade plug
480 joule surge suppression rating protects connected equipment
Alarm mute/alarm quiet control is ideal for use around patients
Approved for use within the Patient Care Vicinity
Approved to EN60601-1-2:2015 & IEC60601-1-2:2014, 4th Edition
2-year limited warranty

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 480

EMI / RFI AC Noise Suppression: Yes

AC Suppression Response Time: Instantaneous

UPS AC Suppression Response TimeInstantaneous

AC Suppression Joule Rating480

Battery

Full Load Runtime (min.): 18 min. (450w)

DC System Voltage (VDC): 36

Internal UPS Replacement Battery Cartridge: RBC36SLT

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)42 min. (225w)

Battery Recharge Rate (Included Batteries)Less than 4 hours from 10% to 90%

Battery AccessBattery access door

Expandable RuntimeNo

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to UL1778 (USA); Tested to UL60601-1 (medical grade)

Physical

Cooling Method: Fan

Primary Form Factor: Tower

Primary UPS Height (mm): 325

Shipping Dimensions (hwd / in.): 17.00 x 11.20 x 13.00

UPS Housing Material: PVC

UPS Power Module Weight (kg): 20.05

Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)

Primary UPS Depth (mm)229

Primary UPS Width (mm)191

Shipping Weight (lbs.)45.90

UPS Power Module Dimensions (hwd, in.)12.8 x 7.5 x 9

UPS Power Module Weight (lbs.)44.2

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation

Audible Alarm: Audible alarm indicates power-failure, overload and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143

Undervoltage Correction: Input voltages between 96 and 106 are boosted by 10%

Overvoltage CorrectionInput voltages between 126 and 143 are reduced by 9%

Severe Undervoltage CorrectionInput voltages between 81 and 95 are boosted by 21%

Input

Rated input current (Maximum Load): 5.5A

UPS Input Connection Type: 5-15P-HG

UPS Input Cord Length (ft.): 6

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers10A

Recommended Electrical Service15A 120V

Input Cord Length (ft.)6

Output

Output Volt Amp Capacity (VA): 700

Power Factor: 0.6

Output Voltage Regulation (Line Mode): -18%, +8%

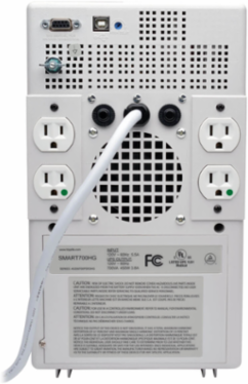

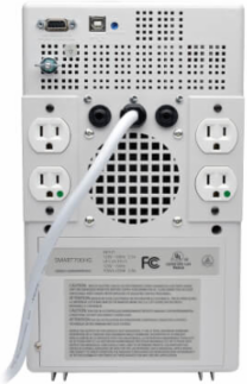

Output Receptacle Details: Hospital grade output receptacles

Output AC Waveform (Battery Mode): PWM sine wave

Output Receptacles: (4) 5-15R

Output Watt Capacity (Watts)450

Frequency Compatibility60 Hz

Output Voltage Regulation (Battery Mode)115V (+/- 5%)

Output AC Waveform (AC Mode)Sine wave

Nominal Output Voltage(s) Supported115V; 120V

Individually Controllable Load BanksNo

Communications

Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions

Communications Cable: USB and DB9 serial cabling included

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert

Communications InterfaceUSB; DB9 Serial

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 189.1

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)97.7

AC Mode Efficiency Rating (100% Load)94%

Overview

UPC Code: 037332095107

UPS TypeLine-Interactive

Isolation

Output Isolation Transformer: Hospital grade load isolation transformer

Leakage CurrentEqual to 100 microamps

Special Features

Grounding Lug: Grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS

Warranty

Product Warranty Period (Worldwide): 2-year limited warranty

Line / Battery Transfer

Transfer Time: 2-4 milliseconds

High Voltage Transfer to Battery Power (Setpoint): 143

Low Voltage Transfer to Battery Power (Setpoint)81
