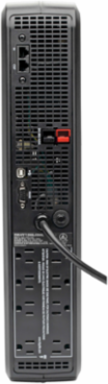

Tripp Lite SMART1500LCDXL SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, AVR, Extended Runtime, 2U Rack/Tower, LCD, USB, DB9, 8 Outlets

SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, AVR, Extended Runtime, 2U Rack/Tower, LCD, USB, DB9, 8 Outlets - https://media.province-electric.com/tripplite/2020q1/f205e7d3aaf565e0ae335dfdbb6f90985a2b2efb-medium.png

SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, AVR, Extended Runtime, 2U Rack/Tower, LCD, USB, DB9, 8 Outlets

Tripp Lite SMART1500LCDXL SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, AVR, Extended Runtime, 2U Rack/Tower, LCD, USB, DB9, 8 Outlets

MPN: SMART1500LCDXL
UPC: 037332159885
PPN: TRP-SMART1500LCDXL

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1051.56/ EA

Qty:

Loading add to cart quantity...

Description

Provides reliable 1500VA/900W power protection with expandable runtime for your desktop computer, network workstation, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts.

Features

Supports a half-load (450W) up to 12 min. during power outage
Supports a full load (900W) up to 4 min. during power outage
Features 8 protected NEMA 5-15R outlets
Offers automatic voltage regulation (AVR)
Extends runtime with optional BP24V15RT2U external battery pack
3-year limited warranty
$250,000 Ultimate Lifetime Insurance
Reliable Battery Backup
Optimized Outlets
Automatic Voltage Regulation (AVR)
Rotatable LCD Status Screen
AC Line, Tel/DSL and Ethernet Surge Suppression
EMI/RFI Line Noise Filtering
USB and DB9 Communication Ports and Free PowerAlert Software
Flexible Installation Options

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 1038

UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

UPS AC Suppression Response TimeInstantaneous

EMI / RFI AC Noise SuppressionYes

Battery

Full Load Runtime (min.): 4 min. (900w)

Expandable Battery Runtime: Extended runtime supported via optional external battery pack (limit 1)

DC System Voltage (VDC): 24

Internal UPS Replacement Battery Cartridge: See RBC Selector for replacement battery information

Expandable Runtime: Yes

Half Load Runtime (min.)12 min. (450w)

External Battery Pack CompatibilityBP24V15RT2U (limit 1)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%

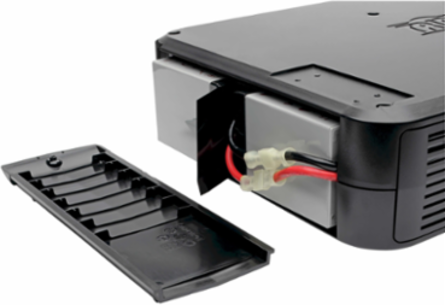

Battery AccessBattery access door enables hot-swappable, user replaceable internal battery

Certifications

UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)

Physical

Cooling Method: Fan

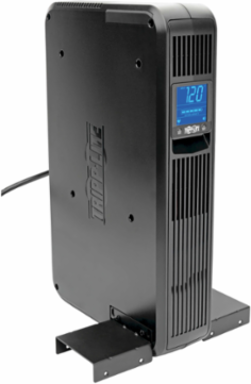

Installation Form Factors Supported with Included Accessories: 2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower

Minimum Required Rack Depth with External Battery Pack (in.): 13.5

Minimum Required Rack Depth without External Battery Pack (in.): 13.5

Primary UPS Depth (mm): 267

Primary UPS Width (mm): 439

Shipping Dimensions (hwd / in.): 7.40 x 15.00 x 21.20

UPS Housing Material: Polycarbonate

UPS Power Module Weight (kg): 13.34

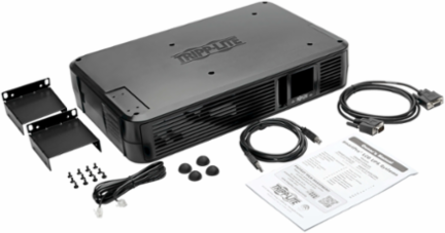

Included Mounting Accessory DescriptionIncluded mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement installation

Minimum Required Rack Depth with External Battery Pack (cm)34

Minimum Required Rack Depth without External Battery Pack (cm)34

Primary Form FactorRackmount

Primary UPS Height (mm)89

Rack Height2U

Shipping Weight (lbs.)33.20

UPS Power Module Dimensions (hwd, in.)3.5 x 17.3 x 10.5

UPS Power Module Weight (lbs.)29.4

User Interface, Alerts & Controls

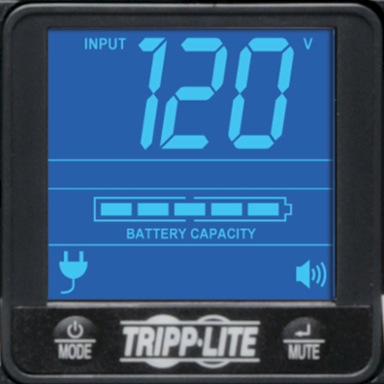

Front Panel LCD Display: LCD interface reports Input Voltage, Output Voltage, Battery Charge Percentage, Estimated Runtime in Minutes, Load Percentage, Load Watts; Additional LCD icons report battery charge level (5 "bars"), Line Power Mode, Battery Mode, Replace Battery and Auto-Voltage Regulation / AVR status; LCD interface control options include Alarm Disable, Display Scrolling, Initiate Self-test, LCD brightness, External Battery setting and line sensitivity

Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

Switches2 Switches control off/on power status and alarm-cancel/self-test operation

Audible AlarmAudible alarm indicates power-failure and low-battery conditions; Alarm can be permanently silenced via LCD interface

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147

Undervoltage Correction: Input voltages between 93 and 107 are boosted by 14%

Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 75 and 92 are boosted by 30%

Input

Rated input current (Maximum Load): 8.6A

UPS Input Connection Type: 5-15P; Right-Angled

UPS Input Cord Length (ft.): 6

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported110V AC; 115V AC; 120V AC

Input Circuit Breakers10A

Recommended Electrical Service15A 120V

Output

Output Volt Amp Capacity (VA): 1500

Output Watt Capacity (Watts): 900

Nominal Voltage Details: 115v nominal output in battery mode

Output Voltage Regulation (Line Mode): -18%, +8%

Output AC Waveform (AC Mode): Sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: No

Output kVA Capacity (kVA)1.50

Output kW Capacity (kW)0.90

Frequency Compatibility60 Hz

Output Voltage Regulation (Battery Mode)+/- 5%

Output AC Waveform (Battery Mode)PWM sine wave

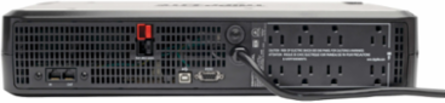

Output Receptacles(8) 5-15R

Communications

Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; DB9 port also supports contact-closure messaging for power-fail (pins 1 & 9) and power-restored (pins 1, 8)

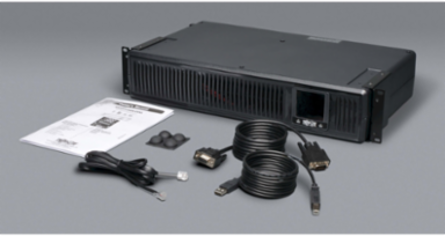

Communications Cable: USB and DB9 Serial cabling included

Communications Interface: USB (HID enabled); DB9 Serial; Contact closure

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: Up to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 721

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)78

AC Mode Efficiency Rating (100% Load)97%

Overview

UPC Code: 037332159885

UPS TypeLine-Interactive

Special Features

Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS

Warranty

Product Warranty Period (U.S. & Canada): 3-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 4 milliseconds AC to battery mode / 3 milliseconds battery to AC mode

High Voltage Transfer to Battery Power (Setpoint): 147

Low Voltage Transfer to Battery Power (Setpoint)75
