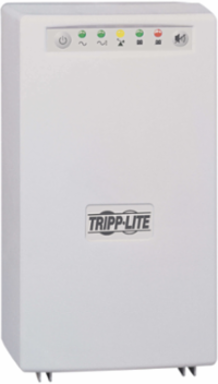

Tripp Lite SMX1200XLHGL SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 1kVA, 750W, Full Isolation
Tripp Lite SMX1200XLHGL SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 1kVA, 750W, Full Isolation
- MPN: SMX1200XLHGL
- UPC: 037332224798
- PPN: TRP-SMX1200XLHGL
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4000.16/ EA
Description
SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 1kVA, 750W, Full Isolation
Features
- Lithium battery backup allows time to save files and safely shut down during blackouts
- 6 C13 hospital-grade (HG) outlets provide power to medical equipment
- Approved for use within the Patient Care Vicinity
- Approved to EN60601-1-2:2015, 4th Edition
- Alarm and front-panel LEDs report online, battery, fault and overload conditions
- 10,000-cycle LiFePO4 battery lasts up to 30x longer than comparable SLA batteries
- 2-year limited warranty
- 1kVA/750W Medical-Grade UPS Allows Time to Back Up Critical Files During a Blackout
- Long-Lasting LiFePhos Battery Handles up to 10,000 Cycles with Ease
- Automatic Voltage Regulation (AVR) Corrects Potentially Hazardous Voltage Fluctuations
- Built-In Isolation Transformer Offers Full Isolation

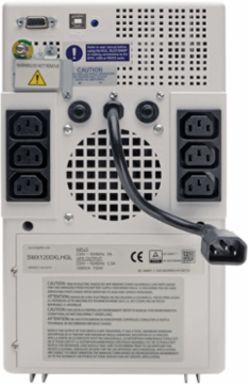

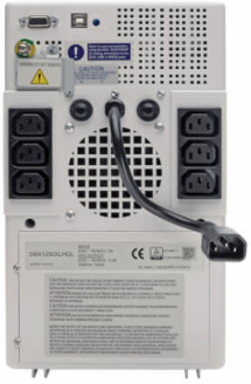

- Connect Your Equipment to 6 IEC 320 C13 Outlets
- Combats Electromagnetic Interference That Can Harm Equipment
- Easy-to-Read LEDs and Alarm Report Real-Time UPS and Power Status
- Saves Your Files, Even When You’re Away
- Tower Form Factor for Easy Placement on a Nurse’s Station or Mobile Medical Cart
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 340
- AC Suppression Response Time
- Instantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 11 min. (750w)
- DC System Voltage (VDC)
- 36
- Internal UPS Replacement Battery Cartridge
- RBC53L
- Typical Battery Lifespan
- 3-6 years, depending on usage
Half Load Runtime (min.)27.5 min. (375w)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%
Battery AccessBattery access door allows hot swap battery replacement without powering connected equipment off
Expandable RuntimeNo
Certifications
- UPS Certifications
- CE; Tested to UL60601-1 (medical grade)
Physical
- Cooling Method
- UPS cooling via rear-exit fan
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 323
- Shipping Dimensions (hwd / in.)
- 18.50 x 12.20 x 13.38
- UPS Power Module Dimensions (hwd, in.)
- 12.7 x 7.5 x 9.1
- UPS Power Module Weight (lbs.)
- 45.5
Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)
Primary UPS Depth (mm)231
Primary UPS Width (mm)191
UPS Housing MaterialPVC
UPS Power Module Weight (kg)20.64
User Interface, Alerts & Controls
- Switches
- Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
- LED Indicators
- 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Audible AlarmAudible Alarm is factory muted for silent operation; Audible alarm can be restored to indicate power failure, overload conditions and Low Battery events using our Free Power Alert UPS management software.
Voltage Regulation
- Voltage Regulation Description
- Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to maintain usable, computer grade output without consuming battery power over an input voltage range of 155 to 274V AC.
- Undervoltage Correction
- Input voltages between 183 and 199 are boosted by 10%
Overvoltage CorrectionInput voltages between 245 and 274V AC are reduced by 9%
Severe Undervoltage CorrectionInput voltages between 156 and 182 are boosted by 21%
Input
- Rated input current (Maximum Load)
- 5A
- UPS Input Connection Type
- C14 inlet
- Recommended Electrical Service
- 10A 230V
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported230V AC
UPS Input Cord Length (ft.)0.50
Voltage Compatibility (VAC)230
Output
- Output Volt Amp Capacity (VA)
- 1000
- Nominal Voltage Details
- 230v nominal inverter output voltage
- Frequency Compatibility Details
- Automatic frequency selection
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (6) C13
Output Watt Capacity (Watts)750
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Line Mode)-18%, +8%
Nominal Output Voltage(s) Supported220V; 230V; 240V
Individually Controllable Load BanksNo
Communications
- Communications Interface
- USB; DB9 Serial
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 252.2
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)252.2
Overview
- UPC Code
- 037332224798
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Ground Potential Equalization Connector: POAG-S6/20
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (International)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 274
Low Voltage Transfer to Battery Power (Setpoint)155
