Tripp Lite SRW12USDP 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, 24.5 Inch Deep, 200 lb Capacity
- MPN: SRW12USDP
- UPC: 037332189691
- PPN: TRP-SRW12USDP
CAD
$1368.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

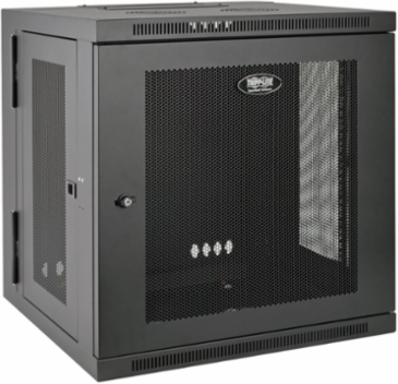

Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment in network closets and other locations with limited floor space. Houses UPS systems and related battery packs and cabling up to 24.5 inches deep.
Features
- Maximum load capacity of 200 lb.

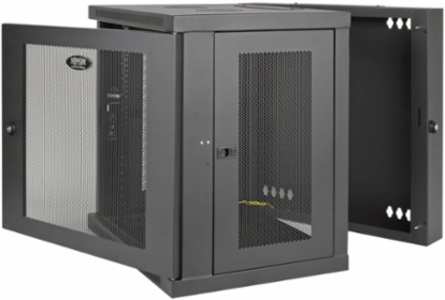

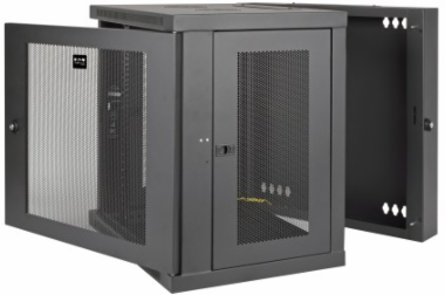

- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 24.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Rack Height
- 12U
- Minimum Device Depth
- 3 in.
- Unit Dimensions (H x W x D)
- 25.06 x 23.63 x 25.5 in.
- Rack Depth
- Shallow
- Mounting Hole Spacing
- 16 in.

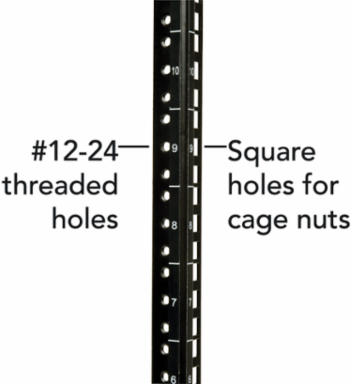

- Mounting Hole Type
- Square-hole, 12-24 threaded
- Material
- Steel
- Door
- Reversible (180 rotation)
- Security Features
- Locking doors and side panels
- Compliance
- PCI DSS, EIA-310-E, IEC 60297-3-100, IP20, RoHS
- Color
- Black
Maximum Device Depth24.5 in.
Weight Capacity - Stationary200 lb
Unit Weight63.5 lb
Mount TypeWall-mount
Vertical Rail Adjustment Increment7/8 in.
Cable Access Hole Size9.812 x 2.35 in.
FinishBlack powder-coated
VentilationVented panels front, top, bottom, sides
Grounding LugFront and back door frames
Product Warranty Period5-year limited warranty
Rack TypeEnclosure
