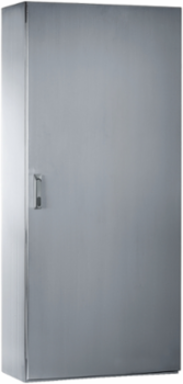

Schneider Electric NSYSMX18840 Spacial SMX 304L Stainless Steel Enclosure, H1800 x W800 x D400 mm, IP66

MPN: NSYSMX18840
PPN: SCH-NSYSMX18840

Spec sheet

Compare

Loading compare button...

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Description

Spacial SMX stainless steel monobloc enclosure. 1799 x 800 x 400 mm. Compact floor standing enclosure. No mounting plate included. 1 door(s). Single piece body folded and welded. 3 points lock, handle with 5 mm double-bar insert. Stainless steel 304L, Scotch-Brite brushed finish. Certifications is UL 508, CAN/CSA 22. IP54, IK10. Corrosive, Specific hygiene characteristic.

Specifications

Environment

Product Certifications: CAN/CSA 22 || UL 508

Environmental Characteristic: corrosive || specific hygiene

Ip Degree Of Protection: IP66 IEC 60529

Ik Degree Of ProtectionIK10 IEC 62262

StandardsIEC 62208

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2107011EN

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Accessibility For Operation: front

Body Type: single piece body folded and welded

Material: body and door stainless steel 304L || handle zamak || hinge stainless steel

Lock Type: 3 points lock, handle with 5 mm double-bar insert

Net Weight: 98 kg

Mounting Plate Description: without mounting plate

Removable Partsdoor by hinges || mounting plate bracket by screws || cable gland plate by clips

Type Of Gland Plateplain

Surface Finishenclosure Scotch-Brite® brushed || handle painted

Door Typeplain

Door Opening Sidereversible 120 °)

Number Of Doorsfront face 1

Specifications

Installation Accessory Type: floor-standing

Product Name: Spacial SMX

Enclosure Nominal Height: 1800 mm

Device Application: multi-purpose

Range: Spacial

Product Or Component Typecompact enclosure

Device Composition1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door

Enclosure Nominal Depth400 mm

Enclosure Nominal Width800 mm
