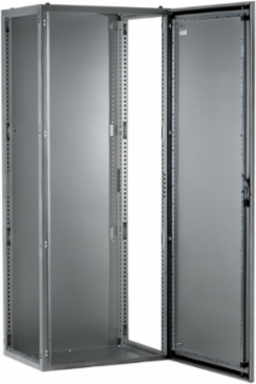

SFX 304L Stainless Steel Enclosure H1800 x W800 x D400 mm, IP66
Schneider Electric

Schneider Electric NSYSFX18840 SFX 304L Stainless Steel Enclosure H1800 x W800 x D400 mm, IP66

  • MPN: NSYSFX18840
  • PPN: SCH-NSYSFX18840
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    The Schneider Electric NSYSFX18840 SFX enclosure is crafted from durable 304L stainless steel, ensuring exceptional protection for your sensitive equipment. With an IP66 rating, it offers robust defense against dust and water ingress, making it ideal for challenging environments. Measuring 1800 mm in height, 800 mm in width, and 400 mm in depth, this enclosure is designed to accommodate a variety of IT and automation applications. Its reliable construction and thoughtful design make it a valuable solution for safeguarding critical components in data communication and control systems.

    Documentation & Downloads

    Specifications

    Additional

    IP Degree of Protection
    IP66 IEC 60529
    Standards
    IEC 62208, NEMA 4X
    Net Weight
    90 kg (198.42 lb)
    Width
    800 mm
    Number of Doors
    1 (front face)
    Door Opening Side
    Reversible 120°
    Type of Gland Plate
    Plain
    Material
    304L Stainless Steel structure and door, Zamak handle, Stainless Steel hinge
    Body Type
    Single piece structure folded and welded, rear panel integrated
    IK Degree of ProtectionIK10 IEC 62262
    Product CertificationUL
    Height1800 mm
    Depth400 mm
    Door TypePlain, Solid
    Lock Type3 points lock, handle with 5 mm double-bar insert
    Mounting Plate DescriptionWithout mounting plate
    Surface FinishScotch-Brite® brushed enclosure; handle painted
    Environmental CharacteristicCorrosive, Specific hygiene
