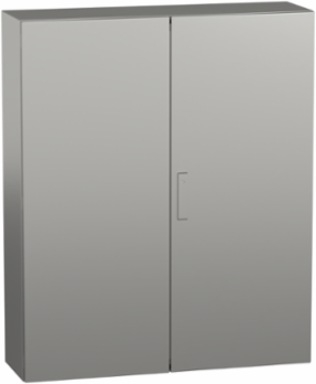

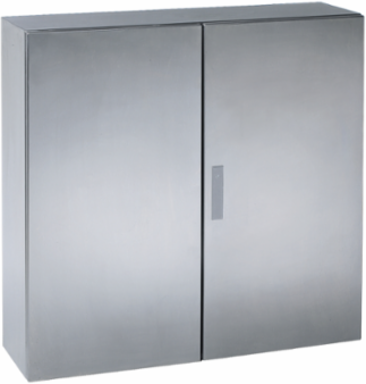

Schneider Electric NSYS3X121030 Spacial S3X Wall Mounted Enclosure, 1200 x 1000 x 300 mm, IP55, Stainless Steel 304L

MPN: NSYS3X121030
PPN: SCH-NSYS3X121030

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$3991.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This wall-mounted enclosure from Schneider Electric is designed to provide robust protection and functionality for a variety of automation and control applications. Crafted from durable stainless steel 304L, it ensures resistance against corrosion and harsh environmental conditions, making it ideal for both indoor and outdoor installations. With an IP55 rating, the enclosure offers significant ingress protection, safeguarding sensitive equipment from dust and water. Measuring 1200 x 1000 x 300 mm, it provides ample space for housing electrical components and communication devices, making it a versatile solution for modern data and communication needs.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Bulgaria, Brazil, Spain

Physical Attributes

Enclosure Nominal Height	1200 mm

Enclosure Nominal Width	1000 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Body Type	single piece body, cross-shaped structure, gutter shaped front rail
Door Type	Solid, Solid
Certificate Agency	CAN/CSA 22, UL 508 type A
Carbon Footprint Of The End-of-life Phase [C1 To C4]	136 kg CO2 eq., 135.97661963898636
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	529 kg CO2 eq., 528.6346710649485
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Door Opening Side	reversible 120 °)
Lock Type	3 points lock, 3 mm double-bar
Mounting Plate Description	without mounting plate
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	compact enclosure
Removable Parts	door by hinges
Software Version	v6.2.3
Sustainable Packaging	No
Type Of Gland Plate	without gland plate
Pep Code	ENVPEP2109018EN
Pep Verification Date	2024-11-13
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Package Weight(Lbs)	51.800 kg
Take-back	No
Customs Code	9403200090

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 body2 door1 lock door, 1 reinforcement frame drilled door
Environmental Characteristic	specific hygiene, corrosive
Carbon Footprint Of The Distribution Phase [A4]	102.8397150111744, 103 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	2.5712493122784417, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Material	body and door stainless steel 304Lhinge stainless steel
Number Of Doors	front face 2
Product Name	Spacial S3X
Range	Spacial
Returnability	Yes
Surface Finish	body and door Scotch-Brite® brushed
Total Lifecycle Carbon Footprint	770 kg CO2 eq.
Locking Description	3 points lock, 3 mm double-bar
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure having the following dimensions H x L x D, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Bulgaria, BG
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Environmental Disclosure	ENVPEP2109018EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-11-13
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	770.0222550273878
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2109018EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
