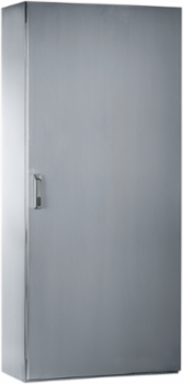

Schneider Electric NSYSMX18640 Spacial SMX 304L Stainless Steel Enclosure 1800x600x400mm IP66
- MPN: NSYSMX18640
- PPN: SCH-NSYSMX18640
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric NSYSMX18640 is a robust stainless steel enclosure designed to house sensitive equipment and ensure optimal protection in demanding environments. Measuring 1800x600x400mm and featuring an IP66 rating, this enclosure is built to withstand dust and water ingress, making it an ideal choice for automation, control, and data communication applications. Its durable construction allows for reliable performance, safeguarding critical components in various industrial settings. Whether used in harsh outdoor conditions or within complex IT infrastructures, this enclosure delivers the security and integrity needed for essential operations.
Documentation & Downloads
Specifications
Additional
- Product Or Component Type
- compact enclosure
- Product Certifications
- CAN/CSA 22 UL 508
- IP Degree of Protection
- IP66 IEC 60529
- Material
- body and door stainless steel 304L, handle zamak, hinge stainless steel
- Enclosure Nominal Height
- 1800 mm
- Enclosure Nominal Depth
- 400 mm
- Body Type
- single piece body folded and welded
- Door Opening Side
- reversible 120b0
- Lock Type
- 3 points lock, handle with 5 mm double-bar insert
- Accessibility For Operation
- front
- Installation Accessory Type
- floor-standing
- Handle Material
- zamak
- Environmental Characteristic
- corrosive, specific hygiene
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- China RoHS Regulation
- Product out of China RoHS scope, substance declaration provided
- Mercury Free
- Yes
RangeSpacial
StandardsIEC 62208
IK Degree of ProtectionIK10 IEC 62262
Dimensions1800 x 600 x 400 mm (height x width x depth)
Enclosure Nominal Width600 mm
Net Weight85 kg (187.39 lb)
Door Typeplain solid
Number Of Doors1 front face
Type Of Gland Plateplain
Mounting Plate Descriptionwithout mounting plate
Surface FinishScotch-Briteae brushed enclosure, painted handle
Hinge Materialstainless steel
Sustainable Offer StatusGreen Premium product
EU RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
RoHS Exemption InformationYes
Warranty18 months
