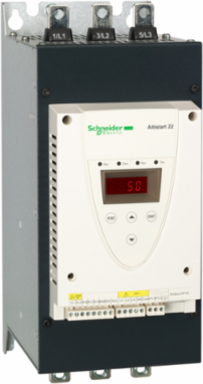

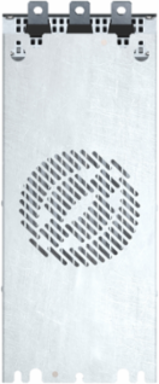

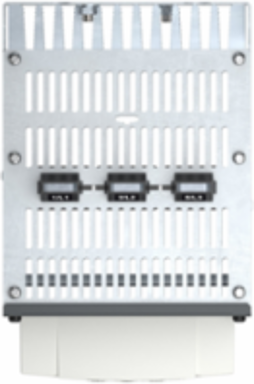

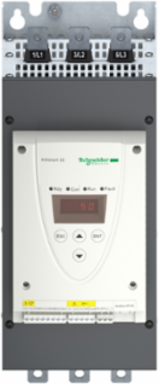

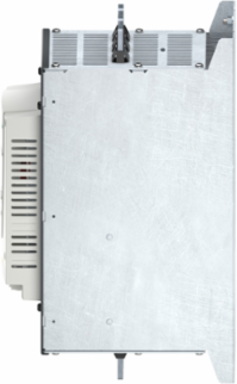

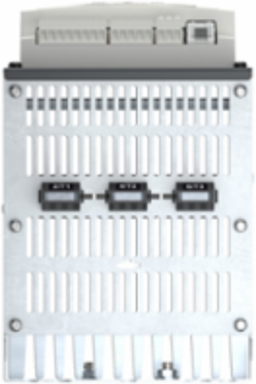

Schneider Electric ATS22C17S6 Altistart 22 Soft Starter, 45-110 kW, 230-500V, 170A, IP00

  • MPN: ATS22C17S6
  • PPN: SCH-ATS22C17S6
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $4036.52

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 170A, a rated power from 45kW to 110kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, United States
    Depth229.5 mm

    Communications & Management Attributes

    Communication Data Link
    serial
    Communication Port ProtocolModbus

    Complementary Attributes

    Maximum Switching Current
    5 A 250 V AC resistive 1 relay outputs, 5 A 30 V DC resistive 1 relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
    Minimum Switching Current
    100 mA 12 V DC relay outputs)
    Control Circuit Consumption20 W

    Important Information Attributes

    Persona Type Ids
    EU, LC, PB
    Electromagnetic Compatibility
    conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
    Protection Type
    phase failure line, thermal protection motor, thermal protection starter
    Certificate Agency
    CCC, GOST, CSA, UL, C-tick
    Local Publishable Date
    2026-06-08
    Stocking Flag
    N
    Device Type
    Soft starter - Soft starter
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1923
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Market Segmentation
    Industrial
    Assembly Style
    with heat sink
    Connector Type
    1 RJ45
    Device Connection
    in the motor supply line
    Function Available
    internal bypass
    Installed Device
    31
    Network Frequency
    45...66 Hz
    Operating Position
    vertical +/- 10 degree
    Power Dissipation In W
    91 W for standard applications
    Product Destination
    asynchronous motors
    Product Specific Application
    pumps and fans
    Returnability
    Yes
    Supply Frequency
    50...60 Hz - 10...10 %
    Sustainable Packaging
    No
    Type Of Cooling
    forced convection
    Utilisation Category
    AC-53A
    Height Nominal
    356 mm
    [Uc] Control Circuit Voltage
    230 V - 15...10 % 50/60 Hz
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesEnd User, Contractor, Panel Builder
    Motor Power Kw45 kW 230 V, 90 kW 400 V, 90 kW 440 V, 110 kW 500 V
    Vibration Resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Component NameATS22
    Control Circuit Consumption20 W
    Factory Setting Current156 A
    Icl Starter Rating170 A connection in the motor supply line for standard applications
    MarkingCE
    Noise Level56 dB
    Phase3 phase
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typesoft starter
    Range Of ProductAltistart 22
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Voltage Limits195-660 V
    Transmission Rate4800, 9600 or 19200 bps
    Type Of Startstart with torque control (current limited to 3.5 In)
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal150 mm
    [Us] Rated Supply Voltage230...600 V - 15...10 %
    Package Weight(Lbs)13.52 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-60 °C (with current derating 2.2 % per °C)
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP00
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    0-95 % without condensation or dripping water IEC 60068-2-3
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altistart 22
    Product Or Component Typesoft starter

    ETIM

    ETIM 8
    EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Type
    relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
    Output Current
    0.4...1 Icl adjustable
    Discrete Output Number2

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive logic LI1, LI2, LI3 11 V, >= 5 mA
    Discrete Input Type
    LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
    Ptc Probe Input
    750 Ohm
    Discrete Input Number3
    Discrete Input Voltage24 V <= 30 V

    Accessories
