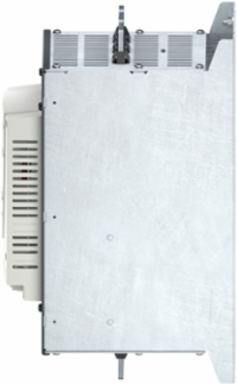

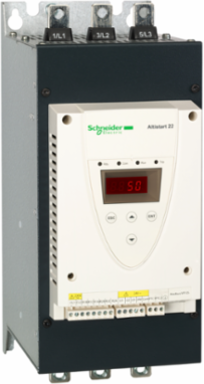

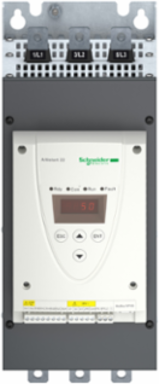

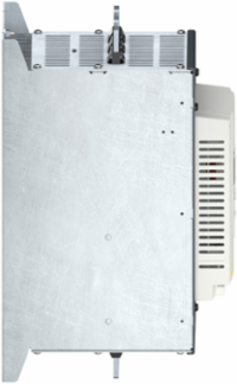

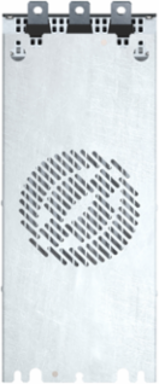

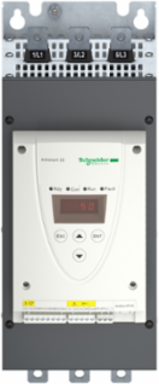

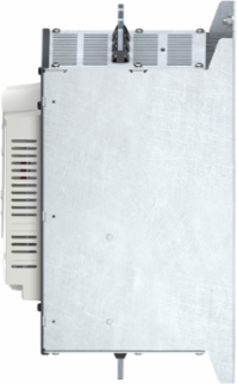

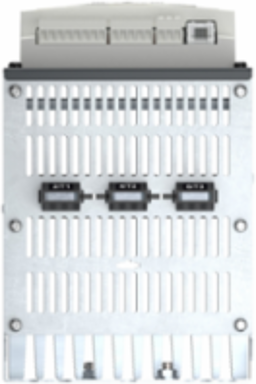

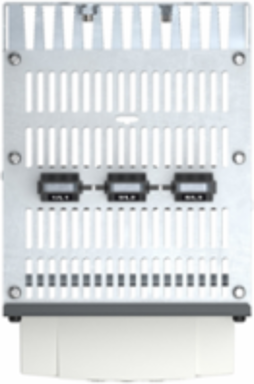

Schneider Electric ATS22C17S6U Altistart 22 Soft Starter, 50-150 hp, 110V-575V, IP00
- MPN: ATS22C17S6U
- PPN: SCH-ATS22C17S6U
CAD
$4036.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 170A, a rated power from 50HP to 150HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Features
- Custom-engineered to eliminate the harsh mechanical and electrical stresses of across-the-line starting, this solid-state module provides smooth, controlled acceleration and deceleration for three-phase squirrel-cage asynchronous motors. By regulating voltage and utilizing advanced torque-control algorithms, it limits starting current spikes and minimizes mechanical water hammer or belt slippage, making it perfect for driving heavy-duty centrifugal pumps, fans, screw compressors, and material handling systems.
- Belonging to the dependable Altistart 22 product line, this high-capacity soft starter features a robust continuous rating of 170 Amps for standard applications. It operates seamlessly across a wide line voltage spectrum ranging from 208V to 600V AC (50/60 Hz). Depending on your line voltage, it supports a broad range of heavy-duty motor loads:50 hp at 208V AC; 60 hp at 230V AC; 125 hp at 460V AC; 150 hp at 575V AC
- Designed with an integrated internal bypass contactor, the starter drastically reduces thermal output and energy consumption once the motor reaches full operating speed. After concluding the programmed voltage ramp, the unit automatically switches the load from its solid-state SCR paths over to the internal bypass contactor. This decreases power dissipation to just 91 Watts during steady-state runs, maximizing cabinet space by eliminating the need for bulky, external bypass hardware and auxiliary heatsink sizing.
- The controller requires a standard 110V AC (50/60 Hz) control circuit voltage to power its logic board.
- he interface includes 3 discrete logic inputs (LI1, LI2, LI3), a dedicated PTC probe input for direct motor winding temperature monitoring, an embedded RJ45 Modbus serial communication port, and 2 configurable changeover relay outputs (R1, R2) for reporting status indicators like "running," "ready," or "tripped."
- Engineered with a space-saving, slim form factor to optimize panel density, the module measures approximately 14.02 inches high, 5.91 inches wide, and 9.06 inches deep (356 x 150 x 229.5 mm) with a net weight of nearly 40 lbs (18 kg). It features an IP00 open-chassis protection rating, requiring vertical panel mounting inside a suitable enclosure. Backed by built-in advanced diagnostic monitors including phase-failure protection, line imbalance tracking, and Class 10/20/30 electronic thermal overload protection this soft starter is fully UL, CSA, and CCC certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Singapore, United States
Depth229.5 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus
Complementary Attributes
- Maximum Horse Power Rating
- 125 hp 460 V, 150 hp 575 V, 50 hp 208 V, 60 hp 230 V
- Control Circuit Consumption
- 20 W
Maximum Switching Current5 A 250 V AC resistive 1 relay outputs, 5 A 30 V DC resistive 1 relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
Minimum Switching Current100 mA 12 V DC relay outputs)
Important Information Attributes
- Persona Type Ids
- EU, LC, PB
- Electromagnetic Compatibility
- conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
- Vibration Resistance
- 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Component Name
- ATS22
- Control Circuit Consumption
- 20 W
- Factory Setting Current
- 156 A
- Icl Starter Rating
- 170 A connection in the motor supply line for standard applications
- Marking
- CE
- Noise Level
- 56 dB
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- soft starter
- Range Of Product
- Altistart 22
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Voltage Limits
- 177-660 V
- Transmission Rate
- 4800, 9600 or 19200 bps
- Type Of Start
- start with torque control (current limited to 3.5 In)
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 150 mm
- [Us] Rated Supply Voltage
- 208...600 V - 15...10 %
- Package Weight(Lbs)
- 13.28 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Panel Builder
Protection Typephase failure line, thermal protection motor, thermal protection starter
Certificate AgencyCSA, GOST, CCC, C-tick, UL
Local Publishable Date2026-03-25
Stocking FlagY
Device TypeSoft starter - Soft starter
TraceabilityYes
Average Life Duration10 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1923
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Assembly Stylewith heat sink
Connector Type1 RJ45
Device Connectionin the motor supply line
Function Availableinternal bypass
Installed Device31
Network Frequency45...66 Hz
Operating Positionvertical +/- 10 degree
Power Dissipation In W91 W for standard applications
Product Destinationasynchronous motors
Product Specific Applicationpumps and fans
ReturnabilityYes
Supply Frequency50...60 Hz - 10...10 %
Sustainable PackagingNo
Type Of Coolingforced convection
Utilisation CategoryAC-53A
Height Nominal356 mm
[Uc] Control Circuit Voltage110 V - 15...10 % 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-60 °C (with current derating 2.2 % per °C)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP00
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 % without condensation or dripping water IEC 60068-2-3
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altistart 22
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Output Current
- 0.4...1 Icl adjustable
Discrete Output Number2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive logic LI1, LI2, LI3 79 V, <= 2 mA
- Discrete Input Type
- LI1, LI2, LI3) logic, 5 mA 20 kOhm
- Ptc Probe Input
- 750 Ohm
Discrete Input Number3
Discrete Input Voltage110 V <= 121 V
