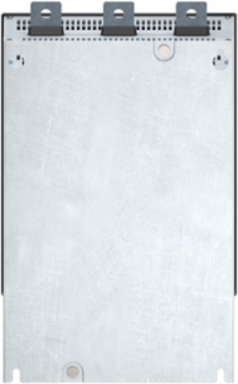

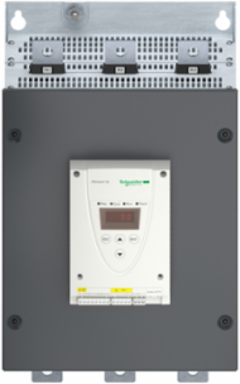

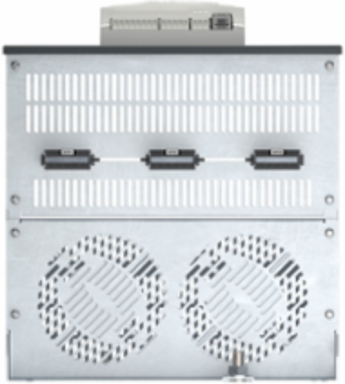

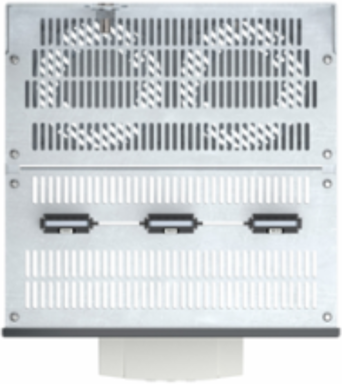

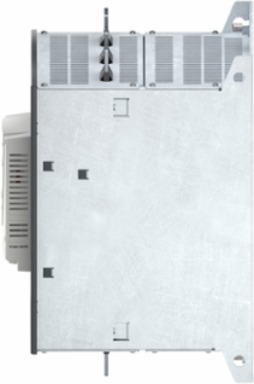

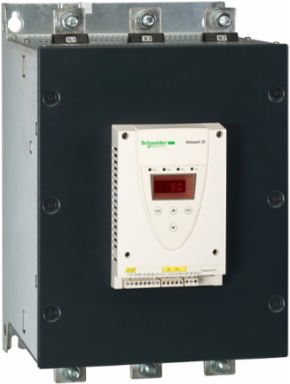

Schneider Electric ATS22C48S6 Altistart 22 Soft Starter, 230-500V, 132-315kW, 3 Phase, 480A
- MPN: ATS22C48S6
- PPN: SCH-ATS22C48S6
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 480A, a rated power from 132kW to 315kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Depth339.7 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus
Complementary Attributes
- Maximum Switching Current
- 5 A 250 V AC resistive 1 relay outputs, 5 A 30 V DC resistive 1 relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
- Minimum Switching Current
- 100 mA 12 V DC relay outputs)
- Us Rated Supply Voltage
- 230...600 V - 15...10 %
Control Circuit Consumption20 W
Uc Control Circuit Voltage230 V - 15...10 % 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, PB
- Electromagnetic Compatibility
- conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
- Power Range
- 110-220 kW 200-240 V 3 phase, 250-500 kW 480-500 V 3 phase, 250-500 kW 380-440 V 3 phase
- Vibration Resistance
- 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Component Name
- ATS22
- Control Circuit Consumption
- 20 W
- Factory Setting Current
- 414 A
- Icl Starter Rating
- 480 A connection in the motor supply line for standard applications
- Marking
- CE
- Network Frequency
- 45...66 Hz
- Operating Position
- vertical +/- 10 degree
- Power Dissipation In W
- 218 W for standard applications
- Product Destination
- asynchronous motors
- Product Specific Application
- pumps and fans
- Returnability
- Yes
- Supply Frequency
- 50...60 Hz - 10...10 %
- Sustainable Packaging
- No
- Type Of Cooling
- forced convection
- Utilisation Category
- AC-53A
- Warranty In Months
- 18
- Width Nominal
- 304 mm
Persona Type NamesEnd User, Contractor, Panel Builder
Motor Power Kw132 kW 230 V, 250 kW 400 V, 250 kW 440 V, 315 kW 500 V
Protection Typephase failure line, thermal protection motor, thermal protection starter
Certificate AgencyC-tick, GOST, CSA, UL, CCC
Local Publishable Date2026-05-07
Stocking FlagN
Device TypeSoft starter - Soft starter
TraceabilityYes
Average Life Duration10 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1923
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Assembly Stylewith heat sink
Connector Type1 RJ45
Device Connectionin the motor supply line
Function Availableinternal bypass
Installed Device31
Motor Starter Typesoft starter
Noise Level56 dB
Phase3 phase
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesoft starter
Range Of ProductAltistart 22
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits195-660 V
Transmission Rate4800, 9600 or 19200 bps
Type Of Startstart with torque control (current limited to 3.5 In)
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal455 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-60 °C (with current derating 2.2 % per °C)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP00
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 % without condensation or dripping water IEC 60068-2-3
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altistart 22
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Output Current
- 0.4...1 Icl adjustable
Discrete Output Number2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive logic LI1, LI2, LI3 11 V, >= 5 mA
- Discrete Input Type
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Ptc Probe Input
- 750 Ohm
Discrete Input Number3
Discrete Input Voltage24 V <= 30 V
