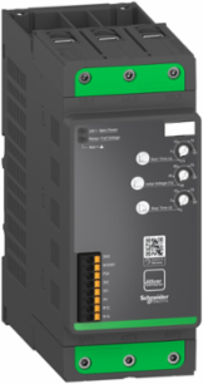

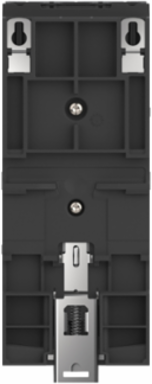

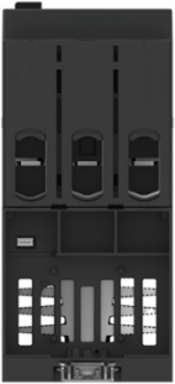

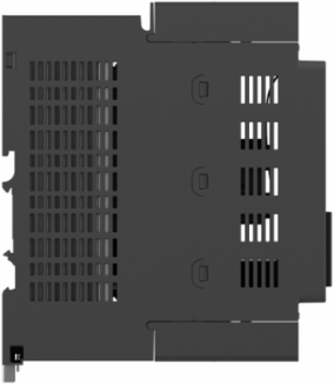

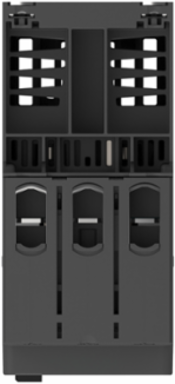

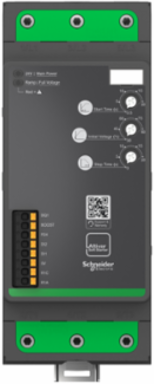

Schneider Electric ATS130N2D80LT Altivar Soft Starter ATS130, 80A, 200 to 480V AC, control supply 24V DC

MPN: ATS130N2D80LT
PPN: SCH-ATS130N2D80LT

$1467.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Altivar Soft Starter ATS130, 80A, 200 to 480V AC, control supply 24V DC

Features

Allows design optimization and time savings
Optimized motor management (with TeSys Deca motor circuit breaker)
Preventive maintenance free
Increase operational efficiency during mounting and wiring
High starting capability as standard that could be extended
ATS130 soft motor starter, the alternative to Direct-On-Line motor starter
A very compact and tested solution
Easy commissioning and troubleshooting
IP20 protection degree, comply with IEC/EN 60721-3-3 class 3C3 and 3S3 without salt mist

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

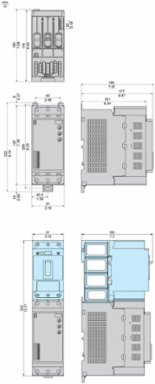

Depth	180 mm

Weight	2300 g

Complementary Attributes

Maximum Horse Power Rating	25 hp 200 V normal duty, 25 hp 208 V normal duty30 hp 230 V normal duty60 hp 460 V normal duty, 60 hp 480 V normal duty
Ue Rated Operational Voltage	200 V 25 hp normal duty, 208 V 25 hp normal duty230 V 30 hp normal duty, 230 V 22 kW normal duty400 V 45 kW normal duty, 440 V 45 kW normal duty460 V 60 hp normal duty, 480 V 60 hp normal duty
Minimum Switching Current	2.5 mA 24 V DC relay outputs
Uc Control Circuit Voltage	+/- 10 %24 V DC
Uimp Rated Impulse Withstand Voltage	4 kV
In Rated Current Pwr Loss Specifctn	80 A
Maximum Acceleration Under Shock Load During Storage	100 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 9...200 Hz
Maximum Acceleration Under Vibratory Load During Transport	10 m/s² at 9...200 Hz
Maximum Deflection Under Vibratory Load During Storage	3 mm at 2-9 Hz

Maximum Switching Current	on inductive load for relay outputs : 1 A 30 V DC cos phi = 0.4 100000 cycles, on resistive load for relay outputs : 1 A 250 V AC 400000 cycleson resistive load for relay outputs : 1 A 30 V DC 400000 cycles, on inductive load for relay outputs : 1 A 250 V AC cos phi = 0.4 100000 cycles
Integrated Motor Overload Protection	false
Ie Rated Operational Current	80 A in line 40 °C)
Ui Rated Insulation Voltage	480 V
Us Rated Supply Voltage	200...480 V - 15...10 %
Maximum Acceleration Under Shock Impact During Operation	100 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport	100 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load During Storage	10 m/s² at 9...200 Hz
Maximum Deflection Under Vibratory Load During Operation	3 mm at 2-9 Hz
Maximum Deflection Under Vibratory Load During Transport	3 mm at 2-9 Hz

Important Information Attributes

Electromagnetic Compatibility	conducted and radiated emissions level B conforming to IEC 60947-4-2, short voltage interruptions level 3 conforming to IEC 61000-4-11, electrostatic discharge level 2 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 1 conforming to IEC 61000-4-3electrical fast transient/burst immunity test level 2 conforming to IEC 61000-4-4oscillatory waves immunity level 3 conforming to IEC 61000-4-12voltage/current impulse level 2 conforming to IEC 61000-4-5conducted disturbances, induced by radiofrequency fields level 1 conforming to IEC 61000-4-6
Function Available	deceleration voltage ramp, boost
Motor Power Kw	22 kW 230 V normal duty45 kW 400 V normal duty, 45 kW 440 V normal duty
Certificate Agency	CE, UKCA, CCC, RCM, EAC, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3662988457, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	161 kg CO2 eq., 160.6951688756
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Use Carbon Footprint	87.666
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2111001EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2235
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Device Connection	in line
Display Screen Available	false
Internal Bypass	true
Operating Position	vertical +/- 30 degree
Overload Current	300 % Ie for 5 s
Power Loss Per Device Current Dependent	16 W
Power Losses	512 W 300 % Ie
Product Destination	asynchronous motors
Product Specific Application	simple machine
Returnability	Yes
Software Version	EIME v5.9.3
Sustainable Packaging	Yes
Utilisation Category	AC-53A
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Torque Control	false
Minimum Motor Current	20 % Ie
Database Version	2020-12
Height Nominal	197 mm
Nbr. Of Units In Pkg.	1
On Load Factor	70 %
With Safety Function Safe Direction Sdi	false
With Safety Function Safe Position Sp	false
With Safety Function Safe Stop 1 Ss1	false
With Safety Function Safely Limited Position Slp	false
With Sft Fct Safe Stop 2 Ss	false
Functional Unit Description	Starting asynchonous motors with maximal current of 105A for at least 400.000 times. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 27,5% uptime in use phase at 75% loading rate, 22,5% uptime in stand by phase and 50% uptime in off phase.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	148.482

Environmental Characteristic	without salt mist 3C3 IEC 60721-3-3, 3S3 IEC 60721-3-3
Marking	CE, CCC, UKCA, RCM, EAC
Protection Type	phase failure mainsthermal protection starter, bypass error starter, control voltage Us starter
Carbon Footprint Of The Distribution Phase A4	0.296748183, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.0044173963
Carbon Footprint Of The Use Phase B2 B3 B4 B6	88 kg CO2 eq., 87.666
Local Publishable Date	2025-11-29
Device Type	Soft starter - Soft starter
Traceability	Yes
Average Life Duration	10 year(s)
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Device Short Name	ATS130
Display Type	1 LED Green)control power energized1 LED yellow and red)motor operation phases, errors
Material Declaration	true
Operating Rate	25 cyc/h
Phase	3 phase
Power Loss Static Current Independent	3 W
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	soft starter
Range Of Product	Altivar Soft Starter ATS130
Service Factor	100
Supply Frequency	50...60 Hz +/- 5 Hz
Total Lifecycle Carbon Footprint	249 kg CO2 eq.
Volume Of Cooling Air	9 m3/h
With Safety Function Safe Programmable Logic	false
Control Power	21.6 W starting and stopping3 W steady state
Rated Operational Current 2	80 A
Data Source	extrapolated product
Width Nominal	81 mm
Customs Code	8537109170
With Safety Function Safe Brake Management Sbc/Sbt	false
With Safety Function Safe Operating Stop Sos	false
With Safety Function Safe Speed Monitor Ssm	false
With Safety Function Safe Torque Off Sto	false
With Safety Function Safely Limited Speed Sls	false
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-60 °C (with current derating of 2 % per °C)
Ambient Air Transport Temperature	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2111001EN
Eu Rohs Directive	Compliant
Operating Altitude	0...3280.84 ft (0...1000 m) without derating3280.84...13123.36 ft (1000...4000 m) 1 % per 100 m
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2111001EN
Pcr Version	PCR-ed3-EN-2015 04 02

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	249.0286333006
Environmental Disclosure	ENVPEP2111001EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Relative Humidity	5-95 % non condensing without dripping water IEC 60068-2-3
Pep Verification Date	2022-03-01
Type Of Verification For The Pep	Independent external review
