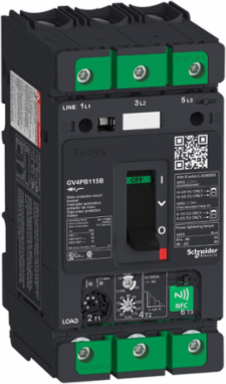

Schneider Electric GV4PB115B TeSys GV4 Motor Circuit Breaker 3P 115A Icu 25kA

MPN: GV4PB115B
PPN: SCH-GV4PB115B
UNSPSC: 39121601

$1165.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. Multifunction circuit breaker UL489 compliant, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 25kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 65-115A, a selectable tripping class 10 or 20, rated tripping current 125%, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL 489, CSA C22.2 N°5).

Features

New modern look & feel of all machines
Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
Easier to install and operate with multi-standard screws
Sturdy and long-lasting power connection with EverLink terminals
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Poland
Depth	116 mm

Weight	1674 g

Physical Attributes

Color	Gray RAL 7016)

Complementary Attributes

Rated Current	115 A
Ue Rated Operational Voltage	690 V AC 50/60 Hz IEC 60947-2, 600Y/347 V AC 60 Hz UL 489
Maximum Operating Rate	25 cyc/h
Ui Rated Insulation Voltage	800 V AC 50/60 Hz IEC 60947-2

Ics Rated Service Short Circuit Breaking Capacity	100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2
Line Rated Current	115 A
Rated Duty	continuous IEC 60947-4-1
Uimp Rated Impulse Withstand Voltage	8 kV IEC 60947-2

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Trip Unit Technology	thermal-magnetic, electronic
Rated Current 1	115 A
Carbon Footprint Of The Distribution Phase A4	0.4609137455605047, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.4 kg CO2 eq., 0.4107399970806896
Carbon Footprint Of The Use Phase B2 B3 B4 B6	74 kg CO2 eq., 74.322
Local Publishable Date	2026-08-12
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	motor protection
Direct Connector	without
Energy Efficiency Optimized	False
Magnetic Tripping Current	1955-1955 A
Mechanical Robustness	vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6shocks 15 gn 11 ms IEC 60068-2-27
Operating Position	any position
Power Dissipation Per Pole	4.6 W
Product Name	TeSys GV4
Range	TeSys Deca
Returnability	Yes
Suitability For Isolation	yes IEC 60947-1
Tightening Torque	9 N.m 16-95 mm²5 N.m 1.5-10 mm²
Utilisation Category	category A IEC 60947-2AC-3 IEC 60947-4-1
Database Version	2022-01
Height Nominal	171 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	115 A IEC 60947-4-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Connections Terminals	EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-70 mm² - flexibleEverLink BTR screw connectors (top): 1 cable(s) 1.5-70 mm² - rigid, EverLink BTR screw connectors (top): 1 cable(s) 1.5-50 mm² - flexibleEverLink BTR screw connectors (bottom): 1 cable(s) 2.5-95 mm² - rigid
Certificate Agency	IEC, UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	3.7141086898584317, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	11 kg CO2 eq., 10.899364862873592
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	PPIBS
Use Carbon Footprint	74.322
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1704004EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1923
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Control Type	toggle
Device Short Name	GV4PB
Electrical Durability	10000 cycles AC-3 440 V In/25000 cycles AC-3 440 V In
Fire Resistance	960 °C IEC 60695-2-11
Mechanical Durability	40000 cycles
Number Of Poles	3P
Phase Failure Sensitivity	yes IEC 60947-4-1
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	motor circuit breaker
Range Of Product	TeSys GV4
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	90 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	81 mm
Customs Code	8536200020
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Protect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
Functional Unit Unit	unité (unit)
Recyclability Potential In %	49

Environment Attributes Main

Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	89.80712729537322
Circularity Profile	ENVEOLI1704004EN
Environmental Disclosure	ENVPEP1704004EN
Halogen Content Performance	Halogen free plastic parts product
Operating Altitude	5000 m
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1704004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-25-70 °C-25-70 °C
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP40 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-19
Psr Version	PSR-0005-ed2-2016 03 29
