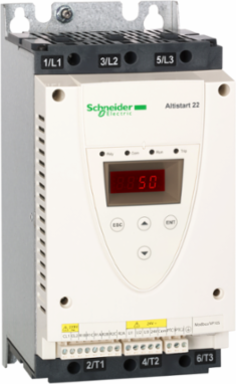

Schneider Electric ATS22D47S6 Altistart 22 Soft Starter 11-30 kW 230-500V 47A

  • MPN: ATS22D47S6
  • PPN: SCH-ATS22D47S6
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1746.05

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 47A, a rated power from 11kW to 30kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia, United States
    Depth169 mm

    Communications & Management Attributes

    Communication Data Linkserial
    Communication Port ProtocolModbus

    Complementary Attributes

    Maximum Switching Current5 A 250 V AC resistive 1 relay outputs5 A 30 V DC resistive 1 relay outputs2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
    Minimum Switching Current100 mA 12 V DC relay outputs)
    Control Circuit Consumption20 W

    Important Information Attributes

    Persona Type IdsEU, LC, PB
    Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
    Protection Typephase failure linethermal protection motor, thermal protection starter
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Component NameATS22
    Control Circuit Consumption20 W
    Factory Setting Current40 A
    Icl Starter Rating47 A connection in the motor supply line for standard applications
    MarkingCE
    Network Frequency45...66 Hz
    Operating Positionvertical +/- 10 degree
    Power Dissipation In W48 W for standard applications
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typesoft starter
    Range Of ProductAltistart 22
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Voltage Limits195-660 V
    Transmission Rate4800, 9600 or 19200 bps
    Type Of Startstart with torque control (current limited to 3.5 In)
    Vibration Resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
    Height Nominal265 mm
    [Uc] Control Circuit Voltage230 V - 15...10 % 50/60 Hz
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109170
    Persona Type NamesEnd User, Contractor, Panel Builder
    Motor Power Kw11 kW 230 V22 kW 400 V, 22 kW 440 V30 kW 500 V
    Certificate AgencyGOST, CSA, UL, C-tick, CCC
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeSoft starter - Soft starter
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Market SegmentationIndustrial
    Assembly Stylewith heat sink
    Connector Type1 RJ45
    Device Connectionin the motor supply line
    Function Availableinternal bypass
    Installed Device31
    Motor Starter Typesoft starter
    Noise Level45 dB
    Phase3 phase
    Power Range7-11 kW 200-240 V 3 phase15-25 kW 380-440 V 3 phase30-50 kW 480-500 V 3 phase
    Product Destinationasynchronous motors
    Product Specific Applicationpumps and fans
    ReturnabilityYes
    Supply Frequency50...60 Hz - 10...10 %
    Sustainable PackagingNo
    Type Of Coolingforced convection
    Utilisation CategoryAC-53A
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal130 mm
    [Us] Rated Supply Voltage230...600 V - 15...10 %
    Package Weight(Lbs)5.665 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-60 °C (with current derating 2.2 % per °C)
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticNo
    Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase3 phase
    Range Of ProductAltistart 22
    Product Or Component Typesoft starter

    ETIM

    ETIM 8EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Typerelay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
    Output Current0.4...1 Icl adjustable
    Discrete Output Number2

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logicpositive logic LI1, LI2, LI3 11 V, >= 5 mA
    Discrete Input TypeLI1, LI2, LI3) logic, 5 mA 4.3 kOhm
    Ptc Probe Input750 Ohm
    Discrete Input Number3
    Discrete Input Voltage24 V <= 30 V

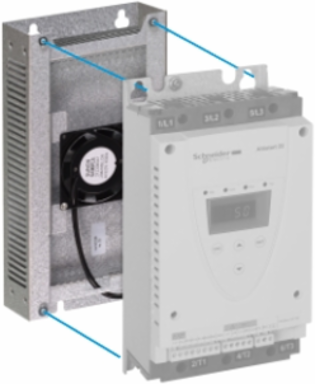

    Altistart 22 Soft Starter 11-30 kW 230-500V 47A
    Altistart 22 Soft Starter 11-30 kW 230-500V 47A
