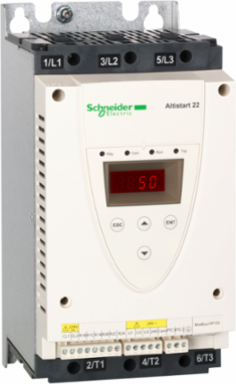

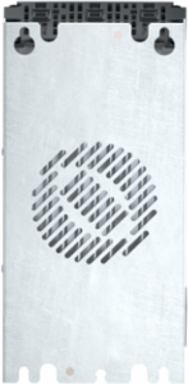

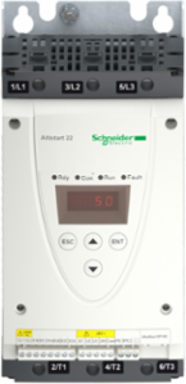

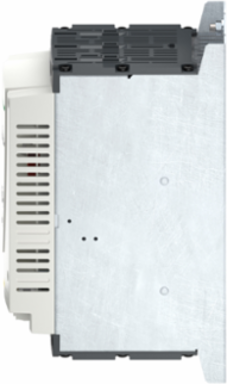

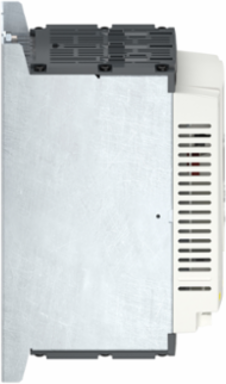

Schneider Electric ATS22D17Q soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 4 to 7.5kW
Schneider Electric ATS22D17Q soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 4 to 7.5kW
- MPN: ATS22D17Q
- PPN: SCH-ATS22D17Q
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$967.18/ EA
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 17A and 230V to 440V, a rated power up to 7.5kW (400V to 440V in supply line) and up to 15kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Features
- Provide smooth starting, avoiding mechanical stresses and extending their service life
- Reduce hearing discomfort for operators on the workfloor
- Slim form factor improves versatility
- Less cost to stock spares
- Overcome difficult or high-torque starts
- Precise control over start time gives capability to match your system's inertia and mechanical limits
- Integrated bypass reduces noise and decreases heat dissipation
- Limit mechanical stress on your system
- Help to prevent damage to your equipment
- SoMove software compatible
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus
Communication Data Linkserial
Conformance Attributes
- Product Certifications
- UL, GOST, CSA, CCC, C-tick
StandardsIEC 60947-4-2
Complementary Attributes
- Maximum Switching Current
- 5 A 250 V AC resistive 1 relay outputs, 5 A 30 V DC resistive 1 relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
- Control Circuit Consumption
- 20 W
Minimum Switching Current100 mA 12 V DC relay outputs)
Important Information Attributes
- Persona Type Ids
- EU, LC, PB
- Electromagnetic Compatibility
- conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
- Power Range
- 4-6 kW 200-240 V 3 phase, 7-11 kW 380-440 V 3 phase
- Vibration Resistance
- 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
- Local Data Status
- Publishable
- Device Type
- Soft starter - Soft starter
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Market Segmentation
- Industrial
- Component Name
- ATS22
- Function Available
- internal bypass
- Motor Starter Type
- soft starter
- Noise Level
- 45 dB
- Package Weight Lbs
- 5.597 kg
- Power Dissipation In W
- 39 W for standard applications
- Product Destination
- asynchronous motors
- Product Specific Application
- pumps and fans
- Returnability
- Yes
- Supply Frequency
- 50...60 Hz - 10...10 %
- Sustainable Packaging
- No
- Type Of Cooling
- forced convection
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Us Rated Supply Voltage2
- 230...440 V - 15...10 %
- Stocking Flag
- Y
- Control Circuit Consumption
- 20 W
- Icl Starter Rating
- 17 A connection in the motor supply line for standard applications
- Global Commercial Status
- End of commerc. announced
- Us Rated Supply Voltage5
- 230...440 V - 15...10 %
Persona Type NamesEnd User, Contractor, Panel Builder
Motor Power KW4 kW 230 V, 7.5 kW 400 V, 7.5 kW 440 V
Protection Typephase failure line, thermal protection motor, thermal protection starter
Device Connectionin the motor supply line, to the motor delta terminals
Local Publishable Date2026-01-12
ServiceabilityNo
Field Service DivisionIDIBS
Legacy WEEE ScopeIn
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Assembly Stylewith heat sink
Connector Type1 RJ45
MarkingCE
Network Frequency45...66 Hz
Operating Positionvertical +/- 10 degree
Phase3 phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesoft starter
Range Of ProductAltistart 22
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits195-484 V
Transmission Rate4800, 9600 or 19200 bps
Utilisation CategoryAC-53A
Uc Control Circuit Voltage2230 V - 15...10 % 50/60 Hz
Medium Descsoft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 4 to 7.5kW
Product Kit IdentifierN
Factory Setting Current14.8 A
Type Of Startstart with torque control (current limited to 3.5 In)
Uc Control Circuit Voltage5230 V - 15...10 % 50/60 Hz
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -25-70 °C
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-10-40 °C (without derating), -10-40 °C (without derating), -10-40 °C (without derating), -10-40 °C (without derating), 40-60 °C (with current derating 2.2 % per °C)
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altistart 22
Product Or Component Typesoft starter
Output Attributes
- Discrete Output Type
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Output Current
- 0.4...1 Icl adjustable
Discrete Output Number2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive logic LI1, LI2, LI3 11 V, >= 5 mA
- Discrete Input Type
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Ptc Probe Input
- 750 Ohm
Discrete Input Number3
Discrete Input Voltage24 V <= 30 V
Specifications
- Country of Origin
- Indonesia, Mexico
Depth169 mm
