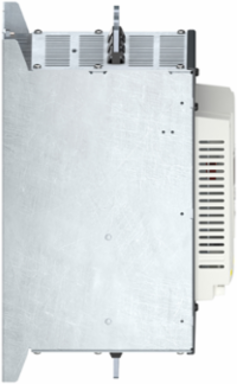

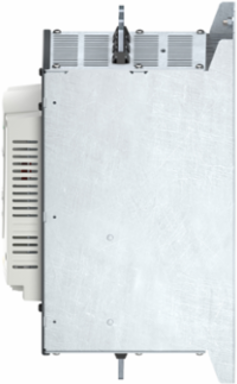

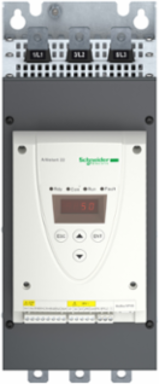

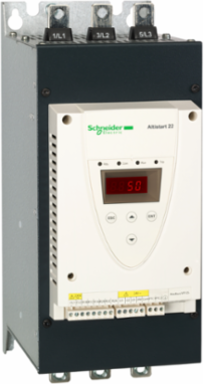

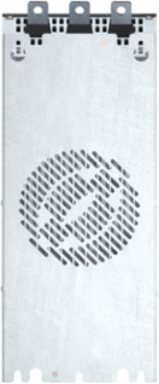

Schneider Electric ATS22C11Q Altistart 22 Soft Starter for Asynchronous Motors, 39-55kW, 230-440V

MPN: ATS22C11Q
PPN: SCH-ATS22C11Q
UNSPSC: 39121521

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$2667.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 110A and 230V to 440V, a rated power up to 55kW (400V to 440V in supply line) and up to 90kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Features

Provide smooth starting, avoiding mechanical stresses and extending their service life
Reduce hearing discomfort for operators on the workfloor
Slim form factor improves versatility
Less cost to stock spares
Overcome difficult or high-torque starts
Precise control over start time gives capability to match your system's inertia and mechanical limits
Integrated bypass reduces noise and decreases heat dissipation
Limit mechanical stress on your system
Help to prevent damage to your equipment
SoMove software compatible

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Depth	229.5 mm

Communications & Management Attributes

Communication Data Link	serial

Communication Port Protocol	Modbus

Complementary Attributes

Maximum Switching Current	5 A 250 V AC resistive 1 relay outputs5 A 30 V DC resistive 1 relay outputs2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
Minimum Switching Current	100 mA 12 V DC relay outputs)
Us Rated Supply Voltage	230...440 V - 15...10 %

Control Circuit Consumption	20 W
Uc Control Circuit Voltage	230 V - 15...10 % 50/60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, PB
Device Connection	in the motor supply line, to the motor delta terminals
Motor Power Kw	30 kW 230 V55 kW 400 V, 55 kW 440 V
Certificate Agency	UL, CSA, GOST, C-tick, CCC
Local Publishable Date	2026-01-12
Device Type	Soft starter - Soft starter
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI110804EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1923
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Assembly Style	with heat sink
Connector Type	1 RJ45
Function Available	internal bypass
Installed Device	31
Motor Starter Type	soft starter
Noise Level	56 dB
Phase	3 phase
Power Range	30-50 kW 200-240 V 3 phase55-100 kW 380-440 V 3 phase
Product Destination	asynchronous motors
Product Specific Application	pumps and fans
Returnability	Yes
Supply Frequency	50...60 Hz - 10...10 %
Sustainable Packaging	No
Type Of Cooling	forced convection
Utilisation Category	AC-53A
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	150 mm
Customs Code	8537109170

Persona Type Names	End User, Contractor, Panel Builder
Electromagnetic Compatibility	conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
Protection Type	phase failure linethermal protection motor, thermal protection starter
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Component Name	ATS22
Factory Setting Current	100 A
Icl Starter Rating	110 A connection in the motor supply line for standard applications
Marking	CE
Network Frequency	45...66 Hz
Operating Position	vertical +/- 10 degree
Power Dissipation In W	73 W for standard applications
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	soft starter
Range Of Product	Altistart 22
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits	195-484 V
Transmission Rate	4800, 9600 or 19200 bps
Type Of Start	start with torque control (current limited to 3.5 In)
Vibration Resistance	1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
Height Nominal	356 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-60 °C (with current derating 2.2 % per °C)
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP100401EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No
Relative Humidity	0-95 % without condensation or dripping water IEC 60068-2-3

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI110804EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP100401EN

General Attributes

Phase	3 phase
Range Of Product	Altistart 22

Product Or Component Type	soft starter

ETIM

ETIM 8	EC000640
ETIM 10	EC000640

ETIM 9	EC000640

Output Attributes

Discrete Output Type	relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Output Current	0.4...1 Icl adjustable
