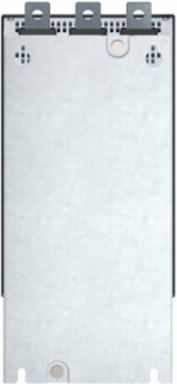

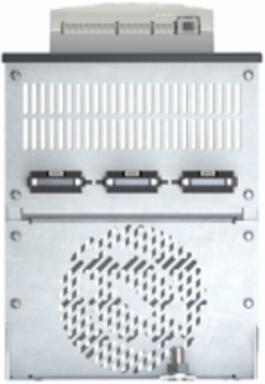

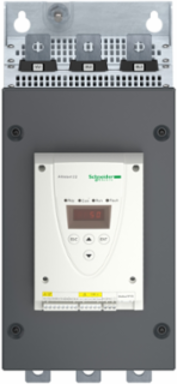

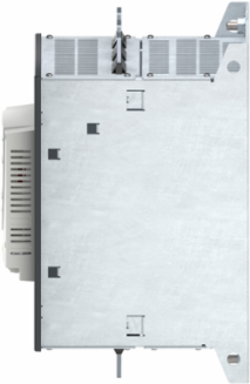

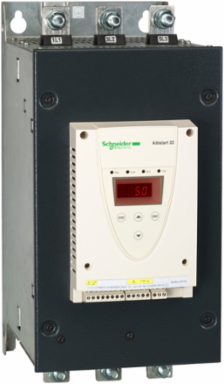

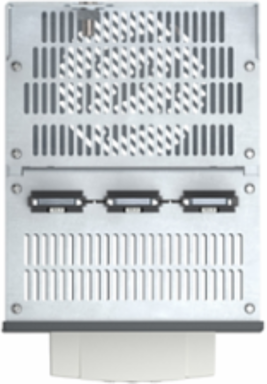

Schneider Electric ATS22C21Q soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 55 to 110kW
- MPN: ATS22C21Q
- PPN: SCH-ATS22C21Q
CAD
$4106.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 210A and 230V to 440V, a rated power up to 110kW (400V to 440V in supply line) and up to 160kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Depth299 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus
Complementary Attributes
- Maximum Switching Current
- 5 A 250 V AC resistive 1 relay outputs5 A 30 V DC resistive 1 relay outputs2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
- Minimum Switching Current
- 100 mA 12 V DC relay outputs)
Control Circuit Consumption20 W
Important Information Attributes
- Persona Type Ids
- EU, LC, PB
- Device Connection
- to the motor delta terminals, in the motor supply line
- Motor Power Kw
- 110 kW 400 V, 110 kW 440 V55 kW 230 V
- Certificate Agency
- CCC, UL, GOST, CSA, C-tick
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Soft starter - Soft starter
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1923
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Assembly Style
- with heat sink
- Connector Type
- 1 RJ45
- Factory Setting Current
- 195 A
- Icl Starter Rating
- 210 A connection in the motor supply line for standard applications
- Marking
- CE
- Network Frequency
- 45...66 Hz
- Operating Position
- vertical +/- 10 degree
- Power Dissipation In W
- 117 W for standard applications
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- soft starter
- Range Of Product
- Altistart 22
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Voltage Limits
- 195-484 V
- Transmission Rate
- 4800, 9600 or 19200 bps
- Type Of Start
- start with torque control (current limited to 3.5 In)
- Vibration Resistance
- 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
- Height Nominal
- 425 mm
- [Uc] Control Circuit Voltage
- 230 V - 15...10 % 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109170
Persona Type NamesEnd User, Contractor, Panel Builder
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
Protection Typephase failure linethermal protection motor, thermal protection starter
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Component NameATS22
Control Circuit Consumption20 W
Function Availableinternal bypass
Installed Device31
Motor Starter Typesoft starter
Noise Level56 dB
Phase3 phase
Power Range55-100 kW 200-240 V 3 phase110-220 kW 380-440 V 3 phase
Product Destinationasynchronous motors
Product Specific Applicationpumps and fans
ReturnabilityYes
Supply Frequency50...60 Hz - 10...10 %
Sustainable PackagingNo
Type Of Coolingforced convection
Utilisation CategoryAC-53A
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal206 mm
[Us] Rated Supply Voltage230...440 V - 15...10 %
Package Weight(Lbs)24.500 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-60 °C (with current derating 2.2 % per °C)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP00
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 % without condensation or dripping water IEC 60068-2-3
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altistart 22
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Output Current
- 0.4...1 Icl adjustable
Discrete Output Number2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive logic LI1, LI2, LI3 11 V, >= 5 mA
- Discrete Input Type
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Ptc Probe Input
- 750 Ohm
Discrete Input Number3
Discrete Input Voltage24 V <= 30 V
