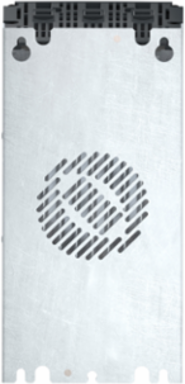

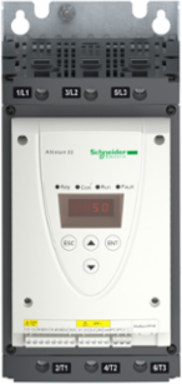

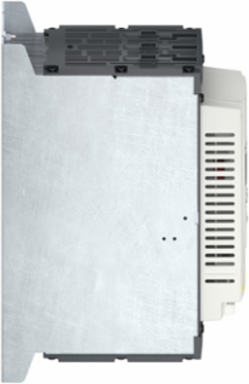

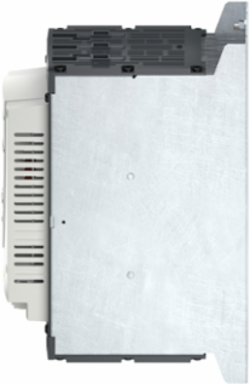

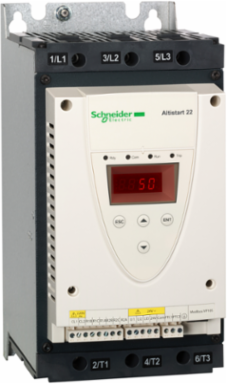

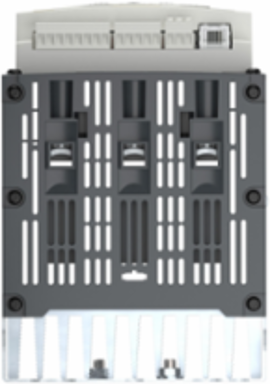

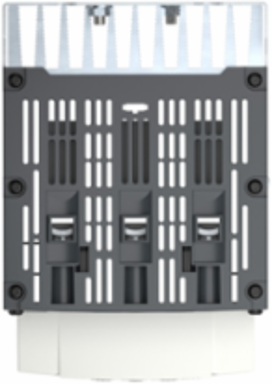

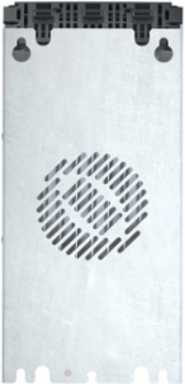

Schneider Electric ATS22D88S6U Altistart 22 Soft Starter for 3-Phase Motors, 25-75hp, 110V-575V
- MPN: ATS22D88S6U
- PPN: SCH-ATS22D88S6U
CAD
$2600.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 88A, a rated power from 25HP to 75HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Features
- Engineered featuring true 3-phase silicon-controlled rectifier (SCR) regulation, this 88A soft starter governs asynchronous motors via sophisticated torque control rather than simple voltage steps. For industrial engineers managing fluid infrastructure, this precise current limitation (restricted to 3.5 In) ensures smooth, linear acceleration that entirely eliminates high-impact hydraulic shock, physical pipe hammer, and sudden belt slippage in heavy-duty pump and centrifugal fan setups.
- Built with a robust operational framework, this module operates reliably across an expansive main line supply spectrum from 208V to 600V AC at 50/60 Hz. This flexible electrical tolerance allows plant electricians to deploy a single, uniform controller type across a broad machine fleet, delivering an optimized capacity rating of 25 HP at 208V, 30 HP at 230V, 60 HP at 460V, or up to 75 HP at standard 575V Canadian industrial grids.
- Equipped with an onboard, internal bypass contactor, the system automatically shunts current away from the primary solid-state electronics once the motor reaches full running speed. This integrated feature drops steady-state power dissipation down to a highly efficient 66W, eliminating the cost and space required for an external running contactor while dramatically extending the lifetime of the internal thyristors inside tight enclosures.
- Providing comprehensive electronic defense, this soft starter features integrated Class 10 electronic thermal overload tracking alongside line phase-failure and internal starter thermal protection loops. This eliminates the requirement for standalone auxiliary monitoring relays, continuously tracking winding statuses to safeguard expensive induction motors against unexpected phase imbalance, locked-rotor friction, or severe insulation degradation.
- Designed for straightforward automation layout integration, this starter utilizes a common 110V AC control circuit voltage paired with three logic inputs, two configurable output relays, and an embedded Modbus RS485 communication link via an RJ45 port. The front-facing 4-character 7-segment display allows field technicians to rapidly navigate commissioning parameters or access detailed remote diagnostics using SoMove software without introducing costly protocol converters.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, Singapore, United States |
|---|
| Depth | 207 mm |
|---|
Communications & Management Attributes
| Communication Data Link | serial |
|---|
| Communication Port Protocol | Modbus |
|---|
Complementary Attributes
| Maximum Switching Current | 5 A 250 V AC resistive 1 relay outputs5 A 30 V DC resistive 1 relay outputs2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs |
|---|---|
| Maximum Horse Power Rating | 25 hp 208 V30 hp 230 V60 hp 460 V75 hp 575 V |
| Control Circuit Consumption | 20 W |
|---|---|
| Minimum Switching Current | 100 mA 12 V DC relay outputs) |
Important Information Attributes
| Persona Type Ids | EU, LC, PB |
|---|---|
| Electromagnetic Compatibility | conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Certificate Agency | UL, CSA, GOST, C-tick, CCC |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | Y |
| Device Type | Soft starter - Soft starter |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1923 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Assembly Style | with heat sink |
| Connector Type | 1 RJ45 |
| Device Connection | in the motor supply line |
| Function Available | internal bypass |
| Installed Device | 31 |
| Network Frequency | 45...66 Hz |
| Operating Position | vertical +/- 10 degree |
| Power Dissipation In W | 66 W for standard applications |
| Product Destination | asynchronous motors |
| Product Specific Application | pumps and fans |
| Returnability | Yes |
| Supply Frequency | 50...60 Hz - 10...10 % |
| Sustainable Packaging | No |
| Type Of Cooling | forced convection |
| Utilisation Category | AC-53A |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 145 mm |
| [Us] Rated Supply Voltage | 208...600 V - 15...10 % |
| Package Weight(Lbs) | 8.305 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Panel Builder |
|---|---|
| Protection Type | phase failure linethermal protection motor, thermal protection starter |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Component Name | ATS22 |
| Control Circuit Consumption | 20 W |
| Factory Setting Current | 77 A |
| Icl Starter Rating | 88 A connection in the motor supply line for standard applications |
| Marking | CE |
| Noise Level | 45 dB |
| Phase | 3 phase |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | soft starter |
| Range Of Product | Altistart 22 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Supply Voltage Limits | 177-660 V |
| Transmission Rate | 4800, 9600 or 19200 bps |
| Type Of Start | start with torque control (current limited to 3.5 In) |
| Vibration Resistance | 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6 |
| Height Nominal | 295 mm |
| [Uc] Control Circuit Voltage | 110 V - 15...10 % 50/60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-60 °C (with current derating 2.2 % per °C) |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-95 % without condensation or dripping water IEC 60068-2-3 |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | Altistart 22 |
| Product Or Component Type | soft starter |
|---|
ETIM
| ETIM 8 | EC000640 |
|---|
| ETIM 9 | EC000640 |
|---|
Output Attributes
| Discrete Output Type | relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
|---|---|
| Output Current | 0.4...1 Icl adjustable |
| Discrete Output Number | 2 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Logic | positive logic LI1, LI2, LI3 79 V, <= 2 mA |
|---|---|
| Discrete Input Type | LI1, LI2, LI3) logic, 5 mA 20 kOhm |
| Discrete Input Number | 3 |
|---|---|
| Discrete Input Voltage | 110 V <= 121 V |
