Schneider Electric

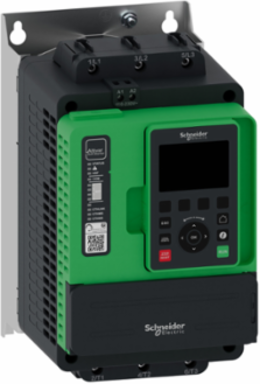

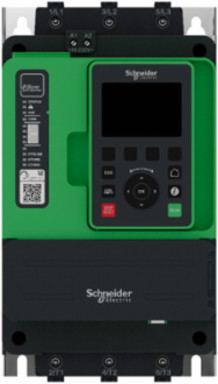

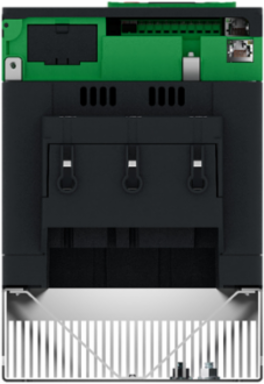

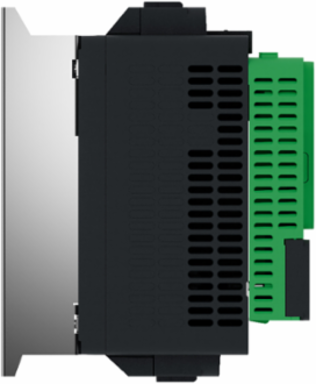

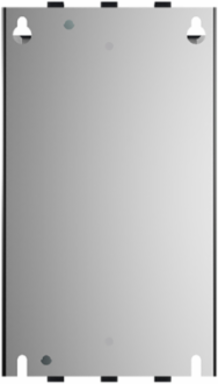

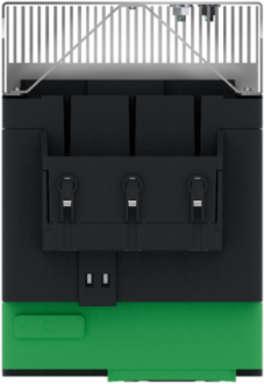

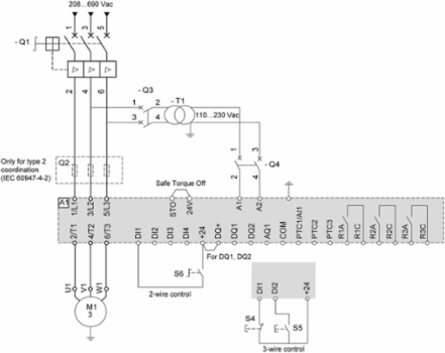

Schneider Electric ATS490D38Y Soft starter, Altivar Soft Starter ATS490, 38A, 208 to 690V AC, control supply 110 to 230V AC

  • MPN: ATS490D38Y
  • PPN: SCH-ATS490D38Y

CAD

$1897.83

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Soft starter, Altivar Soft Starter ATS490, 38A, 208 to 690V AC, control supply 110 to 230V AC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Indonesia, Philippines, United States

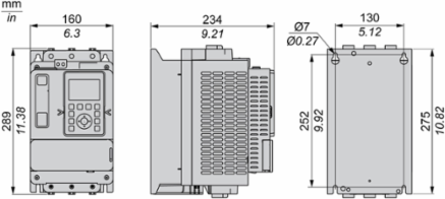

Depth234 mm

Communications & Management Attributes

Communication Port Protocol
Modbus serialModbus serial, Modbus TCP/EtherNet/IP

Complementary Attributes

Maximum Horse Power Rating
25 hp 575 V heavy duty10 hp 208 V normal duty25 hp 460 V normal duty30 hp 575 V normal duty7.5 hp 208 V heavy duty, 10 hp 230 V heavy duty, 20 hp 460 V heavy duty
Maximum Permanent Current
32 A at 40 °C heavy duty
Minimum Switching Current
100 mA 12 V DC relay outputs
Integrated Motor Overload Protectiontrue
Maximum Switching Currentrelay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1

Important Information Attributes

Connector Type
1 RJ45 for connecting Modbus serial, 1 RJ45 for connecting Modbus TCP/EtherNet/IP
Display Type
1 LED green and yellow)status1 LED Red)Warning/Error1 LED Yellow)ASF, 1 LED Yellow)COM, 1 LED green and yellow)NET11 LED green and red)NET2, 1 LED green and red)NET3, 1 LED green and yellow)NET4, 1 LED green and red)RUN/ERR (Module Status), 1 LED green and yellow)Ethernet link, 1 LED green and red)ETH MS (Ethernet port configuration status), 1 LED green and red)Eth NS (Ethernet network status)
Function Available
pre-heating, smoke extraction, second motor set, Deceleration with torque control, Braking, boost, Line contactor control, reverse contactor control, anti-jam, jog, borehole pump starting, condition monitoring, power monitoring, cybersecure firmware update
Motor Power Kw
15 kW 440 V in the motor supply line heavy duty18.5 kW 500 V in the motor supply line heavy duty18.5 kW 525 V in the motor supply line heavy duty22 kW 660 V in the motor supply line heavy duty22 kW 690 V in the motor supply line heavy duty30 kW 400 V to the motor delta terminals normal duty15 kW 230 V to the motor delta terminals heavy duty22 kW 400 V to the motor delta terminals heavy duty, 9 kW 230 V in the motor supply line normal duty18.5 kW 400 V in the motor supply line normal duty, 18.5 kW 440 V in the motor supply line normal duty22 kW 500 V in the motor supply line normal duty, 22 kW 525 V in the motor supply line normal duty30 kW 660 V in the motor supply line normal duty, 30 kW 690 V in the motor supply line normal duty7.5 kW 230 V in the motor supply line heavy duty, 15 kW 400 V in the motor supply line heavy duty, 18.5 kW 230 V to the motor delta terminals normal duty
Protection Type
phase failure mainsthermal protection starter, thermal protection motor, current overload motor, motor underload motor, excessive acceleration time motor, motor phase loss detection motor, protection against line phase inversion mains, external thermal protection motor, protection delta inside wiring starter, short-circuit between motor phase and earth motor
Transmission Rate
4.8…38.4 kbps, 100 BASE TX
Certificate Agency
CE, cULus, UKCA, RCM, CCC, DNV, ATEX, EAC, KC
Environmental Class (During Operation)
class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Maximum Acceleration Under Vibratory Load (During Transport)
1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]
11.556550150403035, 12 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
146 kg CO2 eq., 145.731017396576
Local Data Status
Publishable
Pre Comm Date
2025-03-26
Stocking Flag
N
Device Type
Soft starter - Soft starter
Traceability
Yes
Average Life Duration
10 year(s)
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2209014EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2421
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Product Kit Identifier
N
Data Format
8 bits, configurable odd, even or no parity 1or 2 stop
Display Screen Available
true
Material Declaration
true
Number Of Addresses
0-247 Modbus serial
Operating Rate
10 cyc/h
Phase
3 phase
Power Loss Static Current Independent
19 W
Product Availability
Stock - Normally stocked in distribution facility
Product Or Component Type
soft starter
Range Of Product
Altivar Soft Starter ATS490
Safety Function
STO (safe torque off): SIL 1 conforming to IEC 61508STO (safe torque off): PL c/category 2 conforming to ISO 13849
Service Factor
100
Supply Frequency
50...60 Hz - 20...20 %
Total Lifecycle Carbon Footprint
937 kg CO2 eq.
Updatability
Upgradeable through digital modules
With Safety Function Cybersecurity
true
Torque Control
true
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration and deceleration phase with a torque control. It’s based on three phases dimmer with Silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 47A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 11kW and 690V power motor of 37kW. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 3,6% uptime in active phase, 46,4% uptime in stand by phase and 50% in control phase.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Indonesia, ID
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %
76
Width Nominal
160 mm
[Uc] Control Circuit Voltage
24 V DC110...230 V AC 50-60 Hz - 15...10 %
[Uimp] Rated Impulse Withstand Voltage
6 kV
Maximum Acceleration Under Shock Load (During Storage)
10 gn at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)
1 gn at 13…200 Hz
Maximum Deflection Under Vibratory Load (During Storage)
1.75 mm at 2...9 Hz
On-load Factor
50 %
With Safety Function Safe Direction (Sdi)
false
With Safety Function Safe Position (Sp)
false
With Safety Function Safe Stop 1 (Ss1)
false
With Safety Function Safely Limited Position (Slp)
false
With Sft Fct Safe Stop 2 (Ss2)
false
Package Weight(Lbs)
6.979 kg
Warranty (In Months)
18
Customs Code
8537109170
Device Connectionin the motor supply line, inside delta
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-18electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5immunity to conducted interference caused by radio-electrical fields level 3 conforming to EN/IEC 61000-4-6
MarkingCE, cULus, UKCA, RCM, CCC, ATEX, EAC, KC
Option Cardcommunication module CANopen daisy chain, communication module CANopen Sub-D, communication module CANopen open style, communication module Profibus DP V1, communication module PROFINET
Transmission FrameRTU, TCP/UDP
Utilisation CategoryAC-3A, AC-53A
[Ue] Rated Operational Voltage440 V 15 kW in the motor supply line heavy duty500 V 18.5 kW in the motor supply line heavy duty525 V 18.5 kW in the motor supply line heavy duty660 V 22 kW in the motor supply line heavy duty690 V 22 kW in the motor supply line heavy duty, 230 V 10 hp heavy duty575 V 25 hp heavy duty, 230 V 9 kW in the motor supply line normal duty400 V 18.5 kW in the motor supply line normal duty, 440 V 18.5 kW in the motor supply line normal duty500 V 22 kW in the motor supply line normal duty, 525 V 22 kW in the motor supply line normal duty660 V 30 kW in the motor supply line normal duty, 690 V 30 kW in the motor supply line normal duty230 V 7.5 kW in the motor supply line heavy duty, 400 V 15 kW in the motor supply line heavy duty208 V 10 hp normal duty460 V 25 hp normal duty575 V 30 hp normal duty, 208 V 7.5 hp heavy duty, 460 V 20 hp heavy duty, 208...690 V AC - 15...10 %)
Maximum Acceleration Under Vibratory Load (During Storage)1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Carbon Footprint Of The Distribution Phase [A4]1.3453601643804098, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1 kg CO2 eq., 1.0965815804917127
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]777 kg CO2 eq., 777.0297974606312
Local Publishable Date2026-03-26
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Apparent Power70 VA
Device Short NameATS490
Internal Bypasstrue
Method Of Accessslave Modbus serial
Operating Positionvertical +/- 10 degree
Overload Current400 % Ie for 13 s
Power Loss Per Device Current Dependent11 W
Power Losses431 W during starting at 40 °C at 400% Ie
Product Destinationasynchronous motors
Product Specific Applicationprocess and infrastructures
ReturnabilityYes
Safety Levelsecurity level (SL) 1 IEC 62443-4-2
Software Versionv6.1
Sustainable PackagingNo
Type Of Polarizationno impedance Modbus serial
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP2209014EN
Pep Verification Date2024-07-01
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal289 mm
[Ie] Rated Operational Currentnormal duty 38 A in line 40 °C)
[Ui] Rated Insulation Voltage690 V
Maximum Acceleration Under Shock Impact (During Operation)15 gn at 11 ms
Maximum Acceleration Under Shock Load (During Transport)10 gn at 11 ms
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)1.75 mm at 2...9 Hz
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)false
Nbr. Of Units In Pkg.1
Take-backNo
[In] Rated Current Pwr Loss Specifctn238 A

Environment Attributes Main

Ambient Air Temperature For Operation
-25-40 °C (without derating), -25-40 °C (without derating)-25-40 °C (without derating), -25-40 °C (without derating)40-60 °C (with current derating of 1 % per °C above 40 °C)
Ambient Air Transport Temperature
-40-70 °C, -40-70 °C
Take Back
No
China Rohs Regulation
X
Carbon Footprint
936.7593067524824
Environmental Disclosure
ENVPEP2209014EN
Ip Degree Of Protection
IP20
Packaging Without Single Use Plastic
No
Relative Humidity
5-95 % without condensation or dripping water EN/IEC 60068-2-3
Pep Verification Date
2024-07-01
Psr Version
No PSR
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2209014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2209014EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Phase
3 phase
Range Of Product
Altivar Soft Starter ATS490
Product Or Component Typesoft starter

ETIM

ETIM 8
EC000640
ETIM 9EC000640

Output Attributes

Analogue Output Type
current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm
Relay Output Type
relay outputs R1A, R1C NO, relay outputs R2A, R2C NO, relay outputs R3A, R3C NO
Discrete Output Number
2
Output Current Drift
150-700 %
Discrete Output Typeprogrammable digital output DQ1 <= 30 V 100 mA, programmable digital output DQ2 <= 30 V 100 mA
Analogue Output Number1
Output Compatibilityopen collector level 1 PLC IEC 65A-68
Relay Output Number3

Input Attributes

Analogue Input Type
AI1/PTC1 : PTC/PT 100/PT 1000/KTY84 temperature probe, PTC2 : PTC/PT 100/PT 1000/KTY84 temperature probe, PTC3 : PTC/PT 100/PT 1000/KTY84 temperature probe
Discrete Input Type
DI1) digital input, 4.4 kOhm, DI2) digital input, 4.4 kOhm, DI3) digital input, 4.4 kOhm, DI4) digital input, 4.4 kOhmSTO) digital input, > 1 kOhm
Analogue Input Number
1
Discrete Input Logicdigital input DI1 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI2 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI3 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI4 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input STO 0...< 5 V <= 2 mA > 11 V, >= 5 mA
Input CompatibilityDI1 discrete input level 1 PLC EN/IEC 61131-2, DI2 discrete input level 1 PLC EN/IEC 61131-2, DI3 discrete input level 1 PLC EN/IEC 61131-2, DI4 discrete input level 1 PLC EN/IEC 61131-2, STO discrete input level 1 PLC EN/IEC 61131-2
Discrete Input Number5

Batteries & Runtime Attributes

Removable Battery
Yes
