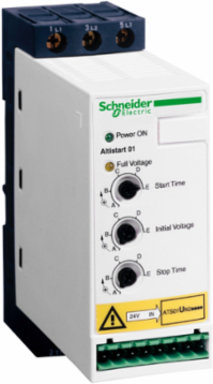

Schneider Electric ATS01N209QN Altistart 01 Soft Starter, 9A, 380-415V, 4 kW, IP20, 45 mm

  • MPN: ATS01N209QN
  • PPN: SCH-ATS01N209QN
  • UNSPSC: 39121521
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $390.83

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 1.5kW or 2hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

    Features

    • Provides smooth starting for your pumps, fans, compressors and machinery
    • Avoid mechanical stresses and extend their service life
    • Progressive start limits the starting and stopping noise of motors
    • Reduce hearing discomfort for operators on the workfloor
    • One of the smallest soft starters on the market; it can be installed nearly everywhere
    • Simple setup with only 2 settings: possible to configure by non-specialists
    • Precise control over start time gives capability to match your system's inertia and mechanical limits
    • Integrated bypass reduces noise and decreases heat dissipation

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginGermany
    Depth131 mm

    Complementary Attributes

    Maximum Switching Currentrelay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductiverelay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
    Uc Control Circuit Voltagebuilt into the starter
    Us Rated Supply Voltage380...415 V - 10...10 %
    Minimum Switching Current10 mA 6 V DC relay outputs
    Ue Rated Operational Voltage380...415 V 4 kW

    Important Information Attributes

    Persona Type IdsBM9, EU, OM, OM8, SC, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electrical Connectionscrew connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuitscrew connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuitscrew connector - rigid 2 0.5...1 mm² 17 AWG control circuitscrew connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit
    Starting Time1 s / 1005 s / 2010 s / 10, adjustable from 1 to 10 s
    Certificate AgencyGOST, CCC, CSA, C-tick, UL
    Local Publishable Date2026-01-12
    Device TypeSoft starter - Soft starter
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1927
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Assembly Stylewith heat sink
    Current Consumption45 A at nominal load
    Device Short NameATS01
    Function Availableintegrated bypass
    MarkingCE
    Motor Starter Typesoft starter
    Operating Positionvertical +/- 10 degree
    Power Dissipation In W4 W at full load and at end of starting94 W in transient state
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typesoft starter
    Range Of ProductAltistart 01
    Shock Resistance15 gn 11 ms EN/IEC 60068-2-27
    Supply Frequency50...60 Hz - 5...5 %
    Sustainable PackagingYes
    Utilisation CategoryAC-53B EN/IEC 60947-4-2
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal45 mm
    Customs Code8537109170
    Persona Type NamesCharge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electromagnetic Compatibilityconducted and radiated emissions level B conforming to CISPR 11, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2EMC immunity level 3 conforming to EN 50082-1, EMC immunity level B conforming to EN 50082-2harmonics level 3 conforming to IEC 1000-3-2, harmonics level 3 conforming to IEC 1000-3-4immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3micro-cuts and voltage fluctuation conforming to IEC 61000-4-11voltage/current impulse level 3 conforming to IEC 61000-4-5
    Tightening Torque0.5-0.5 N.m, 1.9-2.5 N.m
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeATS01N2
    Deceleration Time Symbadjustable from 1 to 10 s
    Display Type1 LED Green)starter powered up1 LED Yellow)nominal voltage reached
    Icl Starter Rating9 A
    Motor Power Kw4 kW, 3 phase 380...415 V
    Network Frequency47.5...63 Hz
    Phase3 phase
    Power Range4-6 kW 380-440 V 3 phase
    Product Destinationasynchronous motors
    Product Specific Applicationsimple machine
    ReturnabilityYes
    Starting Torque30...80 % of starting torque of motor connected directly on the line supply
    Supply Voltage Limits342-456 V
    Type Of Startstart with voltage ramp
    Vibration Resistance1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    Height Nominal124 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-50 °C (with current derating of 2 % per °C)
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Relative Humidity5-95 % without condensation or dripping water EN/IEC 60068-2-3

    General Attributes

    Phase3 phase
    Range Of ProductAltistart 01
    Product Or Component Typesoft starter

    ETIM

    ETIM 8EC000640
    ETIM 10EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Typeopen collector logic LO1 end of starting signal, relay outputs R1A, R1C NO
    Discrete Output Current2 A DC-133 A AC-15
    Output Voltage<= power supply voltage, <= power supply voltage
    Discrete Output Voltage24 V 6...30 V) open collector logic

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logicpositive LI1, LI2, BOOST 13 V, >= 0.5 mA
    Discrete Input Voltage24...40 V
    Discrete Input Typelogic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm

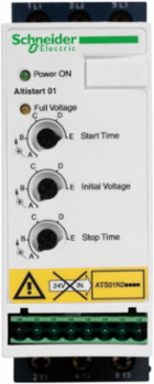

    Altistart 01 Soft Starter, 9A, 380-415V, 4 kW, IP20, 45 mm

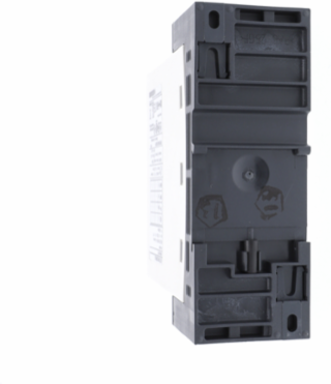

    Altistart 01 Soft Starter, 9A, 380-415V, 4 kW, IP20, 45 mm

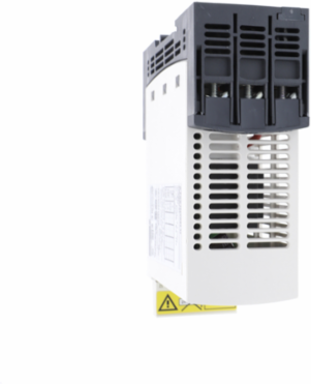

    Altistart 01 Soft Starter, 9A, 380-415V, 4 kW, IP20, 45 mm

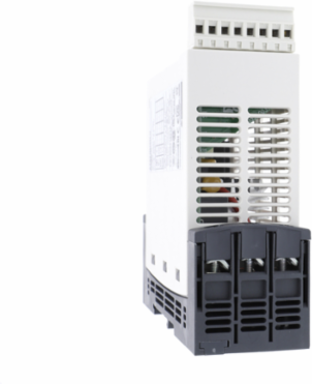

    Altistart 01 Soft Starter, 9A, 380-415V, 4 kW, IP20, 45 mm
