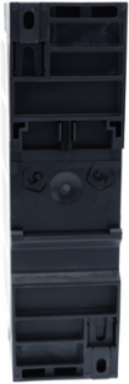

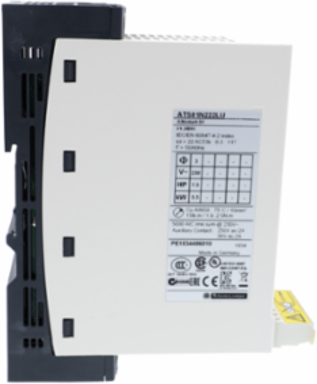

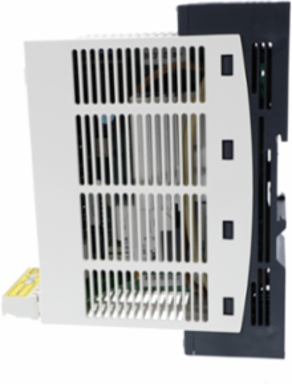

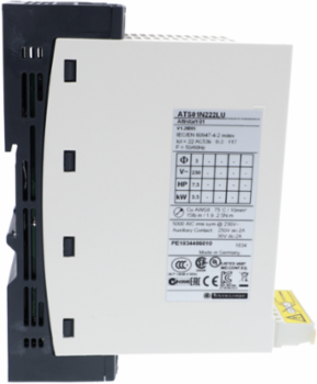

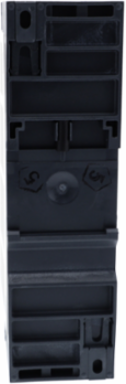

Schneider Electric ATS01N232QN Altistart 01 Soft Starter 32A 15kW 380-415V

  • MPN: ATS01N232QN
  • PPN: SCH-ATS01N232QN
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $757.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

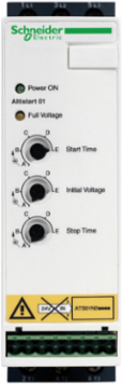

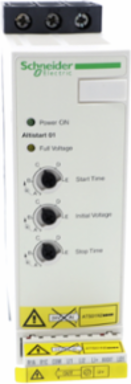

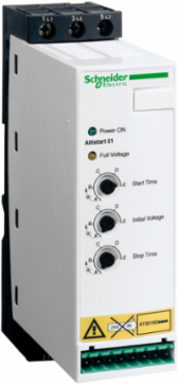

    This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 32A. This Altistart 01 can be used for a motor rated power up to 7.5kW or 10hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, United States
    Depth131 mm

    Complementary Attributes

    Maximum Switching Current
    relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive, relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
    Minimum Switching Current10 mA 6 V DC relay outputs

    Important Information Attributes

    Persona Type Ids
    BM9, EU, OM, OM8, SC, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Display Type
    1 LED Green)starter powered up, 1 LED Yellow)nominal voltage reached
    Electromagnetic Compatibility
    conducted and radiated emissions level B conforming to CISPR 11, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, EMC immunity level 3 conforming to EN 50082-1, EMC immunity level B conforming to EN 50082-2, harmonics level 3 conforming to IEC 1000-3-2, harmonics level 3 conforming to IEC 1000-3-4, immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, micro-cuts and voltage fluctuation conforming to IEC 61000-4-11, voltage/current impulse level 3 conforming to IEC 61000-4-5
    Starting Time
    adjustable from 1 to 10 s, 1 s / 50, 10 s / 5, 5 s / 10
    Vibration Resistance
    1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    ATS01N2
    Deceleration Time Symb
    adjustable from 1 to 10 s
    Function Available
    integrated bypass
    Marking
    CE
    Motor Starter Type
    soft starter
    Operating Position
    vertical +/- 10 degree
    Power Range
    15-25 kW 380-440 V 3 phase
    Product Destination
    asynchronous motors
    Product Specific Application
    simple machine
    Returnability
    Yes
    Starting Torque
    30...80 % of starting torque of motor connected directly on the line supply
    Supply Voltage Limits
    342-456 V
    Type Of Start
    start with voltage ramp
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    45 mm
    [Ue] Rated Operational Voltage
    380...415 V 15 kW
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Connectionscrew connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit, screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit, 4 mm screw clamp terminal - flexible with cable end 1 1...6 mm² AWG 10 power circuit4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - rigid with cable end 2 1...6 mm² AWG 10 power circuit, screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit, screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
    Power Dissipation In W4.5 W at full load and at end of starting, 324.5 W in transient state
    Tightening Torque0.5-0.5 N.m, 1.9-2.5 N.m
    Certificate AgencyC-tick, CSA, CCC, GOST, UL
    Local Publishable Date2026-03-25
    Stocking FlagY
    Device TypeSoft starter - Soft starter
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1927
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Assembly Stylewith heat sink
    Current Consumption160 A at nominal load
    Device Short NameATS01
    Icl Starter Rating32 A
    Motor Power Kw15 kW, 3 phase 380...415 V
    Network Frequency47.5...63 Hz
    Phase3 phase
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typesoft starter
    Range Of ProductAltistart 01
    Shock Resistance15 gn 11 ms EN/IEC 60068-2-27
    Supply Frequency50...60 Hz - 5...5 %
    Sustainable PackagingYes
    Utilisation CategoryAC-53B EN/IEC 60947-4-2
    Height Nominal154 mm
    [Uc] Control Circuit Voltagebuilt into the starter
    [Us] Rated Supply Voltage380...415 V - 10...10 %
    Package Weight(Lbs)671.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-50 °C (with current derating of 2 % per °C)
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Relative Humidity5-95 % without condensation or dripping water EN/IEC 60068-2-3

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altistart 01
    Product Or Component Typesoft starter

    ETIM

    ETIM 8
    EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Current
    2 A DC-13, 3 A AC-15
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Discrete Output Typeopen collector logic LO1 end of starting signal, relay outputs R1A, R1C NO
    Discrete Output Voltage24 V 6...30 V) open collector logic

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive LI1, LI2, BOOST 13 V, >= 0.5 mA
    Discrete Input Voltage
    24...40 V
    Discrete Input Typelogic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
