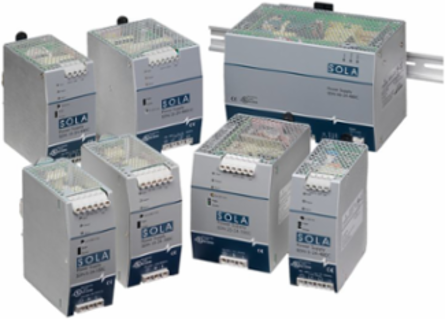

SolaHD SDN1024100C DIN Rail Power Supply 120-960 W, 12/24 V Adjustable, -40°C to +70°C, UL & ATEX Certified
- MPN: SDN1024100C
- PPN: SHD-SDN1024100C
CAD
$866.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High performance specifications and extensive international certifications ensure that the SDN-C is suitable for the most extreme environments, including hazardous locations and off-shore applications. Features like wide operating temperature range, power boost capability, and adjustable output voltage ensure reliable operation in the harshest industrial environments. Parallel operation, extensive LED diagnostics, and universal AC or DC input voltage simplify installation and maintenance. For added reliability, the SDN-C power supplies can be used with the SolaHD™ Redundancy modules to provide redundant power supply operation.
Features
- Extensive international hazardous location certifications, including Class I Zone 2, ATEX, IECEx, ExEAC. Hazardous location temperature code (T-Code) rating of T4
- International off-shore certifications, including ABS and DNV-GL
- PowerBoost ™ enables short duration overload capability, to start loads with high inrush current
- Dual output terminals for convenience in wiring
- Three LEDs provide extensive diagnostics. DC OK relay to provide diagnostic information to a PLC, controller, or monitoring system
- Universal AC and DC input voltages to accommodate global requirements
- Wide operating temperature range accommodates both extreme hot and extreme cold environments
- Active Power Factor Correction on most models
- Parallel operation capability standard
- Supports redundant power supply operation using optional SDN Redundancy modules
Documentation & Downloads
Specifications
Key Specifications
- UL Recognized Component, Haz. Loc.
- Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC
- IECEx Certified
- Ex ec nC IIC Gc
- Input Voltage Range
- 1-Phase: 100-240 Vac; 3-Phase: 380-480 Vac
- Output Power
- 120-960 W
- Overload Capability
- > 30.5 but < 33 Vdc, auto recovery
- Number of Phases
- Single and Three
ATEX DirectiveEx II 3 G, Ex ec nC IIC Gc
Hertz1-Phase: 43 - 67 Hz; 3-Phase: 50/60 Hz
Operating Temperature-40°C to +70°C
Output Voltage Range12 V (12-15 Vdc Adj.) or 24 V (23.5-28.5 Vdc Adj.)
Status Indicator3 status LEDs (Input, Output, Alarm)
MountingDIN TS35/7.5 or TS35/15
