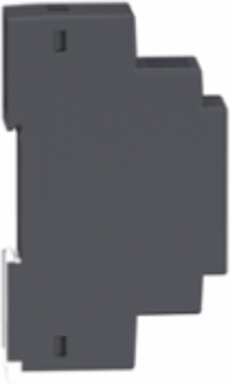

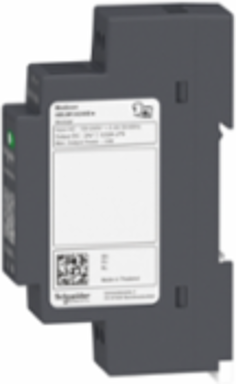

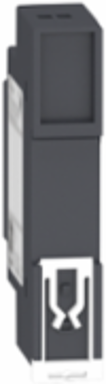

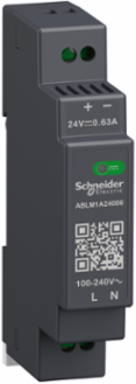

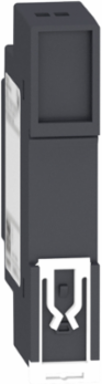

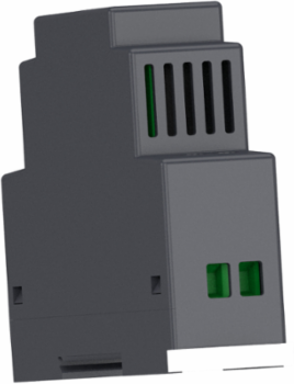

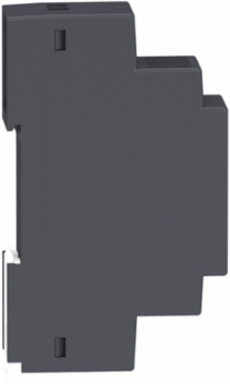

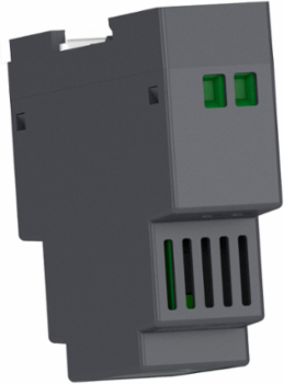

Schneider Electric ABLM1A24006 Regulated Power Supply 24V DC, 0.625A, 15W, DIN Rail Mounting
- MPN: ABLM1A24006
- PPN: SCH-ABLM1A24006
CAD
$98.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Regulated Power Supply 24V DC, 0.625A, 15W, DIN Rail Mounting
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, India, Singapore, United States

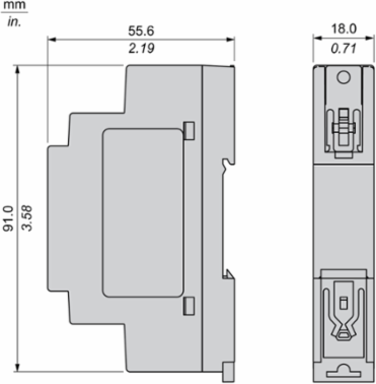

Depth55.6 mm
Complementary Attributes
- Maximum Leakage Current
- 0.25 mA 240 V AC
Rated Power In W15 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- < 0.4 A 115 V AC, < 0.4 A 115 V AC, < 0.4 A 115 V AC, < 0.25 A 230 V AC, < 0.25 A 230 V AC, < 0.25 A 230 V AC< 0.4 A 115 V AC, < 0.4 A 115 V AC, < 0.4 A 115 V AC, < 0.25 A 230 V AC, < 0.25 A 230 V AC
- Efficiency
- 81 % 115 V AC, 81 % 230 V AC
- Holding Time
- > 10 ms 115 V AC, > 10 ms 115 V AC, > 10 ms 115 V AC, > 60 ms 230 V AC, > 60 ms 230 V AC, > 60 ms 230 V AC> 10 ms 115 V AC, > 10 ms 115 V AC, > 10 ms 115 V AC, > 60 ms 230 V AC, > 60 ms 230 V AC
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail, panel mounting
- Response Time
- < 2 s, < 2 s
- Certificate Agency
- CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KCNEC class 2
- Meantime Between Failure [Mtbf]
- 3000000 h at 25 °C, full load, 1000000 h at 55 °C, 80 % load
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0997984353
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.6368117809
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2004005EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2010
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Dielectric Strength
- 3000 V AC input/output
- Electrical Shock Protection Class
- class II without PE connection
- Enclosure Material
- Plastic
- Load Capacitance
- 3000 µF
- Overvoltage Category
- II
- Power Factor
- 0.51 at 115 V AC0.40 at 230 V AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon Power Supply
- Service Life
- 10 year(s)
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- No
- Vibration Resistance
- 3 mm (f= 2-9 Hz) conforming to IEC 60721-3-310 m/s² (f= 9-200 Hz) conforming to IEC 60721-3-3
- Pep Code
- ENVPEP2004005EN
- Pep Verification Date
- 2020-03-01
- Psr Version
- PSR-0010-ed1.1-EN-2015 10 16
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Thailand
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 91 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 150.22
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 381.5
- Other Technical Guide Name
- ESXP1G003EN
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Earthing SystemTN, TT, IT
Electromagnetic Compatibilityimmunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11disturbing field emission conforming to EN 55016-2-3limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Line And Load Regulation< 0.5 % network in line, < 0.5 % network in line, < 1 % network 0 to 100 % load, < 1 % network 0 to 100 % load< 0.5 % network in line, < 0.5 % network in line, < 1 % network 0 to 100 % load, < 1 % network 0 to 100 % load
Residual Ripple< 100 mV, < 100 mV
SupplySELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Connections - Terminalsscrew connection 0.5...1.5 mm², 20 AWG...16 AWG) without wire end ferrule input/output, screw connection 0.5...1 mm², 20 AWG...18 AWG) with wire end ferrule input/output
Carbon Footprint Of The Distribution Phase [A4]0.0149668293, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0011878122, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]150 kg CO2 eq., 150.22
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Use Carbon Footprint150.22
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Efficiency At Full Load90...264 V AC
Electromagnetic Emissionconducted emissions IEC 61000-6-3radiated emissions IEC 61000-6-4
Inrush Current15 A 115 V30 A 230 V
Network Frequency Limits50-60 Hz
Power Dissipation In W3.5 W
Power Supply Typeregulated switch mode
Product Or Component Typepower supply
ReturnabilityYes
Shock Resistance150 m/s² 11 ms
Status Led1 LED (Green) output voltage
Total Lifecycle Carbon Footprint152 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo supply control circuits in industrial and building automation up to 6,5 W at 100% for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh306.6
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal18 mm
Package Weight(Lbs)116.000 g
Warranty (In Months)18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]381.5
Customs Code8504409510
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 151.9727648578
- Environmental Disclosure
- ENVPEP2004005EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2004005EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude< 6561.68 ft (2000 m) overvoltage category III, < 6561.68 ft (2000 m) overvoltage category III< 6561.68 ft (2000 m) overvoltage category III, < 6561.68 ft (2000 m) overvoltage category III2000 m...5000 m overvoltage category II
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2004005EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-03-01
Psr VersionPSR-0010-ed1.1-EN-2015 10 16
General Attributes
- Product Or Component Type
- power supply
Range Of ProductModicon Power Supply
ETIM
- ETIM 8
- EC002540
ETIM 9EC002540
Output Attributes
- Output Protection Type
- against overload and short-circuits, protection technology: automatic resetagainst over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
- Output Voltage
- 24 V DC

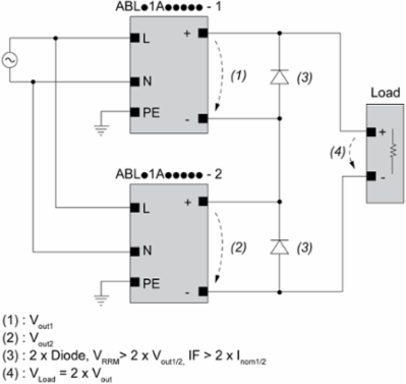

Output Couplingserial
Power Supply Output Current0.625 A
Input Attributes
- Efficiency
- 81 % 115 V AC, 81 % 230 V AC
- Input Voltage
- 100...240 V AC single phase, 100...240 V AC phase to phase
Input Protection Typeexternal protection (recommended) 2 A Curve C, integrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve B, external protection (recommended) 20 A Curve C, external protection (recommended) 2 A Curve B
Efficiency At Full Load90...264 V AC
