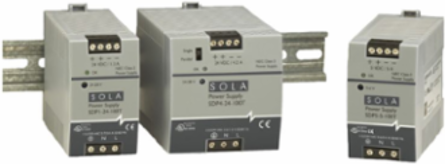

SolaHD SDP124100T Low Power DIN Rail Power Supply 25-100 Watts, 5-48 Vdc Output, Single Phase
- MPN: SDP124100T
- PPN: SHD-SDP124100T
CAD
$206.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SDP™ Low Power DIN Rail Series Power Supplies provide efficient power from 5 to 48 Vdc and up to 100 Watts in a choice of compact, lightweight DIN rail mounted units. These affordable power supplies offer the exceptional reliability and advanced features required for industrial use. PowerBoost™ overload circuitry starts up industrial loads that can cause ordinary power supplies to foldback or shutdown.
Features
- cULus, cRUus, CE, RoHS
- Ultra slim 15W footprint
- No tools required for mounting
- Adjustable output
- PowerBoost industrial overload design
- Overvoltage, short circuit protection
- Continuous short circuit protection
- Low output noise
- Screw terminal connections
Documentation & Downloads
Specifications
Key Specifications
- UL Recognized Component, Haz. Loc.
- Class I, Division 2, Groups A, B, C, D
- Overload Capacity
- SDP-T: > 30 Vdc, but < 33 Vdc, auto recovery. SDP-LT: > 26 Vdc, but < 27.2 Vdc, auto recovery. SDP-RT: > 30 Vdc, but < 33 Vdc, auto recovery
- Operating Temperature
- -10°C to +70°C full power
- Output Voltage Range
- 5, 6, 10, 12, 15, 24, 28, 48, 56 Vdc
- Number of Phases
- Single
Input Voltage Range85-264 Vac, 90-375 Vdc
Hertz47-63 Hz
Output Power25-100 W
Status IndicatorGreen LED OK
MountingDIN TS35/7.5 or TS35/15
