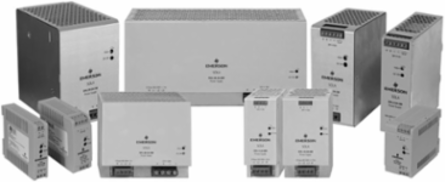

SolaHD SVL424100 Power Supply - 15-480 Watts, 5/12/24/48 Vdc, DIN Rail Mount, Class I Certified
- MPN: SVL424100
- PPN: SHD-SVL424100
CAD
$120.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SVL Series power supplies are perfect for high volume, controlled environment applications where essential features are the only requirement. The DIN rail mounting capability provides quicker and easier installation while allowing for design flexibility. Some models are certified for Class I, Division 2 hazardous locations. Power supplies with single-phase input power supplies range from 15 to 480 Watts in 5, 12, 24 and 48 Volt combinations. Three-phase input power supplies are available with 24 Vdc output from 120 to 960 Watts.
Features
- cULus, cRUus, CE
- Universal input, single-phase and three-phase models
- Short circuit, over voltage, overload and over temperature protection
- Power factor correction
- Convection cooling
- Select models are Class I, Division 2 certified for hazardous locations
- LED to indicate DC OK and protection diagnostics
- DC OK Relay for single-phase models 120 Watt and larger
Documentation & Downloads
Specifications
Additional
- Output Power
- Single phase: 15-480 Watts; Three phase: 120-960 Watts
- Input Voltage Range
- Single phase: 85-264 Vac; Three phase: 3 x 320-600 Vac nominal, 3 x 400-500 Vac nominal
- Protection Circuit
- Hiccup Mode
- Mounting
- DIN Rail
- Warranty
- Two year limited warranty
Output Voltage Range5, 12, 24, 48 Vdc (Three phase: 24 Vdc only)
Input Frequency50/60 Hz
Operating Temperature-20B0C to +70B0C
Diagnostic IndicatorSteady Green LED: DC OK
