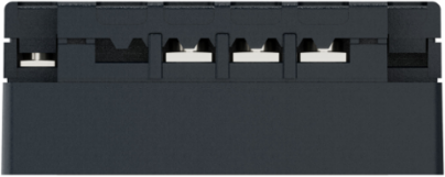

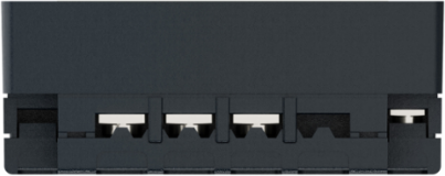

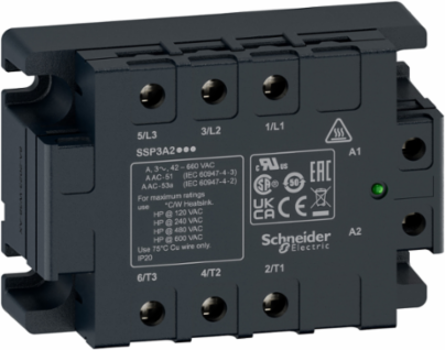

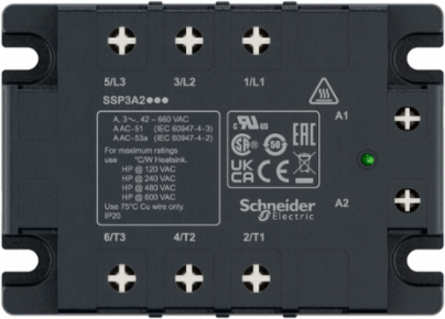

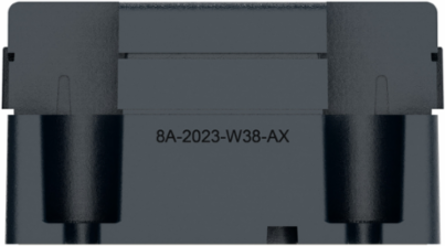

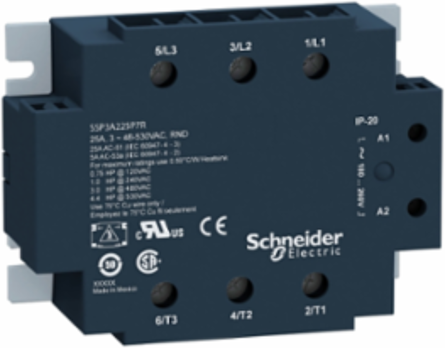

Schneider Electric SSP3A225BDT three phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 42 to 660V AC
Schneider Electric SSP3A225BDT three phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 42 to 660V AC
- MPN: SSP3A225BDT
- PPN: SCH-SSP3A225BDT
- UNSPSC: 39122333
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$282.43/ EA
Description
This Harmony SSP solid state panel mount 3-phase relay is rated 25A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 530V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Features
- Innovative and compact solution for industrial applications
- Fast and precision control, high switching frequency
- Reliable and silent switching
- Robust in harsh environments
- Resistance to shock and vibration
- IP20 degree of protection
- UL 94-V0 flame retardance
- Wide range of operating temperature from -40°C to 80°C
Specifications
Conformance Attributes
- Product Certifications
- CE, CSA, EAC, UL, UKCA
StandardsIEC/EN 62314, IEC/EN 60947-4-2, IEC/EN 60947-4-3, UL 60947-4-2, C22.2 No. 14
Complementary Attributes
- Maximum Horse Power Rating
- 0.75 hp 40 °C 120 V AC, 1 hp 40 °C 240 V AC, 3 hp 40 °C 480 V AC, 5 hp 40 °C 600 V AC
- Maximum Voltage Drop
- <1.4 V on-state, <1.4 V on-state, <1.4 V on-state, <1.4 V on-state
- Maximum Leakage Current
- 3 mA off-state
- Minimum Switching Voltage
- 4 V DC turn-on
Maximum I T For Fusing380 A².s for 10 ms at 50 Hz, 370 A².s for 8.3 ms at 60 Hz
Line Rated Current25 A
Maximum Switching Voltage1 V DC turn-off
Absolute Maximum Voltage1200 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 4 kV AC for input/output, 4 kV AC for input or output to case
- Insulation Resistance
- >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC
- Response Time
- 8.33 ms (turn-on), 8.33 ms (turn-off)
- Uc Control Circuit Voltage2
- 4...32 V DC, 4...32 V
- Carbon Footprint Of The Distribution Phase A4
- 0.0347068478, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0022130699, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 2 601 kg CO2 eq., 2600.9342430238
- Connections Terminals3
- screw terminals 1 x 0.2...1 x 2.5 mm², AWG 24...AWG 14) input, screw terminals 1 x 1.5...1 x 10 mm², AWG 16...AWG 8) output
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Control Type
- without test button
- Device Short Name
- SSP
- Flame Retardance
- V0 conforming to UL 94
- Local Signalling
- LED, green input
- Mounting Support
- panel
- Package Weight Lbs
- 377.000 g
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment

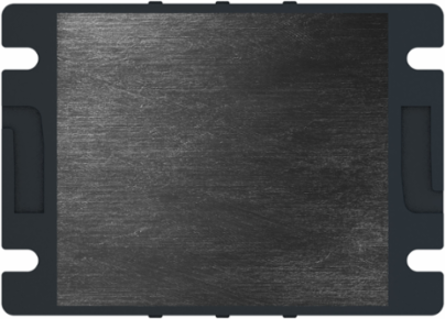

- thermal pad
- Returnability
- Yes
- Thermal Resistance
- 0.24 °C/W
- Medium Desc
- three phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 42 to 660V AC
- Product Kit Identifier
- N
- Database Version
- 2017-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Mexico
- Energy Model Use B6 2
- Electricity mix; AC; < 1kV; EU-27
- Protection Device Type
- TVS
- Uc Control Circuit Voltage5
- 4...32 V DC
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2, conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5, electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4, immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11, immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11, immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11, immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11, electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3, radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1, conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1
Motor Power KW0.55 kW 40-40 °C 120 V AC, 0.75 kW 40-40 °C 240 V AC, 2.2 kW 40-40 °C 480 V AC, 3.7 kW 40-40 °C 600 V AC
Tightening Torque1.2 N.m for input, 2.5 N.m for output
Uimp Rated Impulse Withstand Voltage20.8 kV for input to case, 6 kV for input/output circuit, 6 kV for input/output to case
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0579147431
Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 1.4182971838
Connections Terminalsscrew terminals 1 x 0.2...1 x 2.5 mm², AWG 24...AWG 14) input, screw terminals 1 x 1.5...1 x 10 mm², AWG 16...AWG 8) output, screw connectors
Uimp Rated Impulse Withstand Voltage50.8 kV for input to case, 6 kV for input/output circuit, 6 kV for input/output to case
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Cos Phi0.5-0.5 (with maximum load)
DV DT500 V/µs off-state at maximum voltage
Load Current0.15-25 A
MarkingCE
Overvoltage CategoryIII
Phase3 phase
Product Or Component Typepanel mount relay
Range Of ProductHarmony Solid State Relays
Sustainable PackagingYes
Total Lifecycle Carbon Footprint2 602 kg CO2 eq.
Stocking FlagN
Pep CodeENVPEP1307070_V2
Pep Verification Date2017-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunité (unit)
Energy Model Installation A5 2Electricity mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity mix; AC; < 1kV; EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-80 °C
- Environmental Disclosure
- ENVPEP1307070_V2
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2017-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Lead FreeYes
Carbon Footprint2602.4473748685
Ambient Air Temperature For Storage-40-125 °C
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1307070_V2
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Provided Equipment
- thermal pad
Product Or Component Typepanel mount relay
Range Of ProductHarmony Solid State Relays
Output Attributes
- Output Voltage
- 42...660 V AC
- Output Switching Mode
- zero voltage switching
Solid State Output Typezero voltage switching
Surge Protection And Filtering Attributes
- Surge Current
- 275 A 20 ms, 300 A 16.6 ms
Input Attributes
- Cos Phi
- 0.5-0.5 (with maximum load)
Input Current Limits15-35 mA
Specifications
- Country of Origin
- Malta, Mexico

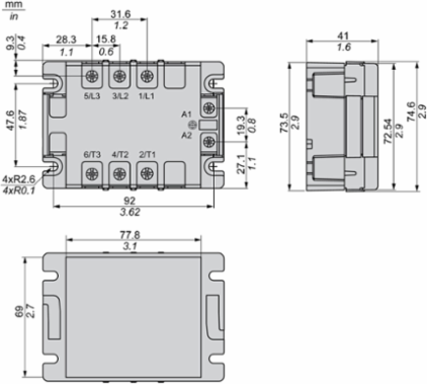

Depth41 mm
Overview Attributes
- Device Presentation
- complete product
