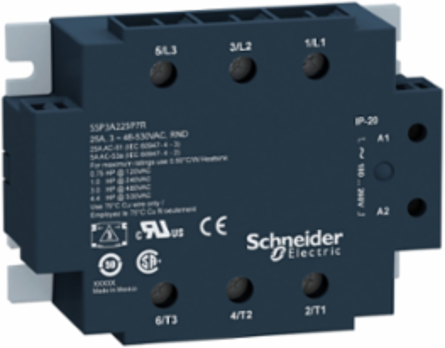

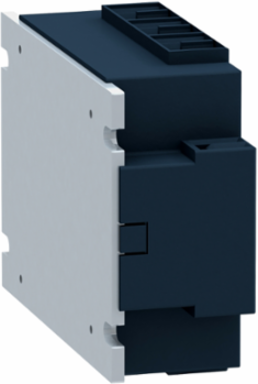

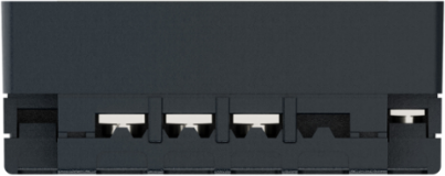

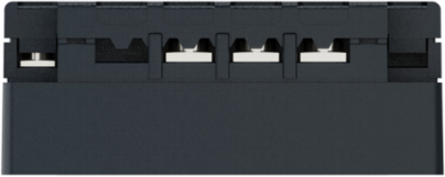

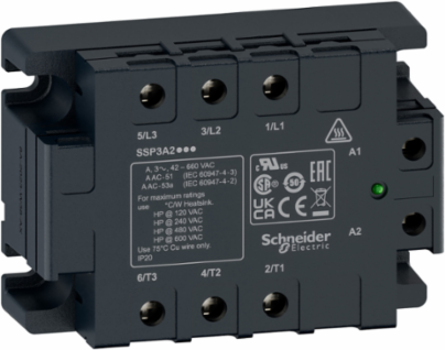

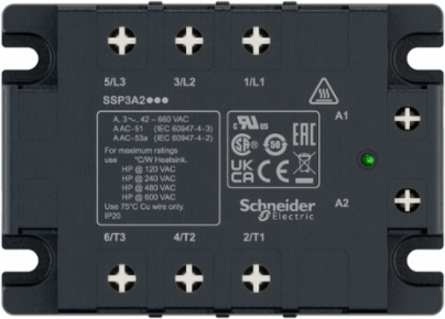

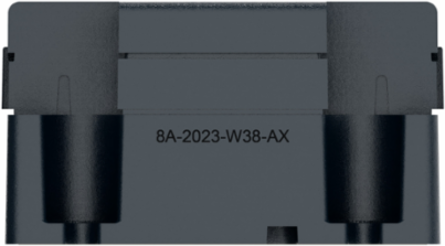

Schneider Electric SSP3A250BDRT three phase relay, Harmony Solid State Relays, 50A, panel mount, random switching, thermal pad, input 4 to 32V DC, output 42 to 660V AC

  • MPN: SSP3A250BDRT
  • PPN: SCH-SSP3A250BDRT
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $302.17

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony SSP solid state panel mount 3-phase relay is rated 50A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 530V AC with random voltage switching, ideal for inductive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Malta, Mexico

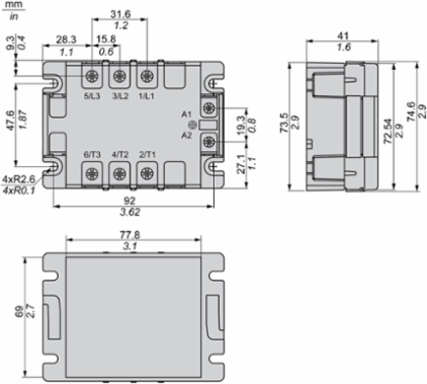

    Depth41 mm

    Complementary Attributes

    Maximum Voltage Drop
    <1.6 V on-state, <1.6 V on-state<1.6 V on-state, <1.6 V on-state
    Line Rated Current
    50 A
    Maximum Leakage Current
    3 mA off-state
    Minimum Switching Voltage
    4 V DC turn-on
    Absolute Maximum Voltage1200 V
    Maximum Horse Power Rating1.5 hp 40 °C 120 V AC3 hp 40 °C 240 V AC7.5 hp 40 °C 480 V AC10 hp 40 °C 600 V AC
    Maximum Switching Voltage1 V DC turn-off
    Rated Current50 A

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Dielectric Strength
    4 kV AC for input/output, 4 kV AC for input or output to case
    Insulation Resistance
    >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC>= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC
    Certificate Agency
    CE, CSA, EAC, UL, UKCA
    [Uimp] Rated Impulse Withstand Voltage
    0.8 kV for input to case6 kV for input/output circuit, 6 kV for input/output to case
    Maximum I²T For Fusing
    2520 A².s for 10 ms at 50 Hz, 2320 A².s for 8.3 ms at 60 Hz
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.058345336, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.4288421443
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Cos Phi
    0.5-0.5 (with maximum load)
    Flame Retardance
    V0 conforming to UL 94
    Local Signalling
    LED, green input
    Motor Power Kw
    1.1 kW 40-40 °C 120 V AC2.2 kW 40-40 °C 240 V AC5.5 kW 40-40 °C 480 V AC7.5 kW 40-40 °C 600 V AC
    Overvoltage Category
    III
    Product Availability
    Stock - Normally stocked in distribution facility
    Protection Device Type
    TVS
    Range Of Product
    Harmony Solid State Relays
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Tightening Torque
    1.2 N.m for input2.5 N.m for output
    Output Voltage 35
    42...660 V AC
    Database Version
    2017-03
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime In Kwh
    10488.495
    Energy Model - Installation [A5]
    Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Height Nominal
    74.6 mm
    Dv/Dt
    500 V/µs off-state at maximum voltage
    Package Weight(Lbs)
    271.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electromagnetic Compatibilityelectrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5, electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4, immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11, immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11, electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1
    Control Circuit Voltage4...32 V
    [Uc] Control Circuit VoltageDC, 4...32 V
    Connections - Terminalsscrew terminals 1 x 0.2...1 x 2.5 mm², 24 AWG...14 AWG) input, screw terminals 1 x 1.5...1 x 10 mm², 16 AWG...8 AWG) output, screw connectors
    Carbon Footprint Of The Distribution Phase [A4]0.0349648913, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.002229524
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]5 139 kg CO2 eq., 5138.7062430238
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2504009EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Control Typewithout test button
    Device Short NameSSP
    Load Current0.4-50 A
    MarkingCE
    Mounting Supportpanel
    Phase3 phase
    Product Or Component Typepanel mount relay

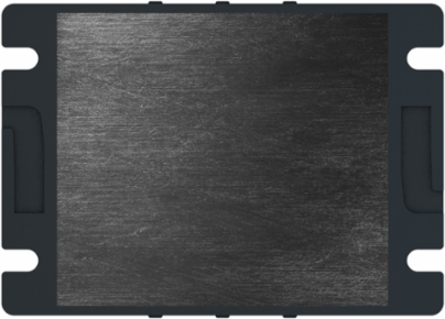

    Provided Equipmentthermal pad
    Response Time8.33 ms (turn-off)0.1 ms (turn-on)
    Software VersionEIME v5.6
    Thermal Resistance0.15 °C/W
    Total Lifecycle Carbon Footprint5 140 kg CO2 eq.
    Pep CodeENVPEP2504009EN
    Pep Verification Date2017-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
    Energy Model - Use [B6]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %29
    Width Nominal104 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490075

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-80 °C, -40-80 °C
    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2504009EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2017-05-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-40-125 °C, -40-125 °C
    Recycled Metal Content At Cr Level0 %
    Lead FreeYes
    Carbon Footprint5140.2306249193
    Environmental DisclosureENVPEP2504009EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2504009EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Phase
    3 phase
    Provided Equipment
    thermal pad
    Product Or Component Typepanel mount relay
    Range Of ProductHarmony Solid State Relays
