Schneider Electric SSP3A225BDRT three phase relay, Harmony Solid State Relays, 25A, panel mount, random switching, thermal pad, input 4 to 32V DC, output 42 to 660V AC
- MPN: SSP3A225BDRT
- PPN: SCH-SSP3A225BDRT
CAD
$284.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

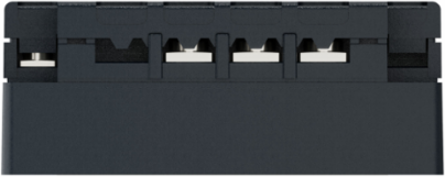

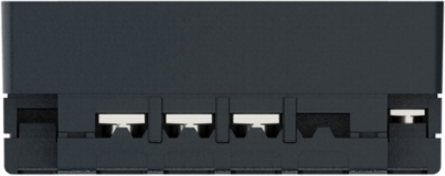

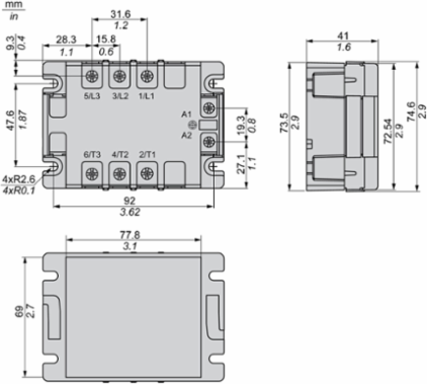

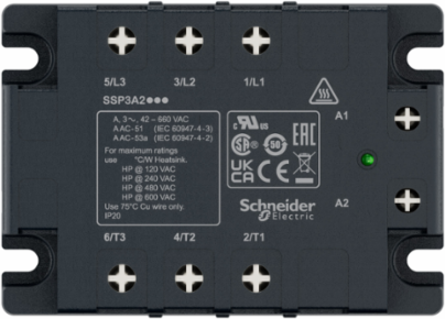

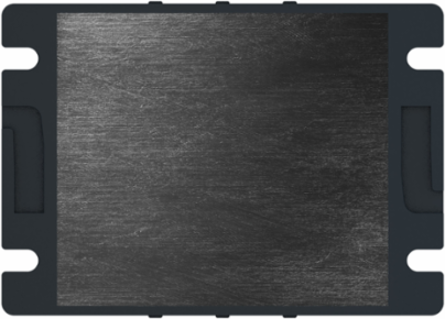

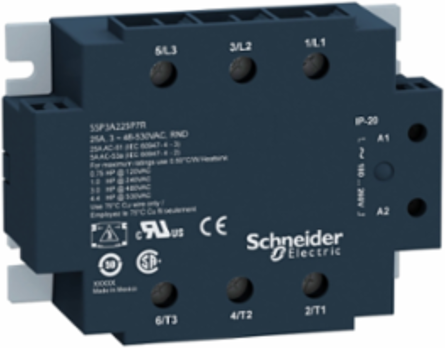

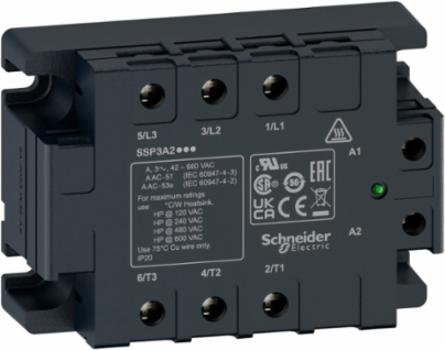

This Harmony SSP solid state panel mount 3-phase relay is rated 25A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 530V AC with random voltage switching, ideal for inductive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Malta, Mexico
Depth41 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.4 V on-state, <1.4 V on-state<1.4 V on-state, <1.4 V on-state
- Line Rated Current
- 25 A
- Maximum Leakage Current
- 3 mA off-state
- Minimum Switching Voltage
- 4 V DC turn-on
Absolute Maximum Voltage1200 V
Maximum Horse Power Rating0.75 hp 40 °C 120 V AC1 hp 40 °C 240 V AC3 hp 40 °C 480 V AC5 hp 40 °C 600 V AC
Maximum Switching Voltage1 V DC turn-off
Rated Current25 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 4 kV AC for input/output, 4 kV AC for input or output to case
- Insulation Resistance
- >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC>= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC, >= 1000 MOhm at 500 V DC
- Certificate Agency
- CE, CSA, EAC, UL, UKCA
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV for input to case6 kV for input/output circuit, 6 kV for input/output to case
- Maximum I²T For Fusing
- 380 A².s for 10 ms at 50 Hz, 370 A².s for 8.3 ms at 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0574841502, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.4077522233
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cos Phi
- 0.5-0.5 (with maximum load)
- Flame Retardance
- V0 conforming to UL 94
- Local Signalling
- LED, green input
- Motor Power Kw
- 0.55 kW 40-40 °C 120 V AC0.75 kW 40-40 °C 240 V AC2.2 kW 40-40 °C 480 V AC3.7 kW 40-40 °C 600 V AC
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Device Type
- TVS
- Range Of Product
- Harmony Solid State Relays
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Tightening Torque
- 1.2 N.m for input2.5 N.m for output
- Output Voltage 35
- 42...660 V AC
- Database Version
- 2017-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 5308.707
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 74.6 mm
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Package Weight(Lbs)
- 387.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5, electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4, immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11, immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11, electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1
Control Circuit Voltage4...32 V
[Uc] Control Circuit VoltageDC, 4...32 V
Connections - Terminalsscrew terminals 1 x 0.2...1 x 2.5 mm², 24 AWG...14 AWG) input, screw terminals 1 x 1.5...1 x 10 mm², 16 AWG...8 AWG) output, screw connectors
Carbon Footprint Of The Distribution Phase [A4]0.0344488043, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0021966159
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 601 kg CO2 eq., 2600.9342430238
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2504009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Control Typewithout test button
Device Short NameSSP
Load Current0.15-25 A
MarkingCE
Mounting Supportpanel
Phase3 phase
Product Or Component Typepanel mount relay
Provided Equipmentthermal pad
Response Time8.33 ms (turn-off)0.1 ms (turn-on)
Software VersionEIME v5.6
Thermal Resistance0.24 °C/W
Total Lifecycle Carbon Footprint2 602 kg CO2 eq.
Pep CodeENVPEP2504009EN
Pep Verification Date2017-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %29
Width Nominal104 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2504009EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2017-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-125 °C, -40-125 °C
Recycled Metal Content At Cr Level0 %
Lead FreeYes
Carbon Footprint2602.4361248176
Environmental DisclosureENVPEP2504009EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2504009EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Provided Equipment
- thermal pad
Product Or Component Typepanel mount relay
Range Of ProductHarmony Solid State Relays
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Output Switching Mode
- random voltage switching, random voltage switching
- Solid State Output Type
- random voltage switching
Output Voltage42...660 V AC
Surge Protection And Filtering Attributes
- Surge Current
- 275 A 20 ms300 A 16.6 ms
Input Attributes
- Cos Phi
- 0.5-0.5 (with maximum load)
Input Current Limits15-35 mA
Overview Attributes
- Device Presentation
- complete product
